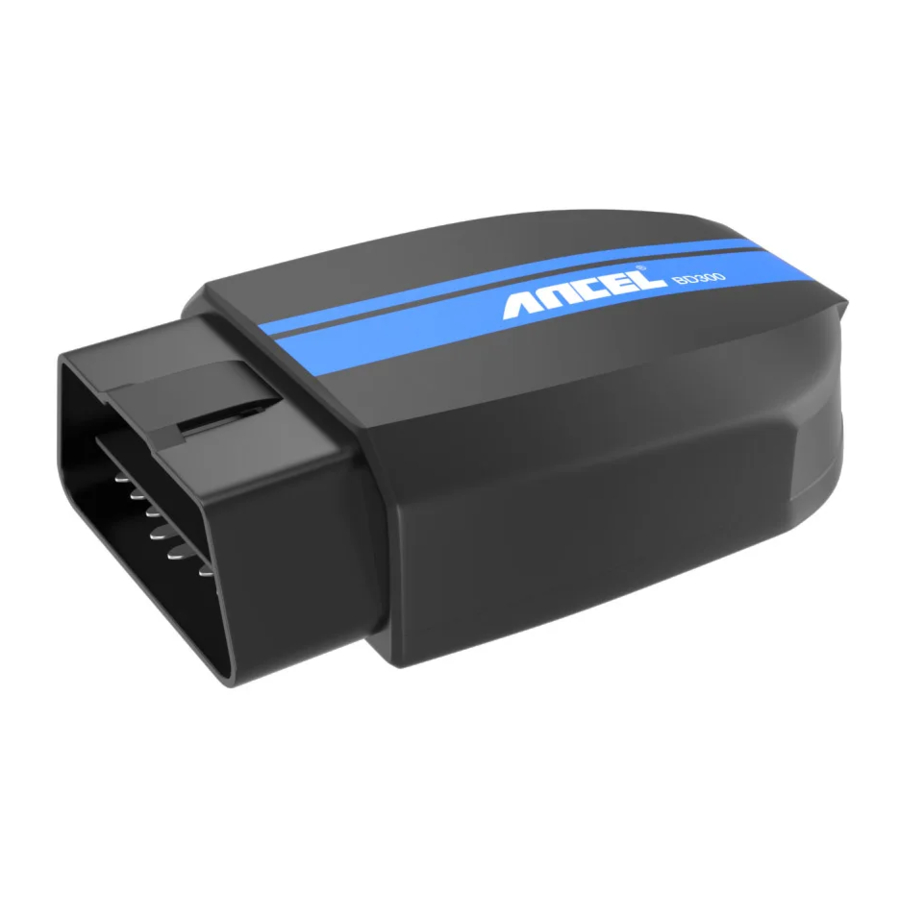

ANCEL BD300 - Bluetooth Scan Tool Manual

OBD INTERFACE POSITIONS

For different vehicles, the position of the DLC may be different, please refer to the following possible positions:

OPERATION DIAGRAM

BLUETOOTH CONNECTION

Turn on Bluetooth -Start the app - Automatic device connection—Connected. Image 1 is not connected, image 2 is connected.

START USING YOUR DEVICE

After the Bluetooth connection, the diagnostic software will be launched if your vehicle supports it. You can use all functions of the device, e.g. the standard OBDII function, BMW diagnostics and other functions.

FEEDBACK

You can send us feedback if you encounter any problems while using it. To do so, fill out and submit the feedback form.

SOFTWARE UPGRADE AND FIRMWARE UPGRADE

1. BD300- APP Software Upgrade:
   Delete the program APP directly, and then download the latest software again.(View the latest software version: Open app---settings---about us).
2. BD300- APP Firmware update:
   1. Open the app---settings----device-settings----firmware-upgrade-currently the latest version ***(no update required).
   2. Open the app---settings----device-settings----firmware-upgrade--current version and ask for the latest version---- click the menu button 'Upgrade'-- firmware upgrade is successful (update required).

Product parameters
Operating voltage: DC8-18V
Operating current: <24mA@DC12V
Bluetooth frequency: 2.4GHz
Bluetooth version: Bluetooth 5.0
Dimensions: 77mmx23mmx47mm
Weight: NW: 0.04kg (0.088lb)
Working temperature: -30 ºC -70º C (-22 ºF 158º F)
Storage temperature: -40 ºC —85ºC(-40 OF 185 ºF )
