ANCEL AS100 - Engine Code Reader Scanner Manual

Introduction

It's used to check engine of all vehicles that comply with OBDII, 12 V voltage with standardized 16-Pin connector.

Location of the Data Link Connector (DLC):
The DLC is usually located 12 inches from the center of the instrument panel (dash), under or around the driver's side for most vehicles.

PRODUCT INFORMATION

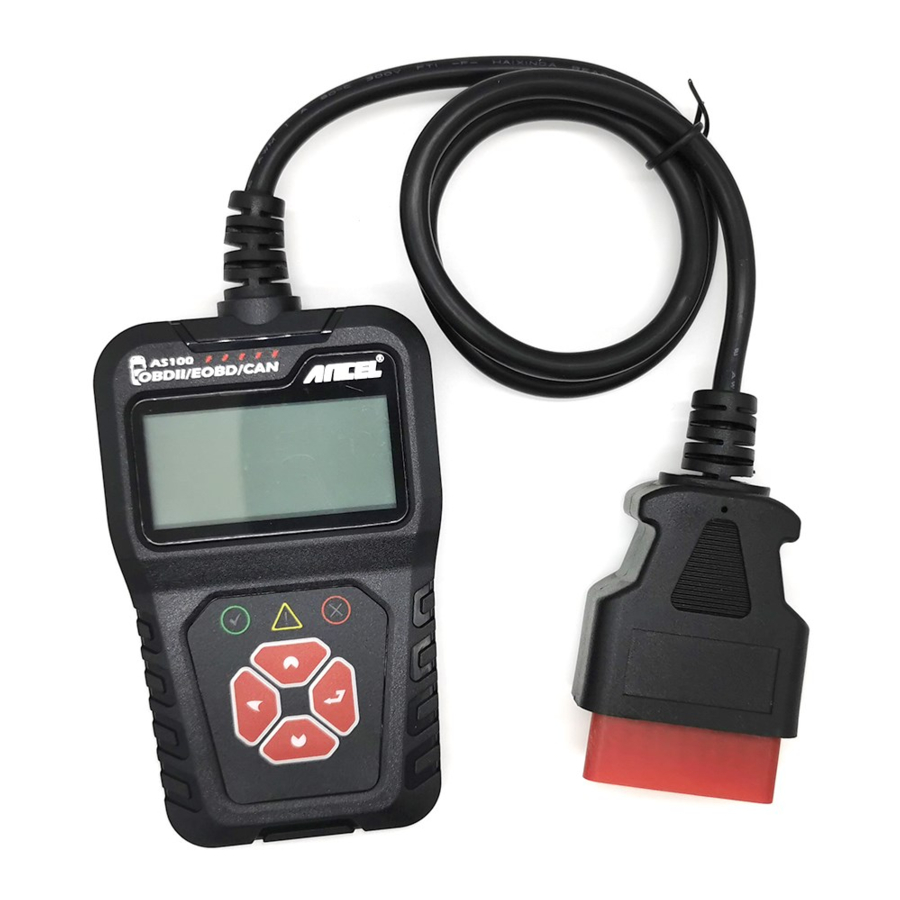

Tool Description

1. LCD DISPLAY
2. Green LED: indicates correct engine operation, no DTC.
3. Yellow LED: indicates a possible problem. Some diagnostics could not be performed and/or a DTC is pending.
4. Red LED: indicates a problem on engine. The" MIL (Malfunction Indicator Light)" may be on.
5. BACK BUTTON
6. OBDII CONNECTOR
7. UP BUTTON
8. OK BUTTON
9. DOWN BUTTON

Product Specifications

Function Description

1. Dual-system diagnostic, optional engine and transmission.
2. Quickly indicate engine faults, with green / yellow / red LED indicators as fault lights.
3. Read or clear the engine fault code and view DTC definition.
4. Display of sensor data stream information, supporting 249 types of parameters.
5. View freeze frame data and I/M status information.
6. Read vehicle information:
   vehicle identification number (VIN),
7. calibration identification
   calibration verification number(CVNs)
8. Multi-language.

INSTRUCTlONS

Dual-system Selection

Start the car's engine and plug the OBDII connector into the carls OBDII interface.
Enter the main interface; click the "OK" button to start scanning the vehicle (DLC) system, it is detected that the single system enters the engine system by default; enter the dual system selection menu when dual systems are detected, and select the system to be detected.

1. $ 7E8: Engine: Engine system.
2. $ 7E9: A/ T: Transmission system.

Diagnostic Menu

1. Read Codes: Read the diagnostic trouble code(DTC) in the engine or transmission system and display the standard definition.
2. Erase Codes: Clear all DTCs in the system.
3. Data Stream: Read and display all supported sensor data, up to 249 types of parameters.
4. Freeze Frame: The freeze frame data records the vehicle operating status information (fault code, vehicle speed, RPM, water temperature, etc.) at the moment when an emission-related fault occurs.
5. I/M Readiness: I/ M Readiness function is used to check the operations of the Emission System on OBD2 compliant vehicles.
   Some latest vehicle models may support two types of I/ M Readiness tests:
   1. Since DTCs Cleared - indicates status of the monitors since the DTCs are erased.
   2. This Drive Cycle - indicates status of monitors since the beginning of the current drive cycle.
      "OK ": completed diagnostic testing
      " INC ": not completed diagnostic testing
      "N/A ': not supported '
6. Vehicle Information:
   Review vehicle identification number (VIN),
   calibration identification number(IDs),
   calibration verification number(CVNs)


Setup

Enter the main interface; click the "UP" button to enter the Setup interface.

1. Language: The factory default English, other languages can be manually selected.
2. Unit of measure: Supports metric and imperial units, factory default metric.
3. Contrast: Backlight contrast is adjustable, factory default 25%.
