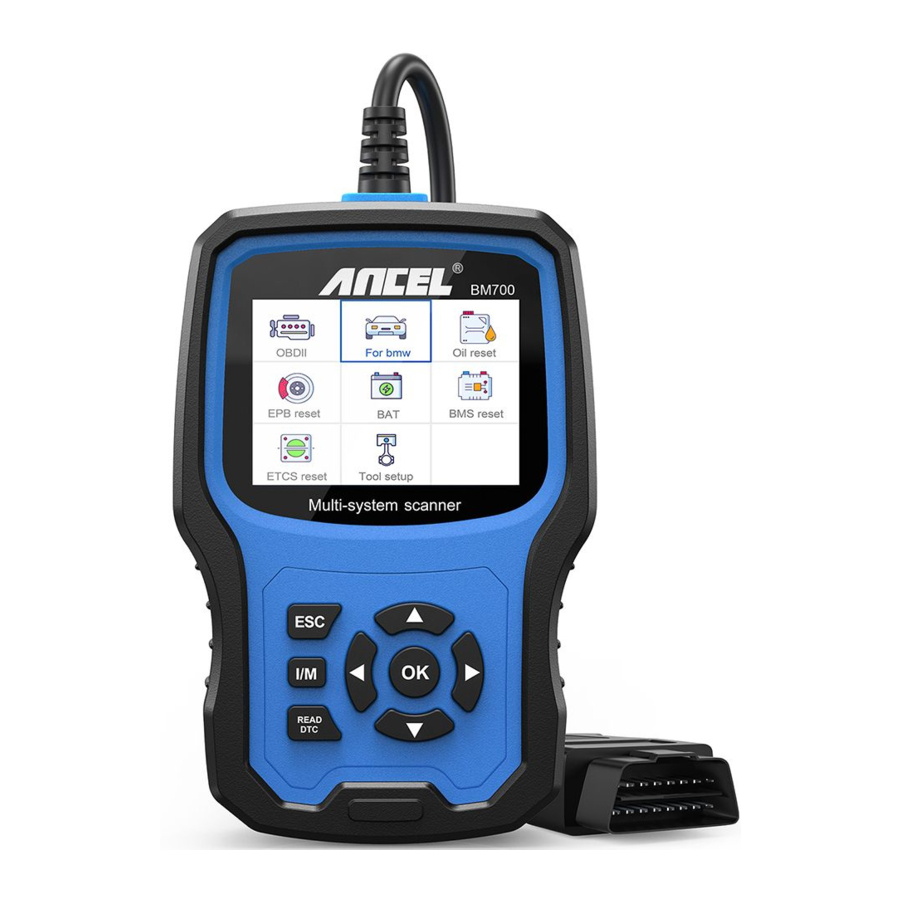

ANCEL BM700 - Diagnostic Tool

ABOUT THE PRODUCT

Coverage

  1. BM700 supports for BMW, Mini and Rolls-Royce brand cars. It works on all the systems such as engine, transmission, ABS and airbag etc.
  2. Supports OBDII/EOBD Modes of operation

Product specification

  • 2 8" 240x320 pixels LCD screen
  • Operating Voltage: 8V-18V
  • Operating Temperature: 0°C-60°C(32-140°F)
  • Storage Temperature: -20°C-70°C(4-158°F)

Appearance and buttons description

Appearance and buttons description

  1. LCD SCREEN - Indicates test results. Backlit, 320 x 240 pixels display
  2. [OK] BUTTON - Confirms a selection (or action) from a menu
  3. ESC BUTTON - Cancels a selection (or action) from a menu or returns to the menu.
  4. [LEFT] SCROLL BUTTON - In the menu mode through the menu and sub menu move to the left, when rolling in a data interface, use the left button can be moved to the last screen.
  5. [RIGHT] SCROLL BUTTON - In the menu mode through the menu and sub menu item move to the right, when rolling in the data interface, use the right button can be moved to the next screen
  6. [UP] SCROLL BUTTON - In the menu mode through the menu and sub menu item moving up. When retrieving data for more than a screen by moving up the screen to the previous screen for more data
  7. [DOWN] SCROLL BUTTON - In the menu mode through the menu and sub menu item moves down. When retrieving data more than one screen, by moving down the screen to the next screen for more data
  8. OBD-16PIN CONNECTOR - Connects the scan tool to the vehicle's Data Link Connector (DLC).
  9. [I/M] BUTTON - Quick State Emissions readiness check and drive cycle verification
    I/M Quick State Emissions readiness check

Remarks:
MIL Yellow - Dashboard
MIL ON MIL Gray -Dashboard MIL OFF
-not support
-complete
-not complete

  1. [READ DTC] BUTTON-Quick read the vehicle's fault codes.

OPERATION INSTRUCTIONS

Connect the Device

  1. Turn the ignition on.
  2. Locate the vehicle's 16-pin Data Link Connector (DLC).

Product Features

For bmw

  1. Choose [For bmw] and then select [For BMW Series Diagnose]. The screen will show all car series. As follows:
    Product Features - For BMW series diagnose

Product Features - Example of BMW series diagnose
For example: Choose [For 5 Series] and select [G38(2017-Present)], it displays as above:

Basic Functions

Product Features - Basic Functions Menu
Choose [Basic Functions] and it displays as above:

System scan is to scan all vehicle systems.
Manual Select is to display all possible systems, select one of the systems to diagnosis.

Product Features - Manual Select Menu
Choose [Manual Select] and it displays as above:

Product Features - ECM Engine Control Module Menu
For example: Choose [ECM Engine Control Module] and it displays as above:

Version Information
Choose [Version Information] and it displays as follows:
Basic Functions - Checking Version Information

Read Fault Codes
Choose [Read Fault Codes]. Press up or down button to check each fault code as follows:
Basic Functions - Read Fault Codes

Erase Fault Codes
Choose [Erase Fault Codes] then press [OK] button as follows:
Erase Fault Codes - Step 1

Erase Fault Codes - Step 2
You need to press [OK] again to clear the fault codes, or you can press [ESC] button to give up clearing fault codes, as above:

Read Datastream
Choose [Read Datastream] then press [OK] button as follows:
Read Datastream - Step 1 - Choose Read Datastream

Read Datastream - Step 2
Choose [Select Items] and press [OK] button as above:

Press [LEFT] and [RIGHT] buttons to page
Press [UP] and [DOWN] buttons to select one by one
Press [OK] button to select the Datastream
Press [ESC] button to read Datastream

Special Functions

Product Features - Special Functions
Choose [Special Functions] and it displays as above:

CBS Functions
Choose [CBS Function (Service Function)] and it displays as follows:
Special Functions - CBS Functions

[CBS reset 1]: Engine oil, Spark plugs, Front brakes, Rear brakes, Coolant, Diesel particle filter, Brake fluid, Micro filter, Vehicle inspection, Exhaust emission inspection, Vehicle check.
[CBS reset 2]: Oil service, Inspection, Time interval, Correct follow-on service, Display service interval status.
[CBS correction]: Engine oil, Spark plugs, Front brakes, Rear brakes, Coolant, Diesel particle filter, Brake fluid, Micro filter, Vehicle inspection, Exhaust emission inspection, Vehicle check.

ECM Engine Control Module
Choose [ECM Engine Control Module] and it displays as follows:
Special Functions - ECM Engine Control Module Menu

Battery Management
Choose [Battery Management] and it displays as follows:
Special Functions - Battery Management Menu

  1. Use the up or down button to select the (2) option and press the [OK] button to achieve register battery replacement and display the following menu:
    Setting the Battery Management - Step 1
  2. Use the up or down button to select the (1) option and press the [0K] button to display the following menu:
    Setting the Battery Management - Step 2

EPB Electronic Parking Brake
Choose [EPB Electronic Parking brake] and it displays as follows:
Setting the EPB Electronic Parking Brake

Steering-angle sensor
Choose [Steering-angle sensor] and it displays as follows:
Special Functions - Setting Steering-angle sensor

Note: The special features of each model are different, please according to the actual operation.

Erase All Systems Fault Codes
Choose [Erase All Systems Fault Codes] and it displays as follows:
Erase All Systems Fault Codes - Step 1

Erase All Systems Fault Codes - Step 2
You need to press [OK] again to clear the fault codes. Or you can press [ESC] button to give up clearing fault codes. It shows as the above after clearing the fault codes

Note: For BMW car after 2003.

OBDll System

Read Codes

  1. Use the UP/DOWN scroll button to select Read Codes from the Diagnostic Menu and press [OK]
    Read Codes - Step 1 - Select Read Codes
  2. View DTCs and their definitions on screen.
    Read Codes - Step 2

Erase Codes

  1. Use the UP/DOWN scroll buttons to select Erase Codes from the Diagnostic Menu and press [OK]
    Erase Codes - Step 1 - Select Erase Codes
  2. A warning message comes up asking for your confirmation
    Erase Codes - Step 2
  3. Press [OK] to confirm
    Erase Codes - Step 3 - Press ok to confirm

I/M Readiness

OBDll System - I/M Readiness
Use the UP/DOWN scroll button to select I/M Readiness from the Diagnostic Menu and press [OK]

Data Stream

OBDll System - Data Stream
Use the UP/DOWN scroll button to select Data Stream from the Diagnostic Menu and press [OK]

Evap Leak Test

OBDll System - Evap Leak Test
Use the UP/DOWN scroll button to select Evap Leak Test from the Diagnostic Menu and press [OK]

Vehicle Information

OBDll System - Vehicle Information
Use the UP/DOWN scroll button to select Vehicle Information from the Diagnostic Menu and press [OK]

Tool Setup

Language

Tool Setup - Language
Choose [Language] and it displays as above:
Interface languages: English, French, German, Spanish, Russian, Portuguese, Sweden, Finland, Norway, Denmark, Italian

Beeper

Tool Setup - Beeper
Choose [Beeper] and it displays as above:

Instructions(DispIay at startup)

Tool Setup - Display at startup
Choose [Instructions(Display at startup)] and it displays as above:

Unit of measure

Tool Setup - Unit of measure
Choose Unit of measure and it displays as above:

Skin Style

Tool Setup - Skin Style
Choose Unit of measure and it displays as above:

Feedback

  1. If it shows connected error with vehicle or other problem during using, please using the feedback function. Choose [Feedback] and it displays as follows:
    Feedback Operation - Step 1

Next: Press ESC Button several times and return to the main menu

  1. For example: Register battery change fail.
    Enter [Register battery change] option, and do Register battery change again (This step is very important).
    Note: Keep tool connect with car in above steps
  2. After doing register battery change, disconnect with car.
  3. Transfer data to your computer and generate feedback file (You need to download upgrade file on the computer from ANCEL website) The device is connected with computer through USB cable.
    Feedback Operation - Step 2 - Transfer data

Feedback Operation - Step 3 - Choose update
Choose "Update" file and it displays as above:

Feedback Operation - Step 4
Click "Feedback" and it displays as above:

Feedback Operation - Step 5
Please send the feedback.bin file to support@anceltech.com.

Device Information

Tool Setup - Device Information
Choose Device Information and it displays as above:

Update

  1. Download update software
  2. Connect the device with computer through USB cable.
    Update - Step 1 - Connect the device
  3. The update software is only supported by win7/8/10.
    * If computer system is Windows 7, please click "install driver.bat" in the driver files to install the driver.
    1. Click "driver" file
      Update - Step 2 - Click driver file
    2. Click "install driver. bat" to install the driver
      Update - Step 3
    3. Click "Update"
      Update - Step 4 - Click Update

Direct Update on WIndows 8/10
* Windows 8/10 can run update software directly.

SAFETY PRECAUTIONS

To prevent personal injury or damage to vehicles and/or the scan tool, read this instruction manual first and observe the following safety precautions at a minimum whenever working on a vehicle:

Always perform automotive testing in a safe environment. Do not attempt to operate or observe the tool while driving a vehicle. Operating or observing the tool will cause driver distraction and could cause a fatal accident.
Wear safety eye protection that meets ANSI standards
Operate the vehicle in a well ventilated work area: Exhaust gases are Poisonous.
Put the transmission in PARK (for automatic transmission) or NEUTRAL (for manual transmission) and make sure the parking brake is engaged.
Keep the scan tool dry, clean, free from oil/water or grease. Use a mild detergent on a clean cloth to clean the outside of the scan tool, when necessary

OBDSPACE TECHNOLOGY CO.,LTD
Address: Runfeng office longhua district Shenzhen GuangDong 518000 P.R.China
Tel: 0755-81751202
E-mail: support@anceltech com
Website: www.anceltech.com
