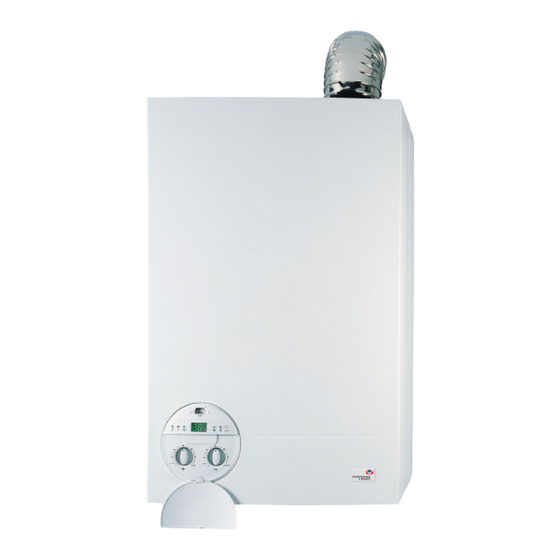

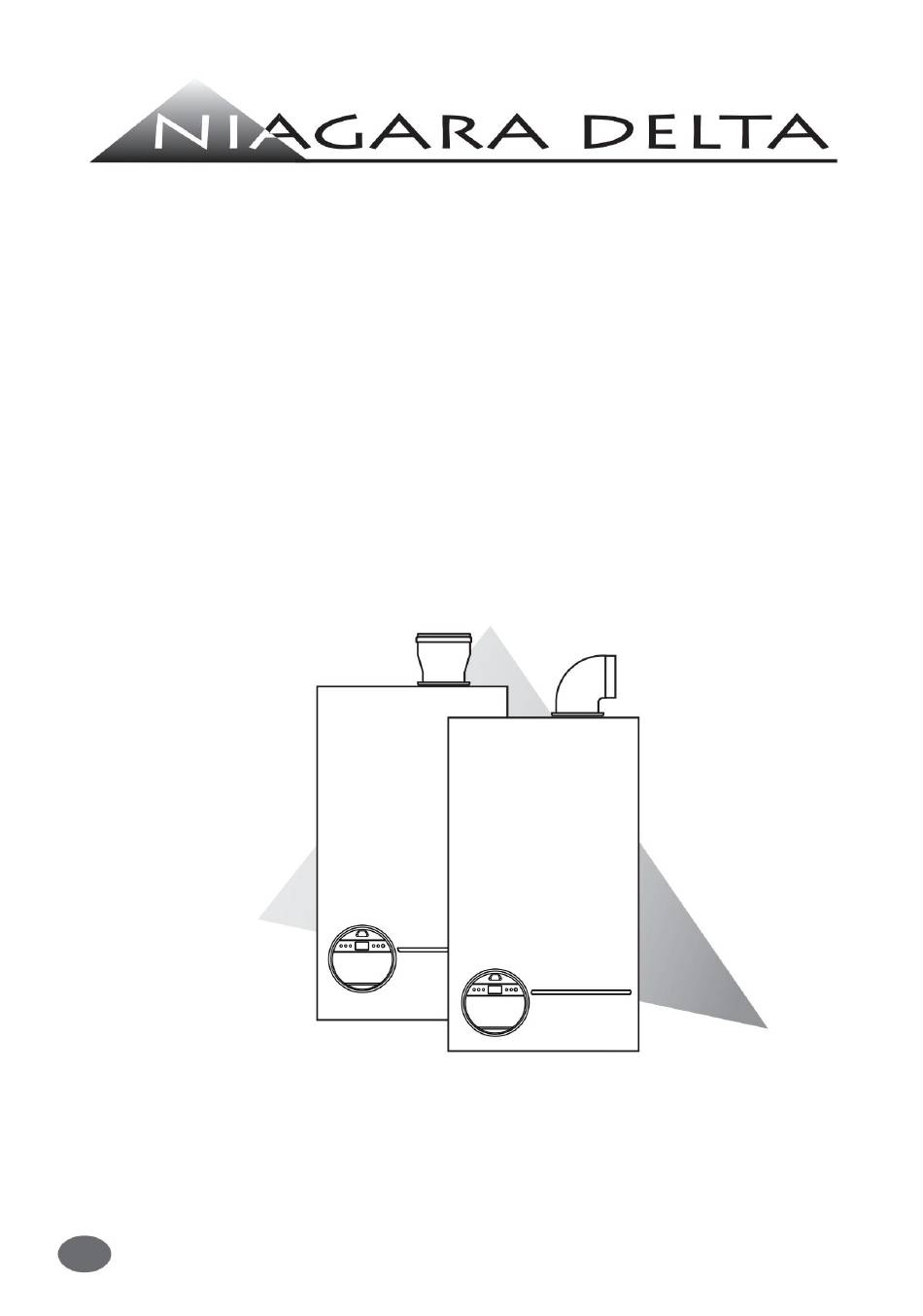

- Page 1 Machine Translated by Google WALL-MOUNTED GAS BOILER DOUBLE SERVICE built-in accumulation Forced flow sealed model Instructions for installation and use NIAGARA DELTA 24 FF NIAGARA DELTA 28 FF NIAGARA DELTA 30 FF...
-
Page 2: Table Of Contents
Machine Translated by Google Name of the boiler: NIAGARA DELTA 24 FF NIAGARA DELTA 28 FF NIAGARA DELTA 30 FF This installation and user manual is intended for appliances installed in France Summary Instructions for the installer Page 1 - Description ......................2 - dimensional characteristics ........ -
Page 3: Instructions For The Installer
Machine Translated by Google Instructions for the installer Description 1. - sheet steel frame 2. - pressure expansion vessel 3. - extraction hood 4. - main copper exchanger 5. - waterproof case 6. - stainless steel multigas burner comprising: • a removable manifold equipped with injectors • two ignition electrodes •... -
Page 4: Dimensional Characteristics
Machine Translated by Google Dimensional characteristics 54 172 54 54 450 min for maintenance 41 40 39 Fig. 3 39 Gas inlet 3 connection solutions to choose from: 40 Heating return • type C 12 ou C 42 • type C 32 xx 41 Heating flow 42 Cold water inlet 43 Cylinder hot water flow... -
Page 5: Hydraulic Characteristics
Machine Translated by Google Hydraulic characteristics The boiler is supplied as standard with an automatic by-pass and a 2-speed ciculator. The diagram (fig. 4) shows the curve of the pressure available as a function of the flow (at the boiler outlet). The minimum flow rate of the installation to ensure proper operation must be 300 l/h. -
Page 6: Conditions D'installation
Machine Translated by Google Conditions d’installation 4.1 REMINDER OF THE REGULATIONS 4.2 PRECONISATION D’INSTALLATION RESIDENTIAL BUILDINGS REGULATORY CONDITIONS FOR INSTALLATION AND EN Installation of the boiler THIRD - the axis of the external flue must be placed at a distance of The installation and maintenance of the device must be carried at least 0.40 m from any opening window and at a minimum out by a qualified professional in accordance with the regulatory... -
Page 7: Installation Of The Boiler
Various fitting sets are available from wholesalers. - 1st installation - replacement of Chaffoteaux & Maury boilers - replacement of boilers of other brands - wall spacer kit (in the case of passage of the tubes from the rear) - put in place (fig. - Page 8 Machine Translated by Google Disassembly and assembly of the casing - maintenance Removing the trim - unscrew the 4 fixing screws A of the trim (fig. 7) - release the clips - remove the trim Fig. 7 Fitting the casing detail Remove the protective film - present the casing...
-
Page 9: Connections
Machine Translated by Google Electrical connections Location of the connections: - the electrical connection of the TA is made under the boiler, on the bottom plate. - the arrivals of the mains supply cables and the room thermostat must be provided on the wall at the height defined by the installation template - the mains supply to the boiler is carried out with a 2 P + E cable supplied with the 'device. -
Page 10: Commissioning
Machine Translated by Google Commissioning Pressurization (fig. 13) Sanitary circuit - open the cold water tap 42 - drain the tank and the installation by drawing from the various hot water taps Heating circuit - check that the heating flow 41 and heating return 40 valves are open - open the filling valves 37 - close these valves when the needle of the pressure gauge 30 is at the pressure determined in §... -
Page 11: Settings
Machine Translated by Google Settings The device when it leaves the factory is preset. The value of these settings is specified in menus 3 and 4 All settings can be changed by the installer or a qualified professional. The settings and information on the boiler can be accessed by tilting door P of the electrical box and removing cover D (fig. - Page 12 Machine Translated by Google ACTION STATE DISPLAY Menu - 1 - Fault history indicates the ” last 10 faults Element 1 Element 2 and 3 rubric code from 01 to 99 Last fault appeared 0• code from 01 to 99 Penultimate fault that appeared 1•...
- Page 13 Machine Translated by Google ACTION DISPLAY STATE Menu - 3 - Boiler settings 1 time Element Element 2 and 3 rubric 0 : non Gentle heat module 1 : yes x times 0 : non Sanitary safety temperature DHW setpoint fixed at 60° no 1 : yes setpoint display 0 : out of the 2...
- Page 14 Machine Translated by Google ACTION DISPLAY STATE Menu - 4 - Settings for heating 1 time Element 1 Element 2 and 3 rubric 0 : non Pump shut-off operation 1 : yes x times 0 : big Pump speed 1 : Small 0 mn 0,5 mn Pump post-circulation time...
- Page 15 Machine Translated by Google Example of settings (continued) Setting the TAC: If you want to modify the setting of the TAC (Heating Anti Cycle Timer) to 3 minutes. (reminder: factory setting at 2 min 30 s / see installer table menu 4 section 8). Proceed as follows: Display ”...
-
Page 16: Incidents
Machine Translated by Google Operating incidents In the event of an operating or information anomaly, the display flashes a 2-digit code. Refer to the table below to diagnose the problem. For faults 01 and 03 the device locks, red LED 28 lit (fig.16). Example: Overheating lockout DEFECT Fig. - Page 17 They cannot be used to calculate the exact boiler output set. Niagara Delta 24 FF Gas: PROPANE BUTANE P.
-
Page 18: Transformation
Machine Translated by Google Gas transformation In the event of adaptation to a gas other than that for which the boiler is equipped, the parts supplied with the conversion kit will be replaced. Instructions for the user 12 Orders 27 28 29 Fig. - Page 19 Machine Translated by Google Conduct Getting started (fig. 17) 1. Check that the pressure in the heating circuit is sufficient: the needle of the manometer at least 1 bar with 1.5 bar cold max. Otherwise see § 3. 2. Make sure that the general gas shut-off valve of the installation is open and that the boiler is energized, lights up.
-
Page 20: Driving
Machine Translated by Google Driving (continued) Sanitary and heating mode authorized LEDs 26 and 27 are on and: 1st case: no drawing off and no tank heating the display shows the heating flow temperature, 2nd case: tank heating clockwise segment scrolling the display indicates 3rd case: drawing clockwise segment scrolling... -
Page 21: Practical Advice
Your boiler is guaranteed for a period specified on the guarantee certificate which specifies the terms and conditions: make sure that the detachable part of this certificate has been returned to Chaffoteaux & Maury. To benefit from the guarantee, a qualified professional must have installed, adjusted and commissioned your installation. This gives you the assurance that he has complied with the installation instructions and that the regulatory and safety conditions have been complied with. -
Page 22: Technical Characteristics
Machine Translated by Google Technical characteristics Model..............Niagara delta 24 FF Niagara delta 28 FF 8.2 to 24 kW 8.2 to 28 kW Heating power ..........Pn Power variable domestic hot water ..Pn max 24 kW 28 kW Performance category according to RT 2000 ...... - Page 23 Machine Translated by Google Technical characteristics (continued) Model........................Niagara delta 30 FF 10.1 to 30 kW Heating power ....................Pn Hot water capacity variable sanitary ............Pnmax 30 kW Solution Technique RT 2000..................... Low temperature II 2E+3+ Category..........................Forced flow sealed type.
- Page 24 47 rue Aristide Briand 92532 LEVALLOIS PERRET Cedex Tel. Consumer reception: 01 47 59 80 60 Tel. Professional Technical Assistance: 01 47 59 80 20 Commercial Services Fax: 01 47 59 80 01 Fax Services Techniques : 01 47 59 80 02 www.chaffoteaux-maury.fr...
