Operating Guide Termix Compact 28 VMTD-FI

5.0 Design

5.1 Design

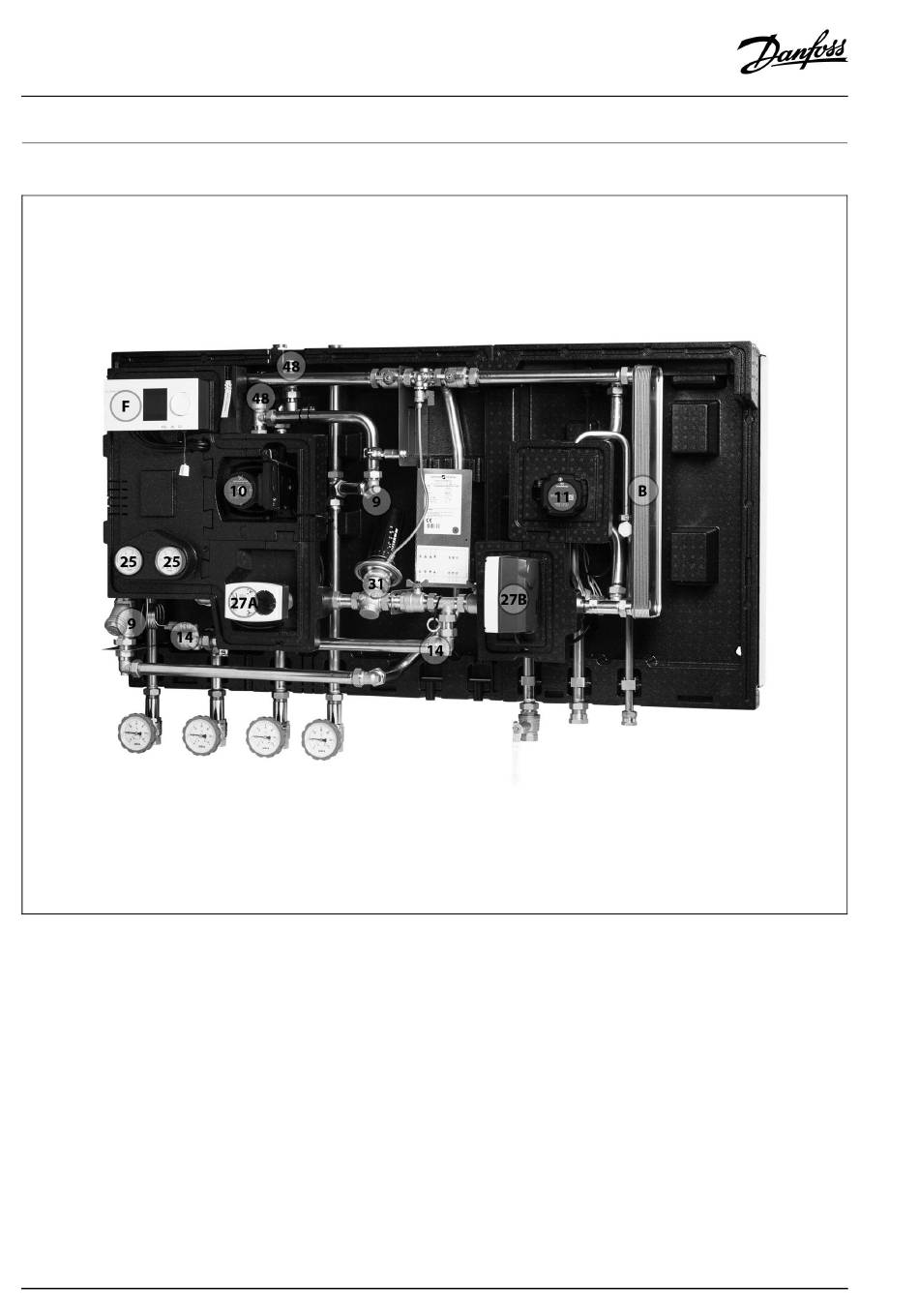

Your substation might look different than the substation shown.
Design description
B Heat exchanger, DHW
F Electronic controller
9
Strainer
10 Circulator pump
16 | © Danfoss | 2024.03
11 Domestic hot water pump
14 Sensor pocket, energy meter
20 Filling/drain valve
25 Pressure gauge with ball valve
27A Actuator, HE
27B Actuator, DHW
48
Air vent, manual
