Operating Guide Termix VX with complete insulation

5.0 Design

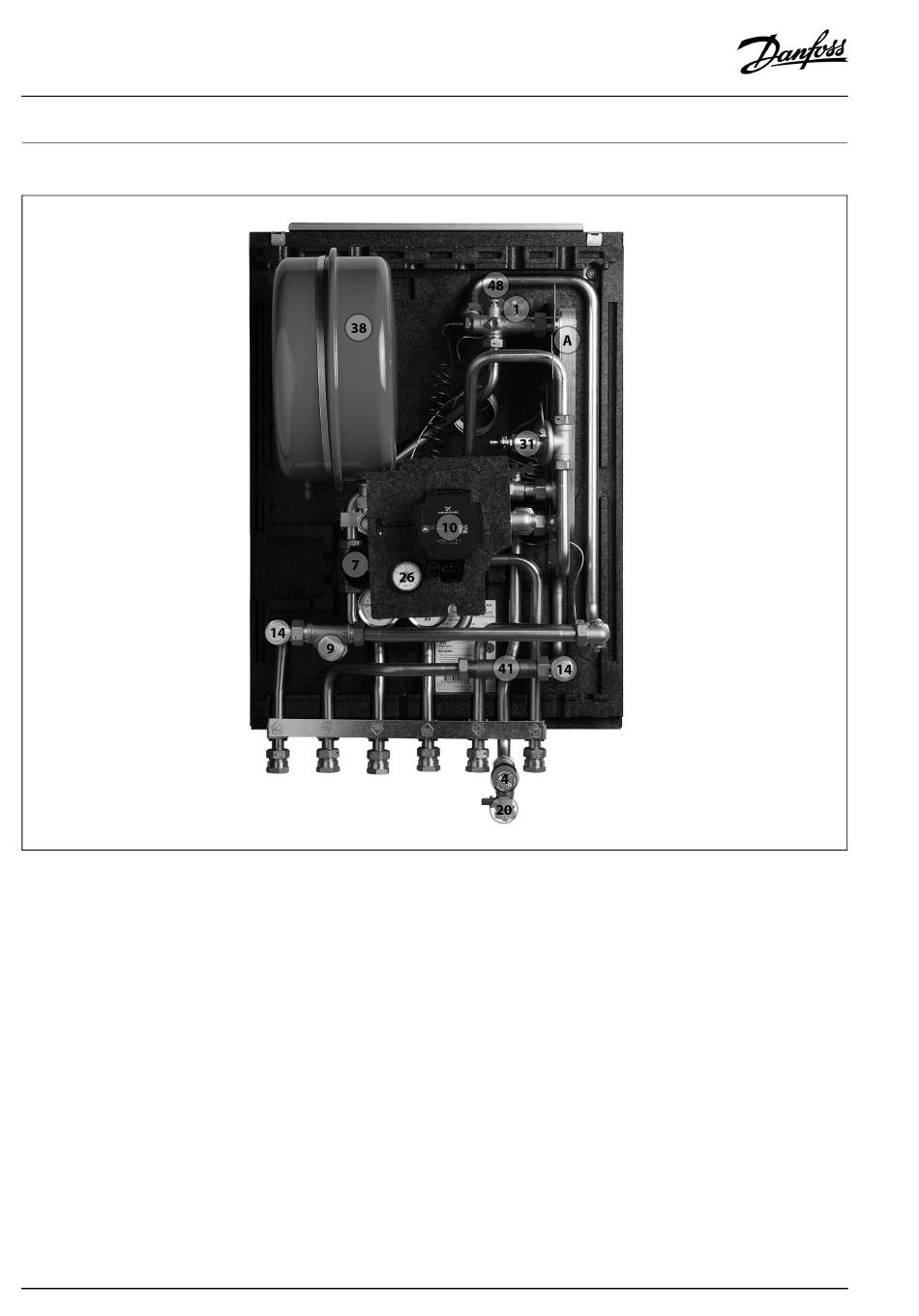

5.1 Design
Your substation might look different than the substation shown.
Design description
A Heat exchanger, HE
1
Summer valve
4
Safety valve, HE
7
Thermostatic controller, HE
9 Strainer
10 | © Danfoss | 2022.11
10 Circulator pump
14 Sensor pocket, energy meter
20 Filling/drain valve
26 Pressure gauge, HE
31 Differential pressure controller
38 Expansion tank
41 Fitting piece, energy meter
48 Air vent, manual
