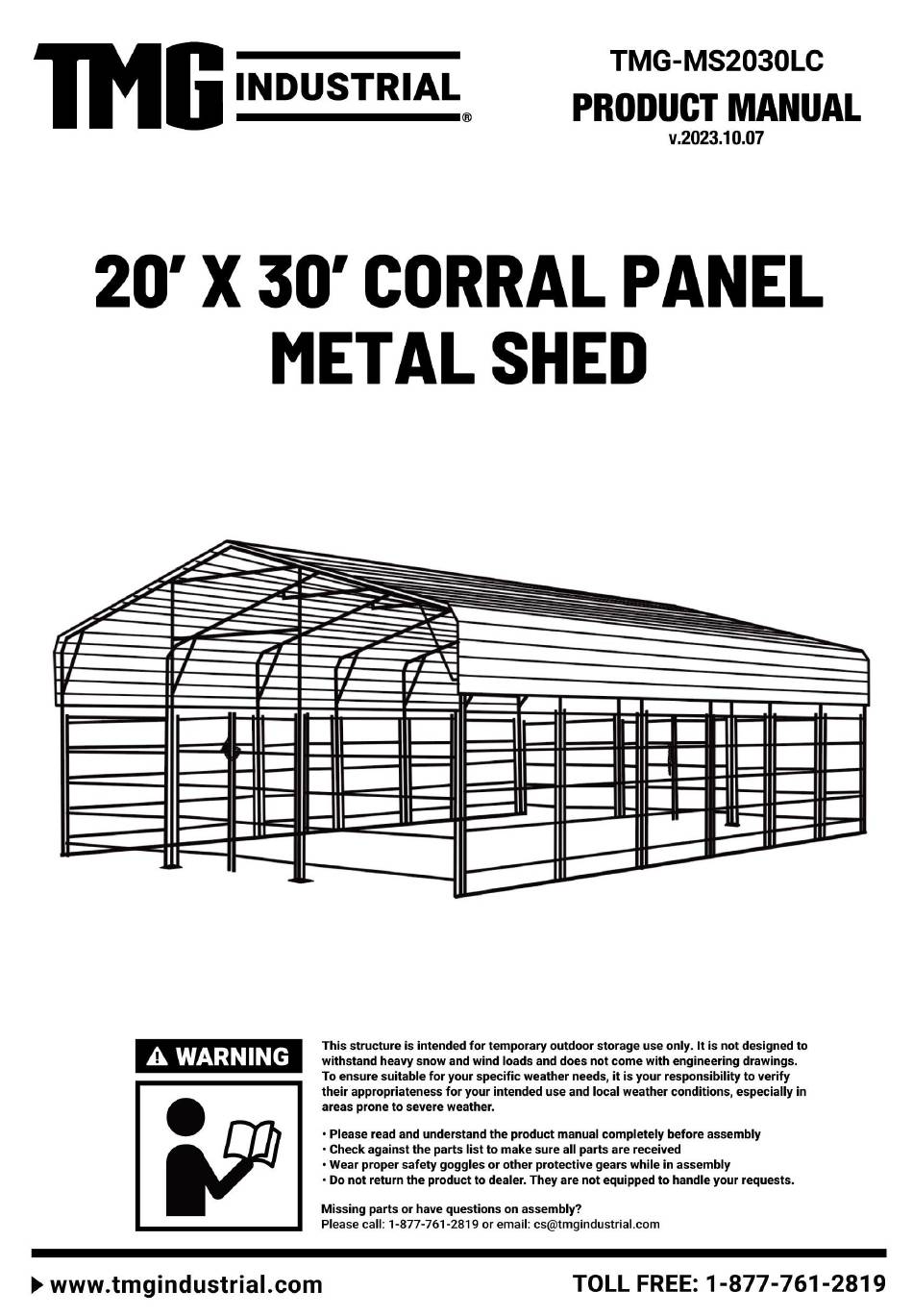

TMG -MS2030LC Product Manual

20' x 30' corral panel metal shed
Hide thumbs Also See for TMG-MS2030LC:

Advertisement

Quick Links

Download this manual
www.tmgindustrial.com
0/27
TOLL FREE: 1-877-761-2819

Advertisement

loading
Need help?

Need help?

Do you have a question about the TMG-MS2030LC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TMG TMG-MS2030LC

Summary of Contents for TMG TMG-MS2030LC

  • Page 1 www.tmgindustrial.com 0/27 TOLL FREE: 1-877-761-2819...

  • Page 2: Main Specifications

    MAIN SPECIFICATIONS : Overall assembled size : W6 x L9 x H3.04 (m) / 19.7 x 29.5 x 10 (ft)  Shoulder wall clearance height : 2.2 m / 7.2 ft  Door : W1.85 x H2.2 (m) / 6.1 x 7.2 (ft) ...
  • Page 3 The layout of foundation(two).  Note: the ground anchor is installed on the cement block. www.tmgindustrial.com 2/27 TOLL FREE: 1-877-761-2819...
  • Page 4  Baseplate layout. PRIOR TO ASSEMBLY Please read the instructions carefully before installation. It is very important to follow your local safety regulations and industry standards during installation. Regulations may include but are not limited to: Safety helmets, protective eyewear, and clothing ...
  • Page 5 TMG-MS2030LC PART LIST PARTS GRAPHICAL DESCRIPTION LENGTH CODE Peak arch tube L1669mm Middle rafter tube L1880mm Middle rafter tube L1880mm Shoulder tube L1188mm Shoulder tube L1188mm (middle) Sidewall tube L1170mm Short casing L198mm Side edge crossbar L1570mm (front and rear trusses)
  • Page 6 Edge protector L1600mm Edge buckle L200mm Water plug 50x50mm Tube end water plug φ42 Steel cable mounting plate L100mm Side upper part fence L1392mm Side lower part fence L1392mm Front and rear upper part fence L1892mm Front and rear lower part fence L1892mm Left door L1500mm...
  • Page 7 Expansion bolt φ16x150mm Waterproof silicon sealant Caulking gun Hex bolt M10x70mm Self tapping screw #12x25mm Rivet φ3x6mm Corner protector Hex bolt M10x120mm Sleeve M8mm Eyebolt M10x90mm Hex bolt M10x30mm flat washer φ22mm www.tmgindustrial.com 6/27 TOLL FREE: 1-877-761-2819...

  • Page 8: Installation Steps

    INSTALLATION STEPS STEP 1 : REVIEW THE WHOLE STRUCTURE AND CHOOSE THE PROPER INSTALLATION SITE. All lines should be drawn from center to center of all baseplate tubes. Diagonal line X must be equal to Y.   Installation diagram of expansion bolt. PART PART www.tmgindustrial.com...
  • Page 9 STEP 2 : ASSEMBLE ALL TRUSSES.  The building includes 7 trusses : (1) front truss, (1) rear truss, (1) middle trusses and (4) other trusses.  Install front and rear trusses. PART PART 12x2 34x2 www.tmgindustrial.com 8/27 TOLL FREE: 1-877-761-2819...
  • Page 10  Install (1) middle truss. PART PART www.tmgindustrial.com 9/27 TOLL FREE: 1-877-761-2819...
  • Page 11  Install (4) other trusses. PART PART 12x4 34x4  Lay down all (7) trusses on the ground when the assembly is all completed and before moving to next step. www.tmgindustrial.com 10/27 TOLL FREE: 1-877-761-2819...
  • Page 12 STEP 3 : ASSEMBLE ALL TRUSSES TO THE FOUNDATION PIPE AND CONNECT THEM WITH (#26)BOLTS.  The front and rear trusses are installed with one side of (#12) Steel cable mounting plate facing outwards . PART www.tmgindustrial.com 11/27 TOLL FREE: 1-877-761-2819...
  • Page 13  Install top cross bar A (#5C) and top cross bar B (#5D). Use (#30) and (#26) Hexagonal bolt fixation. PART PART www.tmgindustrial.com 12/27 TOLL FREE: 1-877-761-2819...
  • Page 14 STEP 4 : DOOR COLUMN INSTALLATION,THE FRONT AND REAR MOUNTING METHODS ARE THE SAME. PART PART 16x2 www.tmgindustrial.com 13/27 TOLL FREE: 1-877-761-2819...
  • Page 15 STEP 5 : ASSEMBLE ALL THE FRONT AND REAR PART FENCE . PART www.tmgindustrial.com 14/27 TOLL FREE: 1-877-761-2819...
  • Page 16 STEP 6 : INSTALL THE FRONT AND REAR DOOR ENCLOSURE. nstall the front and rear mechanical doors and front and rear fences, and fix the mechanical doors (#15L,  #15R) and front and rear fences (#14A, #14B) with double fasteners (#20). Adjust the height of the mechanical door to the base plate by 20 mm, and adjust the positioning iron ring on ...
  • Page 17 STEP 7 : ASSEMBLE ALL THE SIDE PART FENCE . PART www.tmgindustrial.com 16/27 TOLL FREE: 1-877-761-2819...
  • Page 18 STEP 8 : INSTALL FENCES ON BOTH SIDES. Install the fence between the trusses, the left and right trusses and fences are fixed with single fastener (#21),  middle trusses and fences are fixed with double fastener (#20), and locked with hex bolt (#33). PART www.tmgindustrial.com 17/27...
  • Page 19 STEP 9 : INSTALL THE COLOR IRON TILE. Before installation, ensure that the distance between centers of each collapse is 1500mm. Install the first row  of colored steel tiles from the top end. The center of the colored steel tiles must be aligned with the midpoint of the top arch tube (you can mark the center of the top arch tube with a line).
  • Page 20 Install all color iron tiles in turn, take the first colored steel tile at the top as the benchmark make sure that  both ends of each color iron tile are aligned, and apply waterproof silicon sealant (#25) on the butt joint of both ends.
  • Page 21 STEP 10 : INSTALL THE FRONT AND REAR EDGING STRIPS. Start to install the color steel tile edge protector (#9) from one side, and align one end with the color steel tile  edge. The opening of the edge banding strip of the color steel tile shall be aligned with the end face of the color steel tile, and the bottom buckle can be pressed into place.
  • Page 22 Install the edge buckle (#10) and the two raised card points of the edge buckle are aligned with the square  holes at the interfaces of the two color steel tile edge bands, and then press the buckle in place. PART www.tmgindustrial.com 21/27...
  • Page 23 STEP 11 : CONNECT THE CROSSBAR. Install the side connecting crossbar, align (#5A) side edge crossbar with the binding strip, wrap the colored  steel tile binding strip and the colored steel tile inside the opening of the connect the crossbar, and fix them on the (#4) sidewall tube with (#27) self tapping screw.
  • Page 24 STEP 12 : INSTALL THE SQUARE PIPE WATERPROOF PLUG AND ANTI-COLLISION ANGLE.  Put the waterproof plug into the square pipe head. Tear the 3M adhesive protective film, on the anti- corner protector (#29) and paste the anti-collision angle to one end of the (#5A) side edge crossbar. PART www.tmgindustrial.com 23/27...
  • Page 25 STEP 13 : INSTALL EYEBOLTS.  Drill holes from inside to outside where the middle truss has holes, through the thin metal sheet, Then install (#32) eyebolts. PART www.tmgindustrial.com 24/27 TOLL FREE: 1-877-761-2819...
  • Page 26 STEP 14 : INSTALL THE WIRE ROPE. PART www.tmgindustrial.com 25/27 TOLL FREE: 1-877-761-2819...
  • Page 27 STEP 15 : INSTALL THE WATERPROOF PLUG. PART Now that your building is completely installed, we need to check all components and trusses to make sure the  whole structure is rectangular. Check whether the connection of color steel tile fits. We provide (#28) rivets, which can be used to fix the color steel tiles where necessary, so that they can fit together to prevent water leakage.

  • Page 28: After The Installation

    AFTER THE INSTALLATION Walk around and inspect the shelter periodically to make sure all components are still firmly secured and the whole shelter is well supported. Check all bolts and nuts as well as all connection points to make sure they are all in good position.
