ISL71610SLHMEV1Z
The ISL71610SLHMEV1Z evaluation board (shown in
Figure 3) features the ISL71610SLHM
Magnetoresistive (GMR) digital isolator part. This IC
is a radiation hardended digital isolators designed for
isolated power supply designs and isolated serial
communications interfaces, such as CAN, SPI,
RS-422, and RS-485 applications.
The ISL71610SLHM is a passive input, active output
GMR digital isolator that requires a 3V to 5.5V supply
to power its CMOS output.
This GMR isolator can replace some of the available
optocouplers currently used in space applications.
Whereas optocoupler lines are susceptible to Total
Ionizing Dose (TID) radiation that causes the optics to
become cloudy and therefore compromising the
signal, the GMR inductive structure used in the
ISL71610SLHM is inherently immune to radiation
effects.
The ISL71610SLHMEV1Z evaluation board and this
accompanying user guide provides a quick and easy
method to evaluate the ISL71610SLHM part, see the
ISL71610SLHM datasheet for information about the
operation, function, and performance of the device.
610_IN
610_IN#
X0119672 Rev.1.0
Mar 12, 2021
Giant

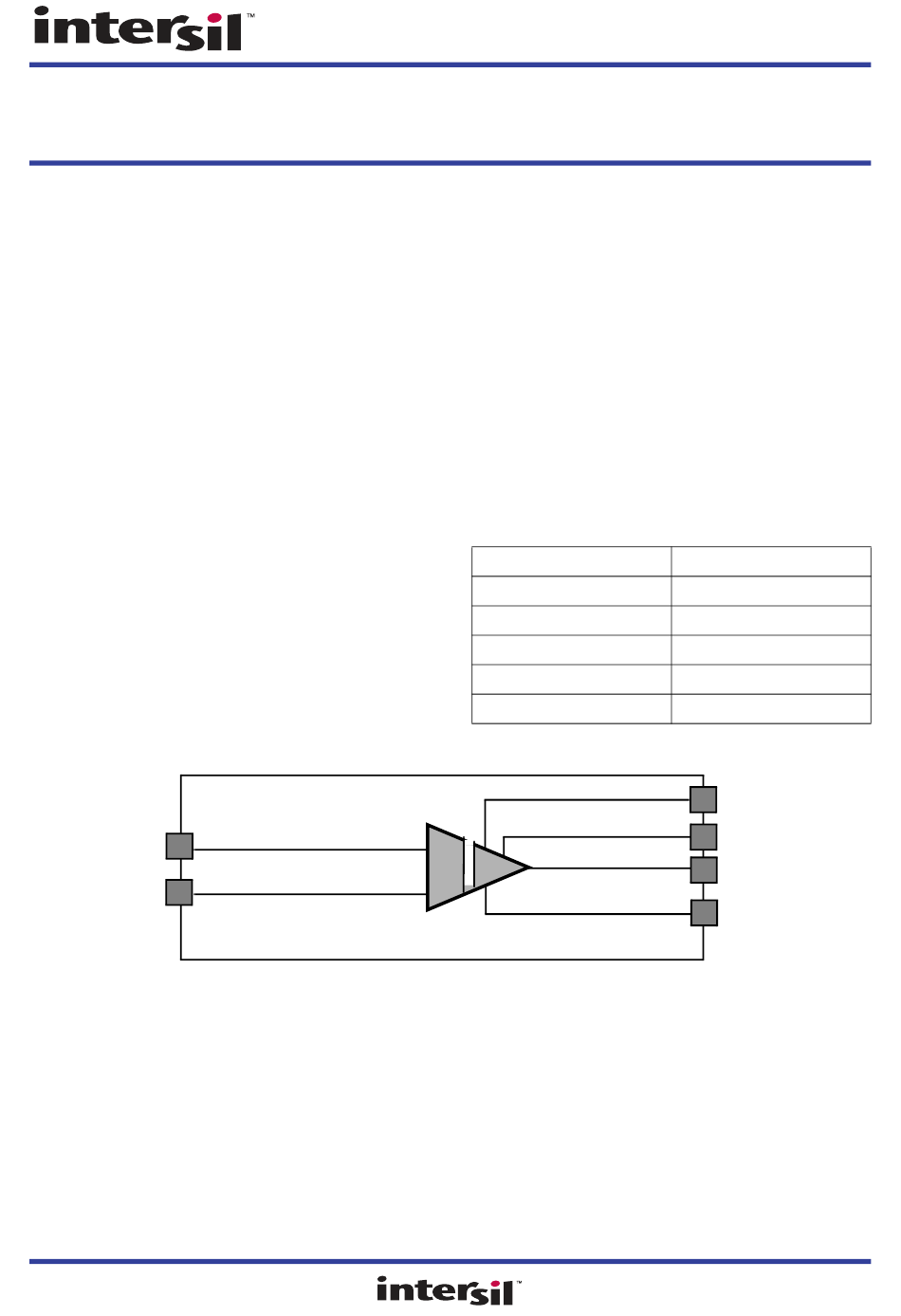

Figure 1. ISL71610SLHMEV1Z Evaluation Board Block Diagram
Evaluation Board Manual
Features
▪ Easy to use design
▪ Convenient test points and connections for test
equipment
▪ 3V to 5.5V signal operation
▪ 500V rated barrier isolation
DC
Specifications
The ISL71610SLHMEV1Z evaluation board is
designed for ease of evaluation with a minimum of
components and connections. The electrical ratings
of the ISL71610SLHMEV1Z evaluation board are
shown in Table 1.
Table 1. Electrical Ratings
Parameter
Data Throughput
DC Output Supply Voltage
Coil Current
Output Current
Temperature
ISL71610SLHM Rating
100Mbps
3V to 5.5V
±8mA to ±20mA
±4mA
-55°C to +125°C
VDD_OUT
6OEN
ISL610_OUT
GND_OUT
