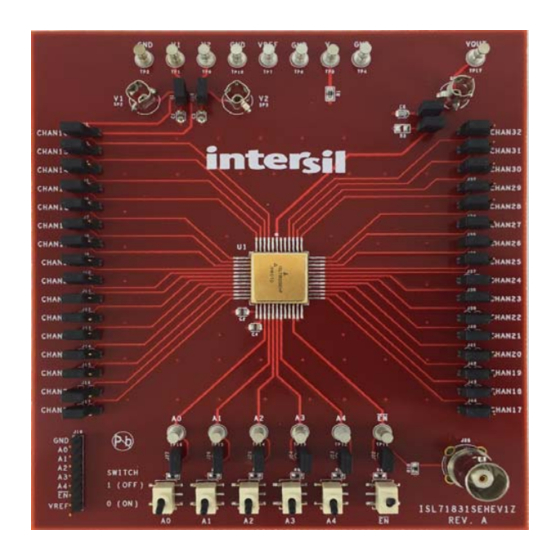

ISL71831SEHEV1Z
Evaluation Board User Guide
Description
The
ISL71831SEH
is a radiation tolerant, 32-channel high ESD
protected multiplexer that is fabricated using Intersil's
proprietary P6SOI (Silicon On Insulator) process technology to
provide excellent reliability. It operates with a single supply
voltage ranging from 3.0V to 5.5V. This evaluation board is
designed to provide easy access to the capabilities of the part.
The evaluation board has a DIP switch, which provides a
convenient way to address all 32 channels without the need
for extra supplies. There's also a BNC input available that will
allow you to drive the address pins with a signal generator.
Specifications
This board has been configured and optimized for the following
operating conditions:
• V
= 3.0V to 5.5V
+
• V
= 3.0V to 5.5V
REF
SIGNAL
GENERATOR
INPUT
BUS
WIRE
A0
UG040 Rev.0.00
March 7, 2016
VREF
A1
A2
A3
A4

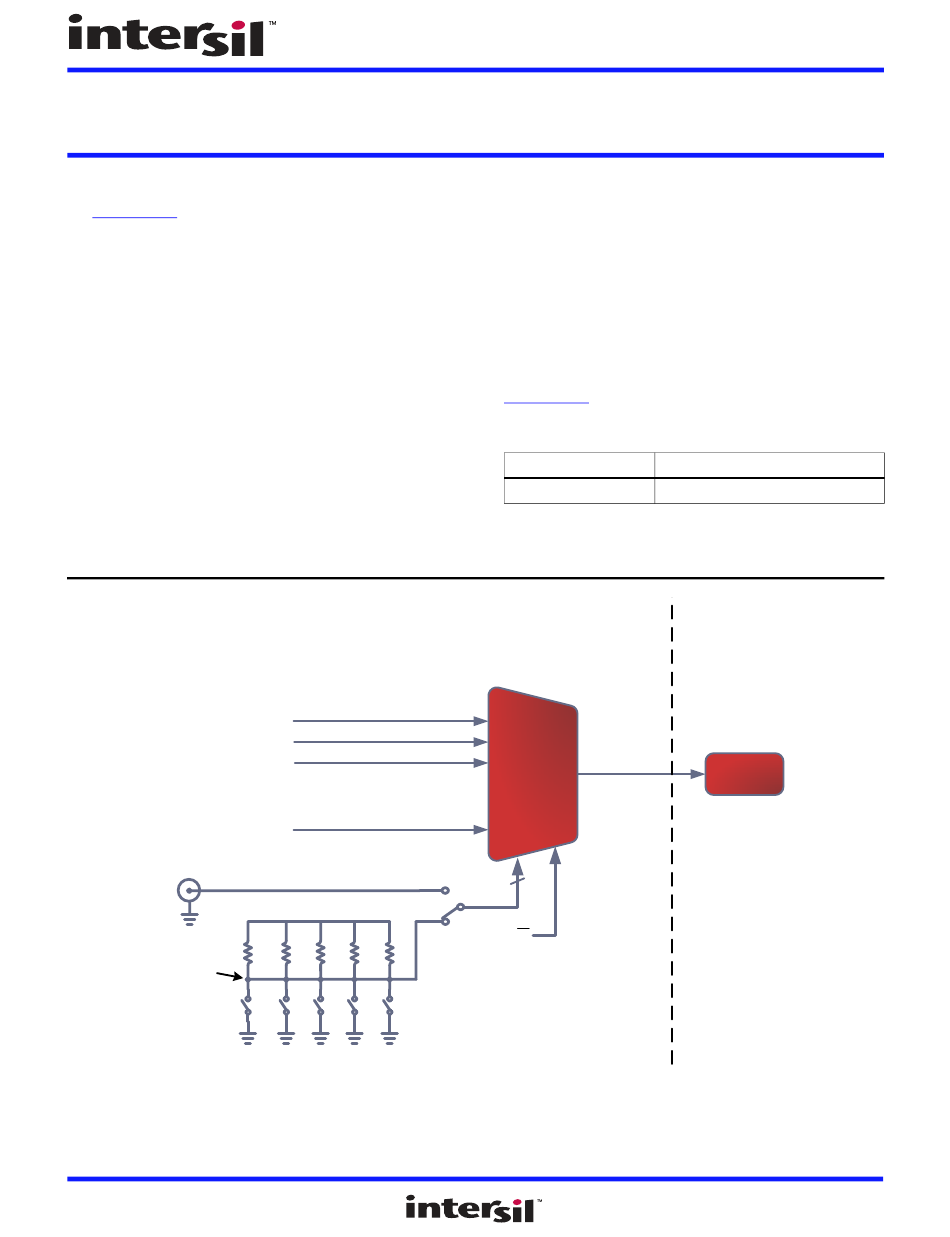

FIGURE 1. ISL71831SEHEV1Z BLOCK DIAGRAM
USER'S MANUAL
Key Features
• Jumper selectable input source for each input
• DIP switch to conveniently select 1 of 32 channels
• BNC input for dynamic addressing
• Multiple loading options with jumpers on VOUT
• Convenient power connection
• On-board enable switch
References
ISL71831SEH
Datasheet
Ordering Information
PART NUMBER
ISL71831SEHEV1Z
EVALUATION
BOARD
ISL71831SEH
IN01
IN02
IN03
OUT
..
.
IN32
5
ADDRESS
EN
Rev.0.00
March 7, 2016
DESCRIPTION
Evaluation board for the ISL71831SEH
ADC
Page 1 of 9
UG040

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ISL71831SEH and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Intersil ISL71831SEH

Summary of Contents for Intersil ISL71831SEH

  • Page 1 32-channel high ESD • Jumper selectable input source for each input protected multiplexer that is fabricated using Intersil’s • DIP switch to conveniently select 1 of 32 channels proprietary P6SOI (Silicon On Insulator) process technology to •...

  • Page 2: Power Supplies

    +3V to +5.5V. The these paths are kept away from known noise sources. ISL71831SEH is a rail-to-rail mux and should be able to • It is recommended to decouple the power supply pins (V accommodate any input signal with a voltage level between or ) for power supply filtering.
  • Page 3 IN28 IN11 IN27 IN10 IN26 IN25 IN24 IN23 IN22 IN21 ISL71831SEHVF IN20 IN19 IN18 IN17 TP11 TP12 VREF TP13 TP14 TP15 VREF TP16 VREF DRAWING TITLE DRAWN BY: DATE: ISL71831SEH TIM KLEMANN 12/02/2013 32CH ANALOG MULT FIGURE 4. ISL71831SEHEV1Z SCHEMATIC...

  • Page 4: Bill Of Materials

    TEKTRONIX 131-4353-00 P1-P4, THOLE KEYSTONE 1514-2 P7-P18 BNC1 CONN AMPHENOL 31-5329-51RFX SW1-SW6 GRAYHILL 78B06S 28CDFP INTERSIL ISL71831SEH/PROTO J2-J17, THOLE BERG/FCI 68000-236HLF J29-44 J1, J18, BERG/FCI 69190-202HLF J20-J27 Bottom four SJ-5003SPBL corners UG040 Rev.0.00 Page 4 of 9 March 7, 2016...
  • Page 5 ISL71831SEHEV1Z Board Layout - 4 Layers FIGURE 5. SILKSCREEN TOP FIGURE 6. TOP LAYER UG040 Rev.0.00 Page 5 of 9 March 7, 2016...
  • Page 6 ISL71831SEHEV1Z Board Layout - 4 Layers (Continued) FIGURE 7. PCB – INNER LAYER 1 (TOP VIEW) FIGURE 8. PCB – INNER LAYER 2 (TOP VIEW) UG040 Rev.0.00 Page 6 of 9 March 7, 2016...
  • Page 7 ISL71831SEHEV1Z Board Layout - 4 Layers (Continued) FIGURE 9. PCB – BOTTOM LAYER (TOP VIEW) FIGURE 10. SILKSCREEN BOTTOM UG040 Rev.0.00 Page 7 of 9 March 7, 2016...

  • Page 8: Typical Performance Curves

    ISL71831SEHEV1Z Typical Performance Curves Unless otherwise noted: V = +15V, V = -15V, V = 5.0V, T = +25°C +125°C +125°C +25°C +25°C -55°C -55°C COMMON MODE VOLTAGE (V) COMMON MODE VOLTAGE (V) FIGURE 11. r vs COMMON MODE VOLTAGE (V = 5V) FIGURE 12.
