ISL73847MDEMO1Z

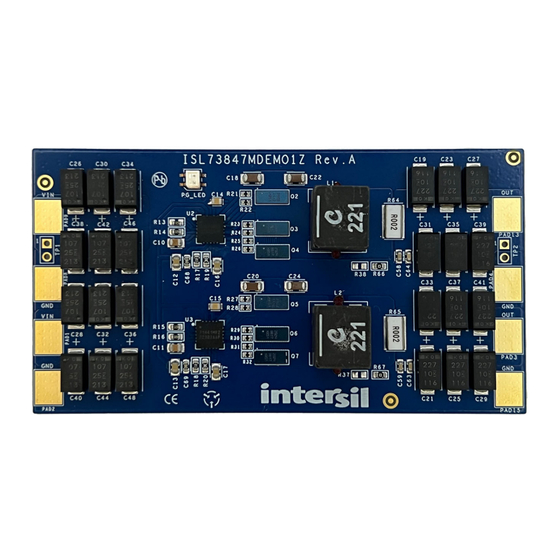

The ISL73847MDEMO1Z demonstration board
demonstrates the performance of the
dual-phase buck controller. The board is optimized for
a 4.5V to 15V input operation to generate a 50A max,
1V output.
Specifications
▪ Input voltage supply (V
▪ Preset output voltage (V
▪ Preset switching frequency: 500kHz
▪ Maximum load current: 50A
▪ Preset droop regulation
22µF
0.1µF
VFB-
100nF
VREF
604Ω
DROOP
VFB+
56nF
22nF
SS
8.2nF
4.22kΩ
COMP
94.2kΩ
FS
330pF
SYNC-I
SYNC-O
100kΩ
GND
R34UZ0014EU0101 Rev.1.01
May 13, 2024
ISL73847M
): 4.5V to 15V
IN
): 1V
OUT
EN
VDD
LDO
600mV
I
DROOP
-
3.6mS
+
-
EA
+
+
VFB+
OSC
VREF

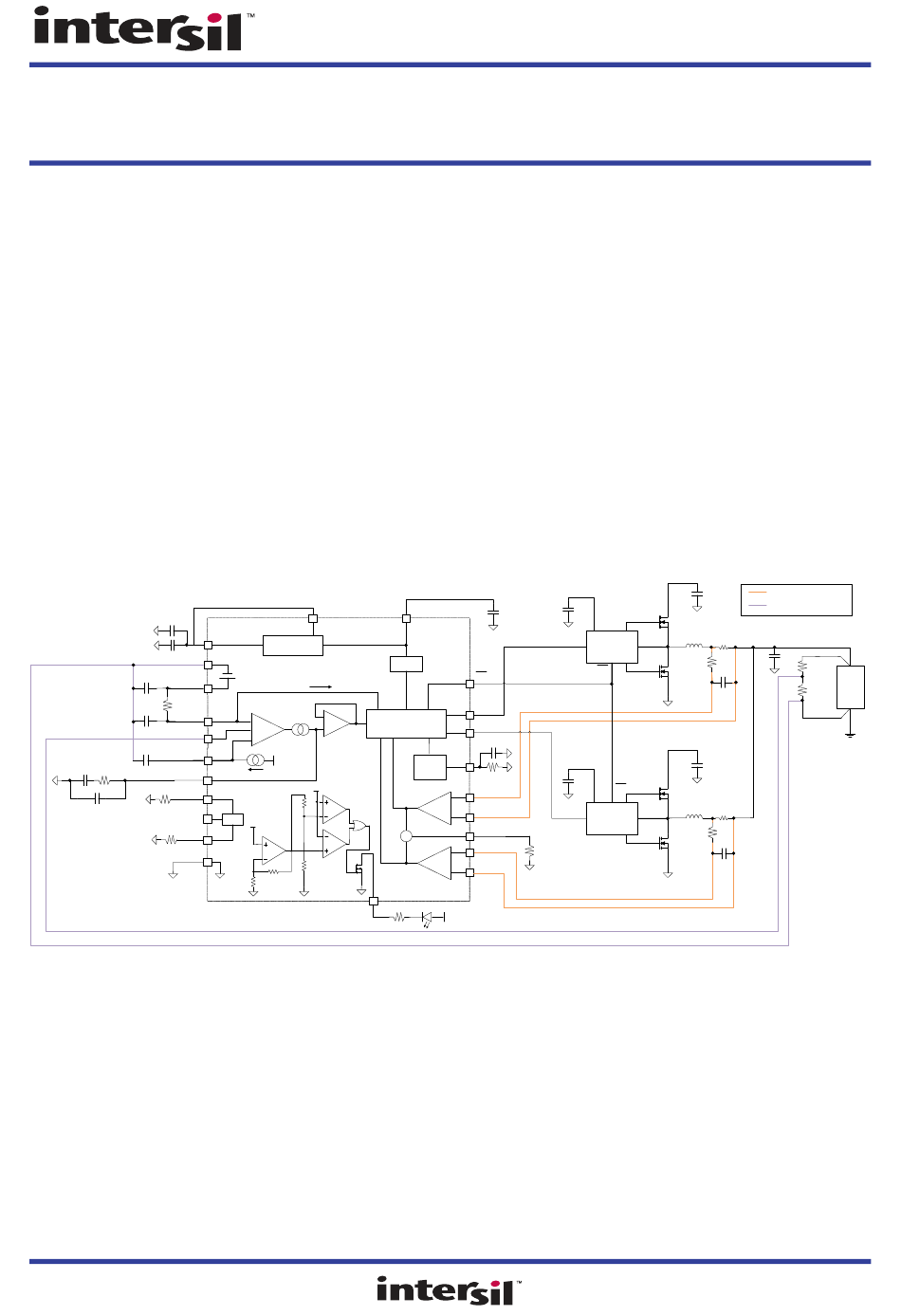

Figure 1. ISL73847MDEMO1Z Block Diagram
Demonstration Board Manual
Features
▪ Power-Good LED indicator
▪ Integrated LDO (VCC)
▪ Droop regulation set by a single resistor
VCC
22µF
1µF
UVLO
FLT
PWM1
PWM
PWM2
100pF
SLP
SLOPE
GEN
34.8kΩ
ISEN1+
20µA/50mV
CSA1
ISEN1-
IMON
Σ
10kΩ
ISEN2+
CSA2
ISEN2-
20µA/50mV
VCC
680Ω
PVIN
638µF
VDD
0.22µH
2mΩ
Half Bridge
Driver
ISL71441MRZ
30.1Ω
FLT
680pF
PVIN
22µF
FLT
VDD
0.22µH
2mΩ
Half Bridge
Driver
ISL71441MRZ
30.1Ω
680pF
© 2023-2024 Renesas Electronics
Current Feedback
Remote Voltage Feedback
VOUT
5.28mF
3.24kΩ
FPGA
LOAD
4.99kΩ
Page 1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Intersil ISL73847MDEMO1Z
Summary of Contents for Intersil ISL73847MDEMO1Z
- Page 1 20µA/50mV CSA1 0.22µH ISEN1- 2mΩ 330pF Half Bridge SYNC-I Driver VREF ISL71441MRZ IMON SYNC-O 30.1Ω Σ 10kΩ ISEN2+ 100kΩ CSA2 680pF ISEN2- 20µA/50mV 680Ω Figure 1. ISL73847MDEMO1Z Block Diagram R34UZ0014EU0101 Rev.1.01 Page 1 May 13, 2024 © 2023-2024 Renesas Electronics...
-
Page 2: Table Of Contents
ISL73847MDEMO1Z Demonstration Board Manual Contents Functional Description ..............3 Operating Range . -
Page 3: Functional Description
ISL73847MDEMO1Z Demonstration Board Manual Functional Description Operating Range The ISL73847MDEMO1Z board requires one input supply (V ) to operate properly. This supply powers the ISL73847M controller analog supply input, plus additional supporting circuitry and the onboard buck power supply input. You can set the VIN supply from 4.5V to 15V. The buck regulator circuit is preset for a 1V output voltage and a switching frequency of 500kHz with a 0.22µH output inductor and 2.64mF output capacitance per phase with the... -
Page 4: Changing The Switching Frequency
ISL73847M datasheet. IMON The ISL73847MDEMO1Z monitors the average current through the inductor as a voltage on the IMON pin. A 10kΩ pull-down resistor (R ) is connected to the IMON pin. A 100pF bypass capacitor is added in parallel to R to improve averaging. -
Page 5: Enabling/Disabling
ISL73847MDEMO1Z Demonstration Board Manual Enabling/Disabling The ISL73847MDEMO1Z automatically enables when VDD reaches a certain voltage on power-up by a 4.99kΩ resistor (R ) connected between EN and VDD. For more information about enabling and disabling the controller, refer to the ISL73847M datasheet. -
Page 6: Schematic Diagrams
ISL73847MDEMO1Z Demonstration Board Manual Schematic Diagrams UNNAMED_1_SMRES_I342_A UNNAMED_1_SMRES_I329_A UNNAMED_1_SMRES_I321_B UNNAMED_1_ISL71441M_I364_16 UNNAMED_1_NCHANNEL_I347_D UNNAMED_1_SMRES_I346_A UNNAMED_1_SMRES_I345_A Figure 6. ISL73847MDEMO1Z Schematic (Page 1) R34UZ0014EU0101 Rev.1.01 Page 6 May 13, 2024... - Page 7 ISL73847MDEMO1Z Demonstration Board Manual Figure 7. ISL73847MDEMO1Z Schematic (Page 2) R34UZ0014EU0101 Rev.1.01 Page 7 May 13, 2024...
-
Page 8: Bill Of Materials
ISL73847MDEMO1Z Demonstration Board Manual Bill of Materials Reference Designator Description Manufacturer Manufacturer Part PWB-PCB, ISL73847MDEMO1Z, Imagineering Inc ISL73847MDEMO1ZREVBPCB REVB, ROHS CAP, SMD, 0603, 0.056µF, Kemet C0603X563K5RAC7867 50V, 10%, X7R, ROHS CAP, SMD, 0805, 1.0µF, C8, C10, C11 C2012X7R1E105K 25V, 10%, X7R, ROHS CAP-AEC-Q200, SMD,1206, 2.2µF, 25V,... - Page 9 ISL73847MDEMO1Z Demonstration Board Manual Reference Designator Description Manufacturer Manufacturer Part TRANSISTOR, RAD Q3, Q4, Q6, Q7 HARD, 40V GAN FET, 4P, Renesas Electronics ISL70020SEHX/SAMPLE CLCC, ROHS IC-PROTO, RAD-HARD, Q2, Q5 100V, GAN FET, 4P, CLCC, Renesas Electronics ISL70023SEHX/SAMPLE ROHS IC-GAN FET DRIVER,...
-
Page 10: Board Layout
ISL73847MDEMO1Z Demonstration Board Manual Reference Designator Description Manufacturer Manufacturer Part BUMPONS,0.44inWx0.20in Four corners H,CYLINDRICAL SJ-5003 (BLACK) DOME,BLK,ROHS TP1, TP2 Board Layout Figure 8. Silkscreen Top Layer Figure 9. Top Layer R34UZ0014EU0101 Rev.1.01 Page 10 May 13, 2024... - Page 11 ISL73847MDEMO1Z Demonstration Board Manual Figure 10. Layer 2 Figure 11. Layer 3 R34UZ0014EU0101 Rev.1.01 Page 11 May 13, 2024...
- Page 12 ISL73847MDEMO1Z Demonstration Board Manual Figure 12. Layer 4 Figure 13. Layer 5 R34UZ0014EU0101 Rev.1.01 Page 12 May 13, 2024...
- Page 13 ISL73847MDEMO1Z Demonstration Board Manual Figure 14. Layer 6 Figure 15. Layer 7 R34UZ0014EU0101 Rev.1.01 Page 13 May 13, 2024...
- Page 14 ISL73847MDEMO1Z Demonstration Board Manual Figure 16. Bottom Layer Figure 17. Silkscreen Bottom Layer R34UZ0014EU0101 Rev.1.01 Page 14 May 13, 2024...
-
Page 15: Typical Performance Graphs
ISL73847MDEMO1Z Demonstration Board Manual Typical Performance Graphs Unless otherwise noted, V = 1V; L = 220nH per phase, C = 2.64mF per phase, C = 56nF, C = 100nF, DROOP VREF = 0Ω, R = 94.2kΩ, C = 22nF, C = 8.2nF, R... -
Page 16: Ordering Information
ISL73847MDEMO1Z Demonstration Board Manual Unless otherwise noted, V = 1V; L = 220nH per phase, C = 2.64mF per phase, C = 56nF, C = 100nF, DROOP VREF = 0Ω, R = 94.2kΩ, C = 22nF, C = 8.2nF, R = 4.22kΩ, C... - Page 17 IMPORTANT NOTICE AND DISCLAIMER RENESAS ELECTRONICS CORPORATION AND ITS SUBSIDIARIES (“RENESAS”) PROVIDES TECHNICAL SPECIFICATIONS AND RELIABILITY DATA (INCLUDING DATASHEETS), DESIGN RESOURCES (INCLUDING REFERENCE DESIGNS), APPLICATION OR OTHER DESIGN ADVICE, WEB TOOLS, SAFETY INFORMATION, AND OTHER RESOURCES “AS IS” AND WITH ALL FAULTS, AND DISCLAIMS ALL WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, WITHOUT LIMITATION, ANY IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, OR NON-INFRINGEMENT OF THIRD-PARTY INTELLECTUAL PROPERTY RIGHTS.
