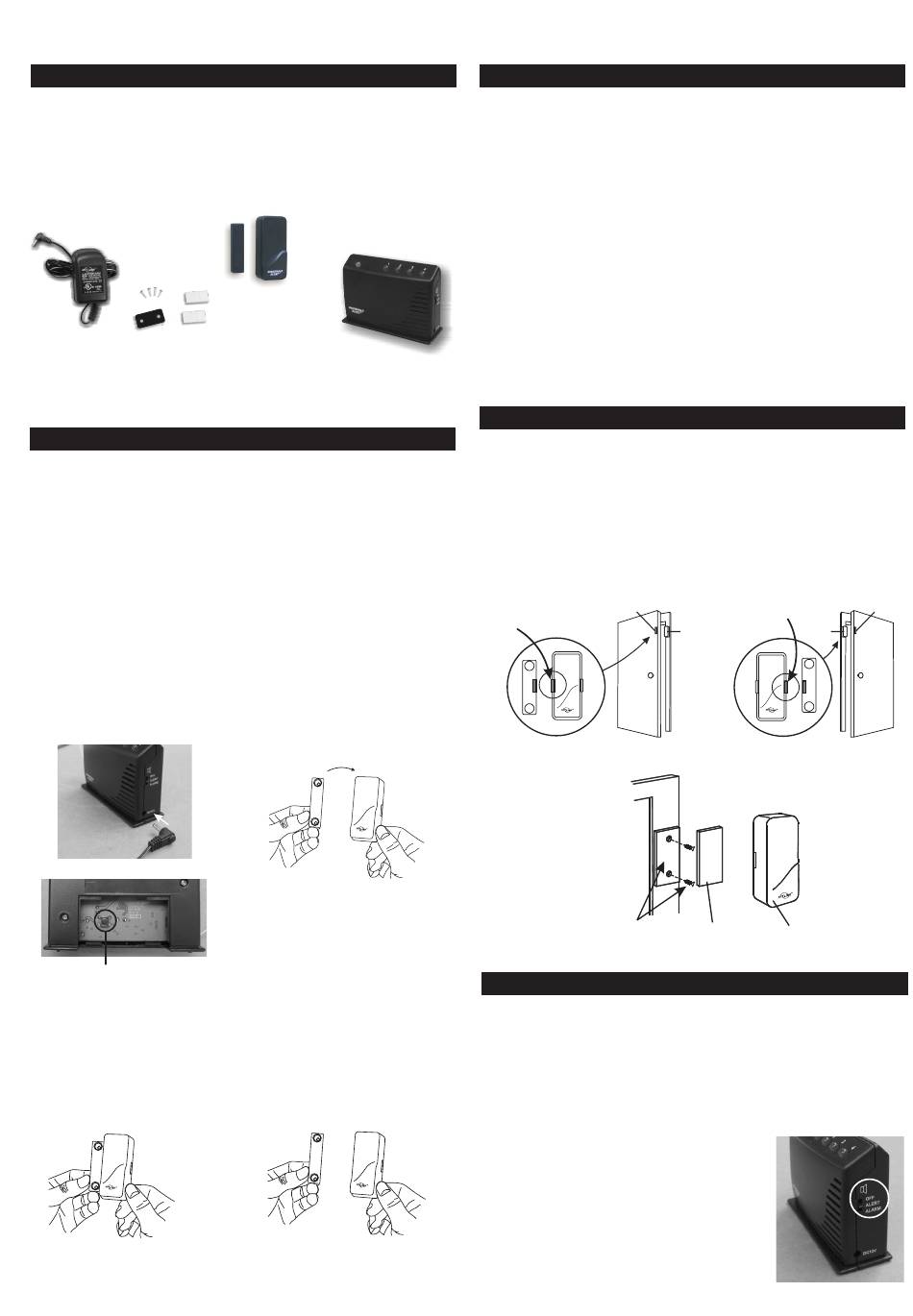

SkyLink WD-434RTL Manual

Wireless Door/Window Alert
1. INTRODUCTION
The Wireless Door/Window Alert is designed to monitor any door or
window within your house. When the monitored window or door is
opened, the receiver will flash along with alert beeping or alarm.
In this package, you should find a sensor, a magnet, a Household Alert
receiver, an adapter, 3V lithium battery (installed) and other mounting
accessories.
Magnet
Adapter
Mounting
Accessories
Please follow the instructions below to setup your door / window
sensor and the receiver.
2. PROGRAMMING
The sensor must be programmed to the Household Alert
Receiver before they can communication. You may program the sensor
to one of the 4 zones. Follow the instructions below;
1. Plug in an AC adapter to the receiver.
2. Power up the Receiver unit. The green LED will be on indicating it
is turn on.
3. Open the back cover and there is a learn button. Press and hold
this learn button for 5 seconds, until both green LED and zone 1
red LED flash. You may now release the learn button.
4. If you would like to program the sensor to zone 1, activate the
sensor while the zone 1 red LED is flashing. Activate the Sensor
by separating the magnetic contact from the sensor.
5. If you would like to program the sensor to other zones, press the
learn button again, until the red LED flashes at the zone you want
to program the sensor to, then activate the sensor.
6. Once the sensor is programmed, the green LED will be steadily on
and none of the red zone LEDs will be on.
Plug in the adapter to the receiver
Learn Button
Note: Each zone can program up to 4 sensors. If you try to program a
fifth sensor into a zone, the first programmed sensor will be erased.
Test Sensor
After learning the sensor to the Receiver unit, you may test the com-
munication by placing the magnet beside the sensor (where the red
marking is) and remove the magnet from the sensor.
When the magnetic is closed, the
receiver will not beep.
Model WD-434RTL
Sensor
®
Household Alert
Long Range Receiver
®
Long Range
Separate the magnet from
the sensor, Receiver zone LED
stops flashing.
When the magnetic contact is broken (open),
the receiver will beep and zone LED will flash.
2. PROGRAMMING (CONT)
1) Zone LED of this sensor will flash.
2) Beeping according to the zone number [Operating mode is set to
"Alert"]. 1 beep for zone 1, 2 beeps for zone 2 and etc, until the
magnetic contact is closed.
®
Erasing a sensor
You cannot erase a specific sensor. You must erase all sensors from
the receiver, then program the ones you would like to keep. To erase all
the sensors from the receiver:
1. Remove the adapter from the receiver.
2. Open the back cover, press and hold the learn button. Do not release
the learn button until step 4.
3. While holding onto the learn button, plug in the adapter to the receiver.
4. You may release the learn button when the LEDs on the receiver are
on.
5. You have erased all sensors from the receiver.
The transmitters should be mounted on the door frame or window frame
by double sided tape. The magnet should be mounted on the door or
window by either double sided tape or screws. Make sure the magnet is
aligned with the red marking on the transmitter. If the surface of the frame
is flat enough, double-sided foam tape is sufficient, otherwise, it is
recommended to screw the mounting plate to the frame, then apply
double sided tape. After mounting the sensor, if the Skylink logo is
inverted, remove the front cover and rotate it so the Skylink logo is in the
upright position.
"Red Marking"
on the side
Mounting plate
and screws (optional)
There are 3 different operating modes for the Household Alert
Range Receiver.
1) Alert - Beeps when a sensor is activated, corresponding zone LED
will also flash.
2) Alarm - Sounds an alarm when a sensor is activated, corresponding
zone LED will also flash.
3) Off - No audio sound will be emitted when sensor is activated.
Zone LED will flash to indicate the activated
sensor.
To select the operating mode, place the
slide switch on the side at the desired setting:
OFF - No Audio
ALERT - Alert Mode
ALARM - Alarm Mode
3. INSTALLATION
"Red Marking"
Magnet
on the side
Sensor
Double-sided
Sensor
foam tape
4. OPERATION
Magnet
Sensor
®
Long
