SkyLink WD-434 Setup

Door/Window Alert

1. INTRODUCTION

The Door/Window Alert is designed to monitor any door or window
within your house. When the monitored window or door is opened, the
receiver will alert you. It will beep and flash.

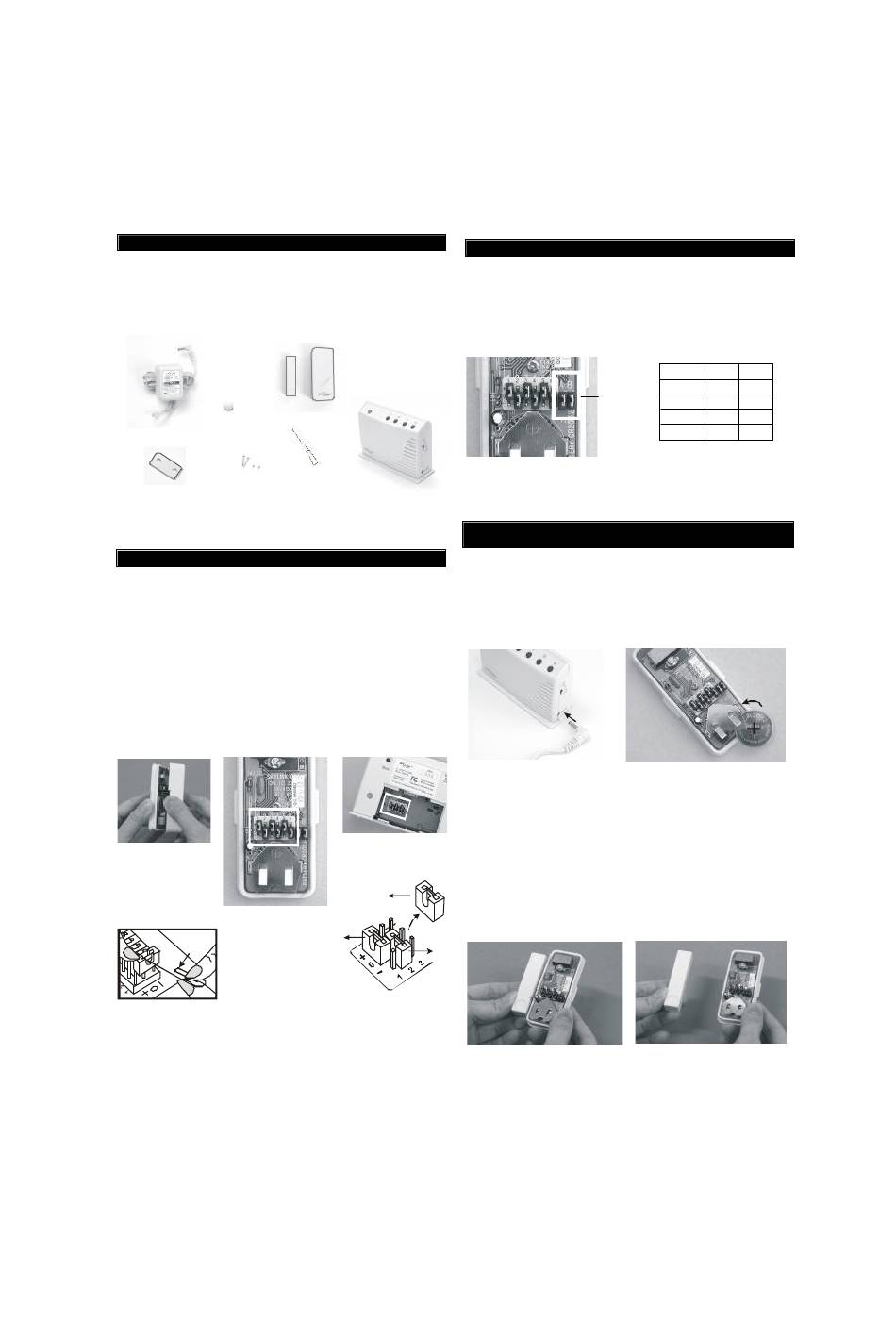

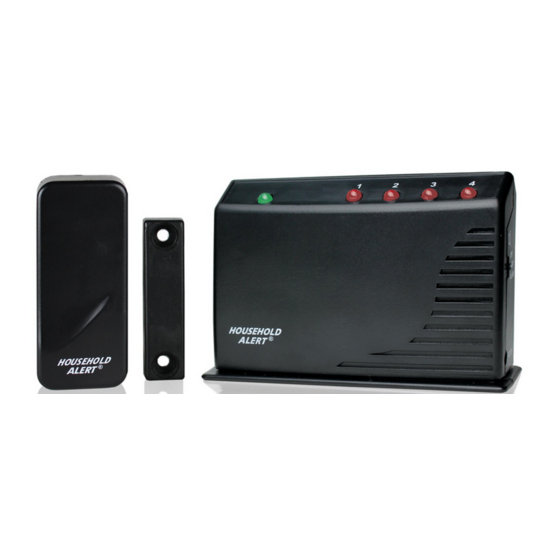

In this package, you should find a sensor, a magnet, a Household Alert
receiver, an adapter, 3V lithium battery, a clip and other mounting
accessories.
Magnet
3V Lithium
Adapter
battery
Clip
2 pcs 3.5 x 18 screws
2 pcs 3.5 x 12 screws
Mounting plate
Please follow the instructions below to set up the door / window sensor
and the receiver.

2. SET UP CODE CONNECTORS AND ZONE CONNECTORS

1. CODE CONNECTORS
In order for the sensor to communicate with the receiver properly, the
sensor's code must match with the receiver's code. Code connectors 1
to 6 can be found by opening the top cover of the sensor and the back
cover of the receiver. User is required to set these code connectors
randomly and the code settings on the sensor and receiver must be the
same. Each position of the code connector can be set to "+", "-" or "0"
position. Refer to the diagram below to set the code connectors
properly. If the connector is placed on the top and middle posts, that
column is set on " + ". If the connector is placed on the middle and bottom
posts, that column is set on " - ". If the connector is removed completely,
(not placed on any posts), it is set to " 0 ". (see diagram for examples of
how to set a column to the three different positions).
Open the top cover
Code Connectors on Sensor
Clip
Note: A connector can be
removed with the clip,
as shown.
Note: If you experience interference from a nearby system, which could
accidentally trigger your system, please change the code settings on the
sensor and receiver. The code setting on the sensor and receiver should
still match after changing the code setting.
Model WD-434
2. SET UP CODE CONNECTORS AND ZONE CONNECTORS (CONT)
2. ZONE CONNECTORS
Each receiver can work with up to 4 different sensors (to represent 4
different zones on the receiver). There are 2 connectors that determine
®
the zone number 1, 2, 3 and 4. These 2 connectors can be found by
opening the top plastic cover, near the code connectors with marking "A" &
"B". Please follow table 1 to set the zone.
Sensor
"+" in the table means the connec tor for that position should be placed on
®
Household Alert
the posts.
Receiver
"-" in the table means the connector for that position should be removed.
After setting up all the connectors, both units are ready to be powered up.
Plug in the adapter to the receiver, the green LED will start flashing
indicating the receiver unit is powered up but no sensor is detected.
Remove the top cover of the sensor and insert the 3V lithium battery to
the sensor as shown in the diagram.
Plug in the adapter to the receiver
Before inserting the battery, keep the magnet away from the sensor.
After inserting the battery to the door / window sensor, the receiver will
beep and flash. If the door / window sensor is set to zone 1, zone 1 red
LED will flash. The beeping and flashing will continue until the magnetic
Code Connectors on Receiver
contact is close to the sensor.
You are now ready to install the sensor and the magnet to a door or
window.
' '
0
Note: The receiver may not be able to receive the signal from the sensor
properly if they are too close to each other. Move the sensor further from
the receiver to test again.
'+'
'-'
When the magnetic contact is
closed, the receiver will not beep.
Zone 1
Zone
Zone 2
connectors
Zone 3
Zone 4
Table 1
3. POWER UP THE HOUSEHOLD ALERT
RECEIVER AND DOOR/WINDOW SENSOR
Insert 3V lithium battery to the sensor
When the magnetic contact is broken (open),
the receiver will beep and a LED will flash.
A B
+ +
+ -
- +
- -
®
"+" positive
side up
