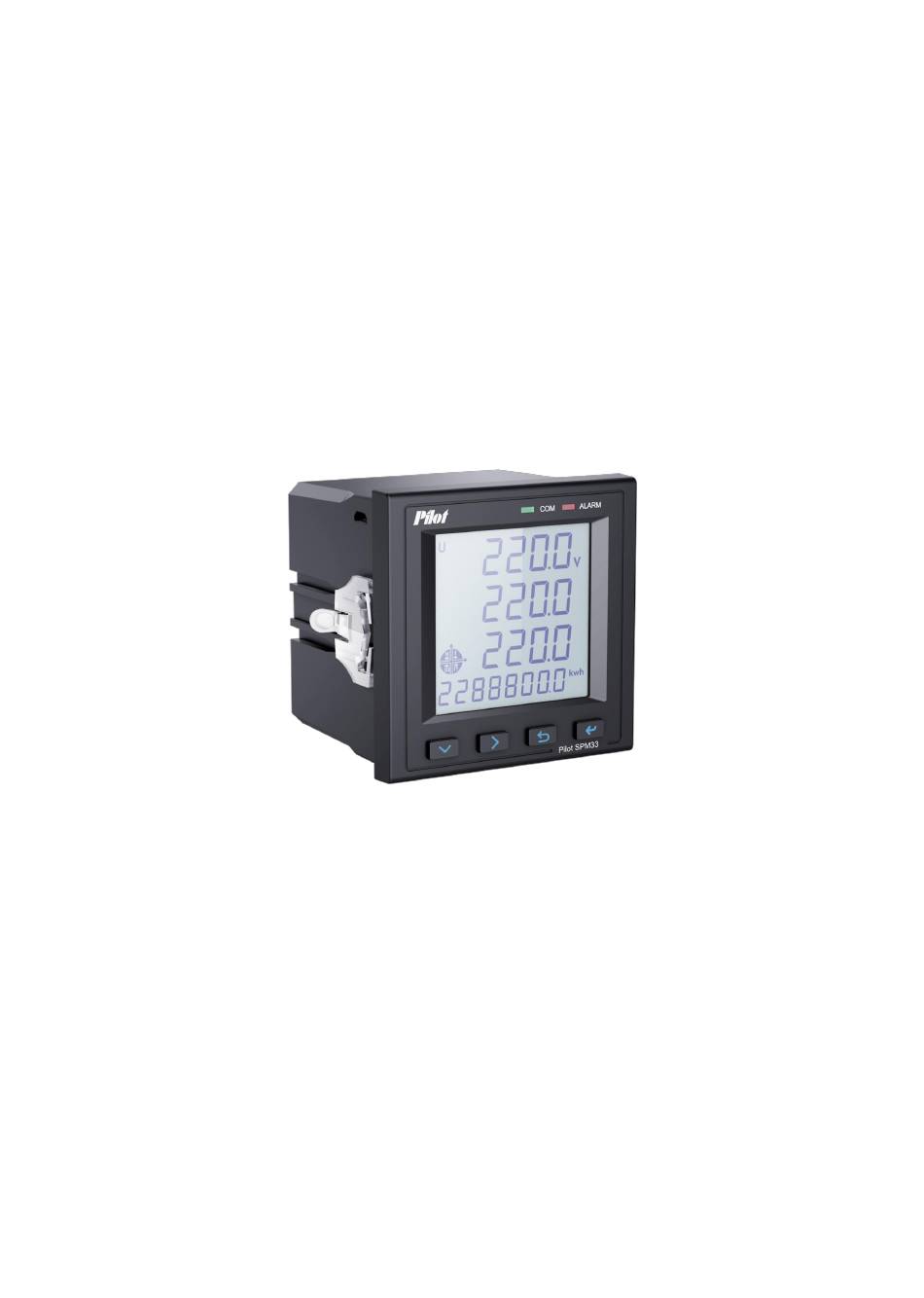

- Page 1 Multifunction Power Meter Model: SPM33 (2020) Installation & Operation Manual V3.1 Zhuhai Pilot Technology Co., Ltd.
-
Page 2: Danger And Warning
Danger and warning! This device can be installed only by professionals. The manufacturer shall not be held responsible for any accident caused by the failure to comply with the instructions in this manual. Risks of electric shocks, burning, or explosion This device can be installed and maintained only by qualified people. -
Page 3: Table Of Contents
CONTENTS 1. General Information ..................1 2. Order Information .................... 2 3. Dimension and Installation ................3 3.1 Dimension ....................3 3.2 Installation ....................3 4. Display and Keys-press Operation ............... 4 4.1 Display instruction ...................4 4.2 Keys ......................5 4.3 Real-time data display procedure ............6 4.4 Setting menu and procedure ..............7 5. - Page 4 5.10 Max. & Min. data ................. 22 5.11 Load run statistics ................22 5.12 Load impedance ................. 23 5.13 Current K factor ...................23 5.14 Voltage crest factor ................24 5.15 Current TDD ..................24 5.16 Operation record .................24 5.17 Four-quadrant Energy ................ 24 6.
-
Page 5: General Information
1. General Information SPM33 Three Phase Multifunction Power Meter is designed for monitoring and displaying all kinds of electricity parameters in voltage system below AC 650KV (ph-N). It has one RS485 port and support Modbus-RTU communication protocol. . SPM33 provides the main measuring function as below: Real-time measuring data include: ... -
Page 6: Order Information
②: Optional DI/ DO (single choice) 4 status input (wet contact) + 2 relay out 4 status input (dry contact) + 2 relay out Example: SPM33-R, it means the device provides basic measuring function, one RS485 port, 2 digital input, 2 relay output. -
Page 7: Dimension And Installation
3. Dimension and Installation 3.1 Dimension unit：mm 81.00 96.00 10.70 62.60 89.40 3.2 Installation unit：mm... -
Page 8: Display And Keys-Press Operation
4. Display and Keys-press Operation 4.1 Display instruction 1: Prompt of the currently displayed page. 2: Unit. 3: Data display area.. 4: Communication indicate LED 5: Alarm indicate LED. Remark: If there is no key operation within 60s, the backlight automatically turns off, when the backlight is lit until the button operation again. -
Page 9: Keys
4.2 Keys Note: In a different interface, the same keys have different functions. Sibling menu switch/ Modify data Switching sibling menu to submenu / Move the cursor to the left Exit Enter the menu / Confirm... -
Page 10: Real-Time Data Display Procedure
4.3 Real-time data display procedure Main menu Submenu Phase voltage Line voltage Three-phase voltage angle Three-phase current / zero Three-phase current angle sequence current Three-phase / total reactive power Three-phase/total Three-phase / total apparent power active power Three-phase / total power factor Output active energy Total active energy Input active... -
Page 11: Setting Menu And Procedure
4.4 Setting menu and procedure 1. CT primary 2. CT secondary (view only) 3 PT. primary 4. PT. secondary 5. Comm add 6. Baudrate 7. Wiring mode 8. Current input grade 9.Demand mode 10. Demand interval (period) - Page 12 11.Demand sub-interval (slip) 12. Clear energy 13. Clear demand 14. Clear SOE 15. Clear operation record 16. Clear Max./Min. data 17. Time setting 18. Password 19. DEMO 20. Pulse output LED 21. Version (view only)
- Page 13 Setting procedure as below: Setting Default password: 01 CT primary Range: 1~50000A. CT secondary View only, can not set. PT primary Range: 0.01~650.00 kV. PT secondary Range: 100~400V. Communication address Address: 1~247. Baudrate Range: 4800, 9600, 19200 bps 3D: 3-phase 3-wire Wiring mode 4Y: 3-phase 4-wire 1P: Single phase (A phase)
- Page 14 Remark 1. Input super password “33”, the device will display the original password. 2. In 3-phase 3-wire mode, the device displays total power only (total P, total Q, total PF). Per phase power value will be 0. 3. If the devices don’t have optional relay function, there is no setting relay menu 4.
-
Page 15: Measuring Capability
5. Measuring Capability 5.1 Real-time basic electrical parameters 5.1.1 Voltage SPM33 maximum direct input phase voltage is 400V (ph-N), and line voltage is 500V (ph-ph). Users should be noted this to prevent internal measuring circuit saturation, avoid inaccurate measurements. For high voltage (>500V) measurement, Users need to connect with PT. -
Page 16: Demand Value
5.2.1 Real-time demand Demand value is accumulated value during a specified period divided by the length of that period. SPM33 adopts 2 modes to calculate the demand: Fixed Block and Rolling Block. Users can set demand interval as 5min, 10min, 15min, 30min or 60min. - Page 17 1 or 2 or 3 1 or 2 or 3 or 4 SPM33 provides real-time demand data and peak demand for current (per phase) / active power/ reactive power/ apparent power (per phase and total). User can read the demand from LCD and communication, and can clear demand data to 0.
-
Page 18: Monthly Peak Demand
Below figure is one example of Rolling Block mode: (Demand intervals is 10 mins, subintervals is 2 mins.) 5.2.2 Forecast demand SPM33 provides data of forecast demand. The data need to be read by RS485 communication. 5.2.3 Monthly peak demand. -
Page 19: Multi-Tariff Energy
Tariff (rate): there are 4 rates, in every period of time, user need to set rate. 5.5 History Energy Data SPM33 record the history active energy data ( total kWh) ： （1） Monthly total kWh in last 12 months. （2） Yearly total kWh in last 10 years. -
Page 20: Unbalance Parameters
THD can be read through LCD display and RS485 communication. Each individual harmonic just can be read by RS485 communication. 5.7 Unbalance parameters SPM33 measures current and voltage negative sequence, positive sequence and zero sequence component, and calculates the voltage unbalance and current unbalance, the formula as below:... -
Page 21: Alarm Setpoint
5.8 Alarm setpoint SPM33 with user definable valued system which can monitor the electrical parameters of the instrument and set the action. When an alarm event occurs, the instrument panel ALARM LED will flash, meanwhile, the display can be switched to the alarm interface to see the type of alarm events, or read the type of alarm through communication, after the elimination of alarm events , ALARM LED will destroy , warning interface will appear as "no."... - Page 22 The lower limit of alarm. Min. primary current (≠0) < Lower limit current The upper limit of Frequency >Upper limit Setting value to frequency 0 means unable alarm. The lower limit of Frequency (≠0) < Lower limit frequency The upper limit of Total active power (primary) >...
- Page 23 5.8.1 Alarm trigger condition When the setting object meets the trigger condition, and meanwhile it also meets the time requirements, then it will trigger alarm. Throughout the delay time, if the setting object restore within limits, then the alarm setpoint is not activated. If the delay time is 0, it means that once the monitoring object exceeds the limit, it will alarm immediately.
- Page 24 5.8.2 Alarm output When the alarm event occurs, users can check the alarm event from LCD or communication. If the alarm associated one relay, the relay will trigger. Once the alarm disappears, the ALARM LED will be off, and the associated relay will restore.
- Page 25 Bit15 DI 2 switch off For example: On SPM33 LCD, it shows alarm information: C005, then, convert it to binary is “ 1100 0000 0000 0101”, it means there are 4 alarm events: Over-voltage, Over-current, Phase error, DI2 switch off.
-
Page 26: Soe Event Log
5.9 SOE event log SPM33 supports to record 64 pieces of SOE event log, user can read the event log by RS485 communication. The time for event is using UNIX format, resolution is 1ms. UNIX time is the number of seconds that have elapsed since 00:00:00 UTC on 1... -
Page 27: Load Impedance
5.12 Load impedance SPM33 measures 3 phase load impedance and total load impedance. The load impedance is judged by the active power (P) and reactive power (Q). When P=0, Q=0, it is resistive impedance when P>0 and Q>0, it is inductive impedance;... -
Page 28: Voltage Crest Factor
1ms. UNIX time is the number of seconds that have elapsed since 00:00:00 UTC on 1 January 1970 If users use the SPM33 testing software to read the event log, it shows the information as below: Events... -
Page 29: Input/Output Characteristics
6. Input/output Characteristics 6.1 Digital input SPM33 provides 2 digital input (wet contact) which can be applied to monitoring circuit breaker position signal, switch position signals and other status information. SPM33 can provide optional 4 digital input (wet contact or dry contact) . -
Page 30: Relay Output
Or, the relay can be set to remote control mode. Users can remote control the relay according to project requirement. SPM33 provides two relay operation modes. The action of relay is different in these two modes. The default control mode of this product is remote control. -
Page 31: Technical Specification
7. Technical Specification AC 85~265V Aux. power supply or DC 100~300V Rated input current 5A or 1A 3×220Vph-N/380Vph-ph, Rated input voltage 3x 57.7Vph-N/ 100Vph-ph via PT, 40Hz~70Hz Wet contact type: Rated voltage 220VAC. If power <60V, DI is OFF, if power > 140V, DI is ON. Digital input Max. - Page 32 PT primary max. 650kV 5mA ~6.5A Current 0.2% CT primary max. 50,000A Frequency 0.1% 40~70Hz Power factor -1.000~1.000 1.0% Active energy 0~99999999.9 kWh 0.5% Reactive energy 0~99999999.9 kvarh 2.0% Per phase: 0 ~ ± 9999MW Active power 0.5% Total: 0 ~ ± 9999MW Per phase: 0 ~ ±...
- Page 33 Voltage dips, short IEC61000-4-11:2004 interruptions immunity Pass (GB/T17626.11-2008) test Rated insulation voltage≤300V，The test voltage 2000V。 Power frequency IEC62052-11: 2003 Rated insulation withstand voltage (GB/T 17215.211-2006) voltage≤60V，The test voltage 1000V。 Leakage current ≦10mA。...
-
Page 34: Maintenance And Trouble Shooting
8. Maintenance and Trouble Shooting Possible Possible cause Possible solution problem Check if the correct working There is no voltage has been imposed on the display on The power supply fails L/+ and N/- terminals of the device after to be imposed on the meter. - Page 35 Check if the current terminals of the same name are wrong. Check if the types of external The digital input The voltage relating to nodes match the rated status no digital input is not parameters of the meter. changing. correct. Check if the external connection is correct.
-
Page 36: Terminals Definition
9. Terminals Definition Def. Instruction Def. Instruction Positive pole of 485+ RS485 positive pole power supply Null SHLD RS485 shield Negative pole of Phase A voltage power supply Null Phase B voltage Status input 1 Phase C voltage Status input 2 Neutral line Status input public Phase A current... - Page 37 Optional E1 and E4 terminals Def. Instruction Def. Instruction Status input 3 Relay 3 output 1 Status input 4 RL3N Relay 3 Output 2 Status input 5 Relay 4 output 1 Status input 6 RL4N Relay 4 Output 2 Status input public Null Null Null...
-
Page 38: Typical Connection
10. Typical Connection SPM33 supports multiple connection modes of measurement, the following methods were used icons explained. 3-phase 4-wire system 3-phase 3-wire system ■ 3-phase 4-wire system, 3CT VA VB VC VN I11 I12 I21 I22 I31 I32 ■ 3-phase 4-wire system, 3PT, 3CT... - Page 39 ■ 3-phase 3-wire system, 3CT VA VB VC VN I11 I12 I21 I22 I31 I32 ■ 3-phase 3-wire system, 2CT VA VB VC VN I11 I12 I21 I22 I31 I32 ■ 3-phase 3-wire system, 2PT, 3CT VA VB VC VN I11 I12 I21 I22 I31 I32...
- Page 40 ■ 3-phase 3-wire system, 2PT, 2CT VA VB VC VN I11 I12 I21 I22 I31 I32 SPM33 typical wiring diagrams, comprehensive electrical parameters measuring under 3-phase 4-wire mode, with digital status inputs and one RS485 communication function: SPM33 Power Status...
- Page 41 Notice: PILOT reserves the right to modify this manual without prior notice in view of continued improvement Contact email: pilot166@pmac.com.cn Zhuhai Pilot Technology Co., Ltd. Add:No.15,keji6Road,Chuangxin Haian,Tangjia High-tech Zone,Zhuhai,Guangdong,519085 China Tel: +86-756-3629687/3629688 Fax: +86-756-3629600/3629670 http://www.pmac.com.cn...
