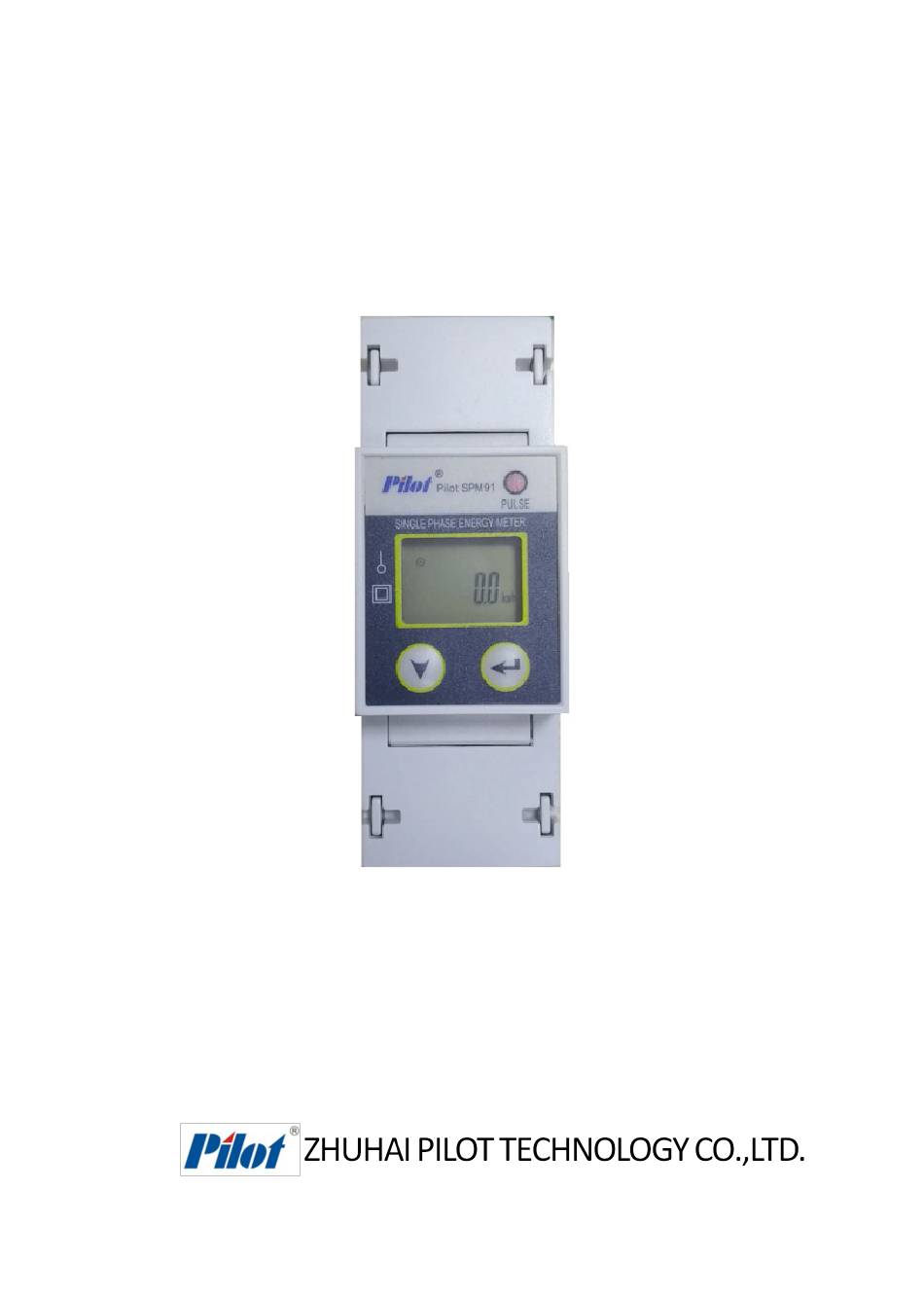

- Page 1 SPM91 DIN Rail Single Phase Energy Meter Installation & Operation Manual V1.7...
- Page 2 Danger and warning! This device can be installed only by professionals. The manufacturer shall not be held responsible for any accident caused by the failure to comply with the instructions in this manual. Risks of electric shocks, burning, or explosion This device can be installed and maintained only by qualified people.
-
Page 3: Table Of Contents
CONTENTS 1. General Information..................... 2 2. Features..........................2 3. Order Information......................3 4. Figure and Installation Dimension................3 5. Wiring..........................4 6. Display and Keys......................4 6.1 Display Instruction....................4 6.2 Menu Description....................5 7. Main Technical Data.....................8 8. Communication Protocol...................10 DLT645-2007 communication protocol register address.......12... -
Page 4: General Information

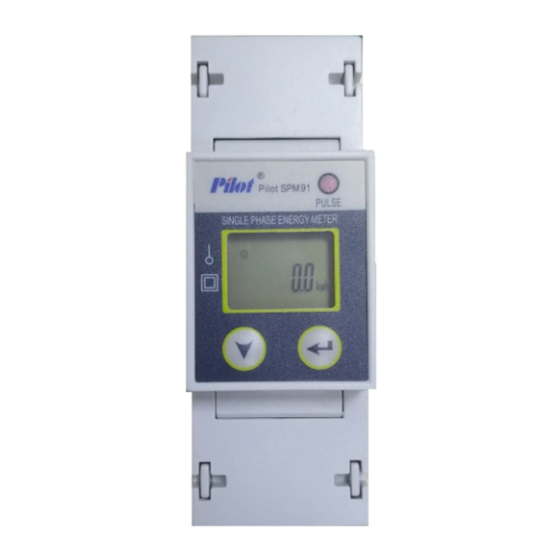

1. General Information SPM91 DIN rail energy meter is a kind of new style single phase whole electronic type meter. The meter is completely conformed to the relative requirements of the International Standard IDT IEC 62053-21:2003 (Class 1). It is an integration of up-to-date micro-electronics technique, special large scale integrate circuit, advanced technique of digital sampling technique and SMT techniques etc. -
Page 5: Order Information
3. Order Information 4. Figure and Installation Dimension SPM91 dimension: (Unit: mm) SPM91 installation... -
Page 6: Wiring
5. Wiring SPM91 is directly connection type, (maximum rated current ≤ 63A) Wiring as shown below: Pulse interface is passive, range of cut-in power: 5-30Vdc. 6. Display and Keys 6.1 Display Instruction A: Communication prompt B: Reverse prompt C: Run prompt... -
Page 7: Menu Description
Device panel has an indicator light: PULSE. It is indicator light for pulse output：For each pulse output, the indicator light flashes once, synchronous pulse output. 6.2 Menu Description 6.2.1 Real-time Data Query After power on, short press flip key, users can cycle query active energy, voltage, current, active power. - Page 8 (1) VEr represent version number, (2) bAU represent baud rate , (3) Adr represent address. (4) Pro represent communication select 6.2.3 Configuration Data Modify Under the configuration data query interface, long press (> 3S) Enter key to enter the configuration data modification interface, but entering the configuration data modification interface need to enter the correct password, the default password is "0000", if enter the wrong password, the meter will prompt error, and automatically back to the configuration data query interface.
- Page 9 After entering the configuration data modification interface, short press the flip, can cycle query prompt of baud rate (bAU) , baud rate, prompt of address (Adr) , address, prompt of password (PSd) , password, clear energy prompt (CLr), clear energy command options.
-
Page 10: Main Technical Data
◆ Setting Example-1: Modify Communication Address 1. Long press (> 3S) Enter key to enter the configuration data modification interface, enter the correct password 2. Short press the flip key, enter the Adr menu. 3. Short press the Enter key, the address data starts flashing. 4. - Page 11 Input frequency 50Hz or 60Hz Power supply self-supply 230V, (184V-275V) Starting current 0.4%Ib Power consumption <2W Insulating property Power frequency withstand voltage: AC 2 KV Impulse withstand voltage: 6KV Accuracy Class 1 ( IEC62053-21) Pulse output 1000imp/kWh Communication RS485 output, Modbus-RTU protocol Address: 1~247 Baud rate: 2400bps, 4800bps, 9600bps Connection mode...
-
Page 12: Communication Protocol
Radiated Emissions EN55022, Class B 8. Communication Protocol SPM91 support standard Modbus communication protocol, and support 0x03 and 0x10 command. Please refer to below registers list. Because some data is too long, the device uses two registers to present. And these data is transits in way of “low byte in the former, high byte in the back”. - Page 13 40004 Current × 0.001, unit: A Low byte in the back, high byte in the former. 40005 40006 Active power × 0.1, unit: W The highest byte is the sign byte. 40007 40008 Apparent power × 0.1, unit: VA The highest byte is the sign byte. 40009 40010 Reactive power...
-
Page 14: Dlt645-2007 Communication Protocol Register Address
40028 Energy decimal point Default is 1, unit: KWH display setting Set 1: LCD display 0.1, Modbus x 0.1 Set 2: LCD display 0.01, Modbus x 0.01 Set 3: LCD display 0.001, Modbus x 0.01 Configuration parameter register (0x10 RW) 40202 Range:1-247 Modbus address... - Page 15 block XXXXXX.X Negative active energy XXXXXX.X Negative active energy data block XXXXXX.X kvarh Combination Q 1 energy XXXXXX.X kvarh Combination Q 1 energy data block XXXXXX.X kvarh Combination Q 2 energy XXXXXX.X kvarh Combination Q 2 energy data block XX.XXXX A-phase P XX.XXXX Instantaneous...
- Page 16 XX.XXXX kvar Instantaneous total Q data block XX.XXXX A-phase S XX.XXXX Instantaneous total S XX.XXXX Instantaneous total S data block XXX.X A-phase voltage XXX.X Voltage data block XXX.XXX A-phase current XXX.XXX Current data block XX.XX Grid frequency X.XXX A-phase power factor X.XXX Instantaneous...
- Page 17 Baud rade: 0-4800 1-9600 2-2400 0-MODBUS 1-DLT645 ....Software version ..number...
- Page 18 Notice: PILOT reserves the right to modify this manual without prior notice in view of continued improvement. Add: No. 15, Keji 6 Road, Chuangxin Haian, Tangjia High-tech Zone, Zhuhai, Guangdong, 519085 China Tel: +86-756-6931888 ext 6088 Email： marketing@pmac.com.cn http://www.pmac.com.cn...
