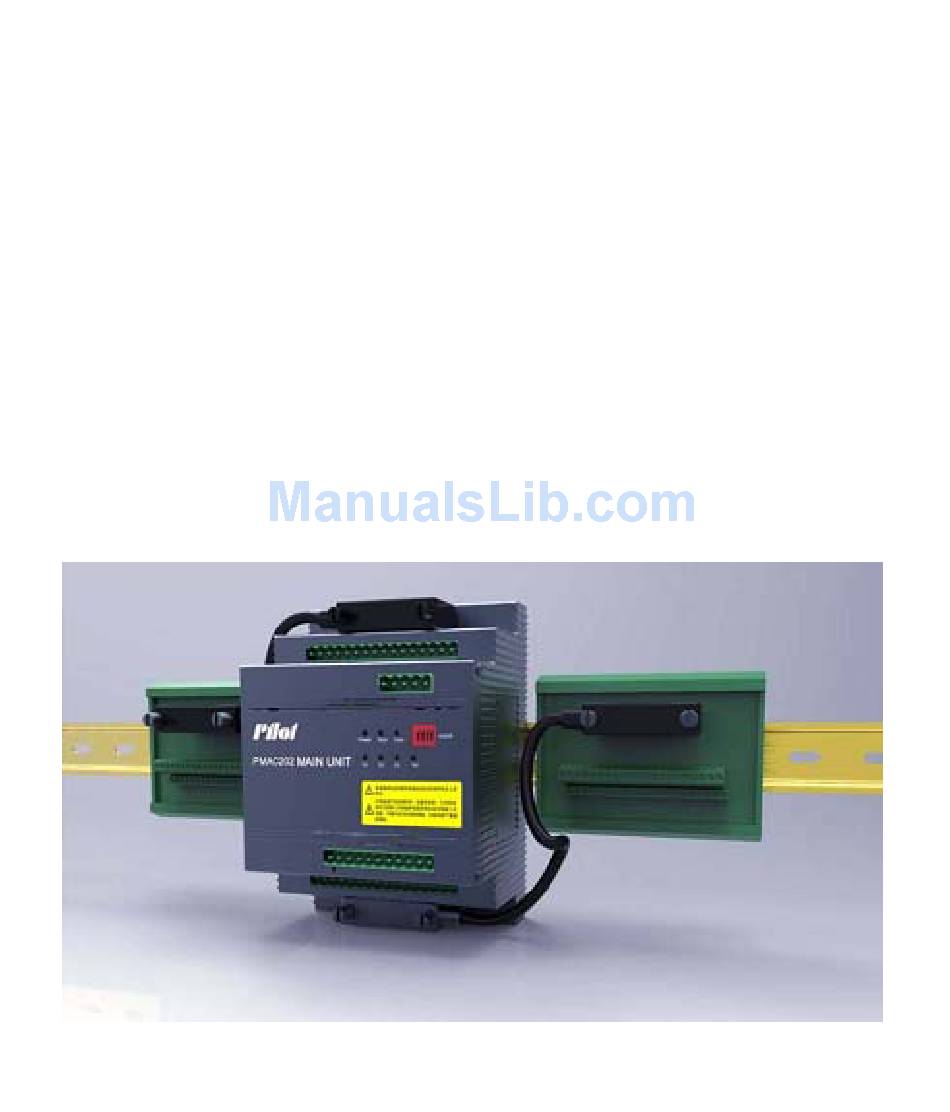

- Page 1 PMAC202 Branch Circuit Power Meter User Manual Installation & Operation Manual...
- Page 2 Danger and Warning! This device can be installed only by professionals. The manufacturer shall not be responsible for any accident caused by failure to comply with the instructions in this manual. Risks of Electric shocks, buring or explosion This device can be installed and maintained only by qualified people. Before operating the device, isolate the voltage input, power supply and short-circuit the secondary windings of all current transformers.
-
Page 3: Table Of Contents
Contents Contents 1. PRODUCT INTRODUCTION ........................... 2 1.1 Overview ................2 1.2 Product Features: ............... 2 1.3 HMI Human-Computer Interface ............2 1.4 Product Composition ..............3 2. PRODUCT PERFORMANCE AND FUNCTIONALITY ..................5 2.1 Product Model ................5 2.2 Product Function ................ 6 2.3 Technical Specification .............. - Page 4 Contents 5. DISPLAY AND OPERATION ..........................25 5.1 System Configuration ..............25 5.1.1 One way Incoming Line Configuration ..........25 5.1.2 Two way Incoming Line Configuration ..........25 5.1.3 One Main & One Backup Incoming Line Configuration ........26 5.1.4 Clear Energy ............... 26 5.1.5 Clear Maxim Value ..............
-
Page 5: Product Introduction
1. Product Introduction 1.1 Overview PMAC202 Branch Circuit Power Meter is specially designed for monitoring Power supply distribution cabinet in data center, which can monitor incoming circuit and outgoing circuit parameters, DI/DO status, fulfill monitoring for power supply distribution cabinet and alarming for abnormal voltage and current information. -
Page 6: Product Composition
1.4 Product Composition PMAC202 Branch Circuit Power Meter with module design which including Main-body module, Digital Input module, HMI module, CT module. According to different application to choose different configuration, following are two main typical application for reference: One Way Incoming Line：... - Page 7 Two Way Incoming Line： PMAC202 Branch Circuit Power Meter · 4...
-
Page 8: Product Performance And Functionality
L- One leakage current measuring, rated current 1A (primiary) TL- One loop temperature and One leakage current measuring ⑤ lternative W- Branch Circuit External Status input Dry connection W or Y Y- Branch Circuit External Status input Wet connection PMAC202 Branch Circuit Power Meter · 5... -
Page 9: Product Function
Over than setting current value will alarm, it is UP limit alarm and Over UP limit alarm Less than setting current value will alarm, it is Lower limit alarm and Over Lower limit Outgoing Line Underload alarming alarm PMAC202 Branch Circuit Power Meter · 6... -
Page 10: Technical Specification
5V ac, Range: 10%--200% rated, accuracy: 0.5% Communication port RS485 Outgoing: Wet contact signal input, 220Vac, 70%--120% rated value or Dry contact input Switch Status Incoming: Dry contact input Relay Capacity AC 250V/5A or DC 30V/5A PMAC202 Branch Circuit Power Meter · 7... -
Page 11: Emc Properties
Parameter Application Site Indoor Operating temperature -10 ~55 ℃ ℃ Storage temperature -25 ~70 ℃ ℃ Humidity 5%~95% RH, non-condensing IP Grade IP20, HMI (front panel) IP65 Insulation resistance No less than 100MΩ，IEC62052-11 PMAC202 Branch Circuit Power Meter · 8... -
Page 12: Installation
3. Installation 3.1 Main module Index ADDR Power MAIN UNIT Picture 3.1 Main Module Index Picture 3.2 Main Module Installation [Note]: Main Module is Din-rail installation PMAC202 BCPM User Manual · 9... -
Page 13: Main Module Installation Detail Drawing
3.1.1 Main Module Installation detail drawing Picture 3.3 Main Module Installation detail drawing 3.1.2 Main Module Dismantle detail drawing Picture 3.4 Main Module Dismantle detail drawing PMAC202 BCPM User Manual · 10... -
Page 14: Status Module Index
Status Module Address setting One Main Module can support 2 piece 21 loop Status Module, the address of status module setting by dial switch, setting dial switch as following Picture 3.6 Module Address PMAC202 BCPM User Manual · 11... -
Page 15: Ct Module Installation Index
Picture 3.7 CT Module Index 3.4 Outgoing Single Installation CT Index 3.4.1 CT Switching Module Index ADDR Power Run MAIN UNIT 本设备的安装和维护仅能由经过培训的专业人员 进行。 对设备进行安装操作前 应断开电源，打开所有 电压互感器二次绕组和短路所有电流互感器二次 绕组。不遵守适当的预防措施，可能导致严重触 电事故。 Picture 3.8 CT Switching Module Index PMAC202 BCPM User Manual · 12... -
Page 16: Single Ct Index
Each CT equip with 2.5M cable, Yellow cable connect with CT Switching module same terminal. One CT Switching module can connect with 21 CT, 100A single CT be fixed by 2 M3*8 screw from bottom to rear panel PMAC202 BCPM User Manual · 13... -
Page 17: 200A Single Ct Index
21 CT, 200A single CT be fixed by 2 M3*8 screw from bottom to rear panel 3.5 Incoming Line Leakage Current Transformer Index Picture 3.12 Incoming Line Leakage Current Transformer [Note]: Incoming Line Leakage Current Transformer standard is 250A PMAC202 BCPM User Manual · 14... -
Page 18: Hmi Module Index
3.6 HMI Module Index Picture 3.13 HMI Module Index Picture 3.14 HMI Installation [Note]: HMI Embedded panel mounting PMAC202 BCPM User Manual · 15... -
Page 19: Connection Wiring
24V DC power supply 2 kWh Pulse output 24V2+ Pulse+ Null Null 24V1- 24V DC power supply 1 24V1+ 1-4 DI Status 24VO- 24V DC power output 24VO+ 485A- RS485 communication DI Status Common Terminal PMAC202 BCPM User Manual · 16... -
Page 20: Switching Value Module Terminals
DI 11 Input DI Status Common Terminal 4.3 CT Module Terminals One CT module can connect with 21 branch circuits, each branch circuit cross the CT follow by phase ABC and repeated as below: PMAC202 BCPM User Manual · 17... -
Page 21: Hmi Power Connection
2. If has Status module, power supply from last status module 24V DC power supply output terminal For Two way Imcoming line can exchange HMI power supply by one 24V relay, as following picture: PMAC202 BCPM User Manual · 18... -
Page 22: Incoming Line Connection Wiring
4.5 Incoming Line Connection Wiring PMAC202 BCPM User Manual · 19... -
Page 23: Outgoing Line Connection Wiring
4.6 Outgoing Line Connection Wiring Note: When there is just one 21 loop CT module, the CT module just can connect with Main module PortA PMAC202 BCPM User Manual · 20... -
Page 24: One Way Incoming Line System Connection Wiring
Module 4 ■ □ □ □ ■Configuration needed 21 or 42 □Configuration no need ■ ■ □ □ 63 or 84 ■ ■ ■ □ 105 or 126 ■ ■ ■ ■ 147 or 168 PMAC202 BCPM User Manual · 21... -
Page 25: Two Way Incoming Line System Connection Wiring
Main Main Main Main Note Line Module 1 Module 2 Module 3 Module 4 Circuits ■ □ ■ □ ■Configuration needed 21 or 42 □Configuration no need ■ ■ ■ ■ 63 or 84 PMAC202 BCPM User Manual · 22... -
Page 26: One Main & One Backup Incoming Line System Connection Wiring
4.9 One Main & One Backup Incoming Line System Connection Wiring PMAC202 BCPM User Manual · 23... -
Page 27: Multi Main Module Address Setting
4.10 Multi Main Module Address Setting Module Main Module Dial Switch Setting PMAC202 1 1 2 3 4 PMAC202 2 1 2 3 4 PMAC202 3 1 2 3 4 PMAC202 4 1 2 3 4 PMAC202 BCPM User Manual · 24... -
Page 28: Display And Operation
5.1.1 One way Incoming Line Configuration Configuration as One way incoming line mode, as picture 5.1 Picture 5.1 5.1.2 Two way Incoming Line Configuration Configuration as Two way incoming line mode, as picture 5.2 Picture 5.2 PMAC202 BCPM User Manual · 25... -
Page 29: One Main & One Backup Incoming Line Configuration
5.1.3 One Main & One Backup Incoming Line Configuration Configuration as Main & Backup incoming line mode, as picture 5.3 Picture 5.3 5.1.4 Clear Energy Clear Main Module Energy, as picture 5.4 Picture 5.4 PMAC202 BCPM User Manual · 26... -
Page 30: Clear Maxim Value
5.1.5 Clear Maxim Value Clear all the Maxim value information in Main Module, e.g. Maxim Current value, Maxim Current Demand etc 5.1.6 Time Synchronization Synchronization time on HMI and Main Module PMAC202 BCPM User Manual · 27... -
Page 31: Function Configuration
Incoming line Clear Maxim value, Time Synchronization, Function Configuration, Set system configuration, password input table will be shown, further operation can be processed after input correct password. Default password: 201 5.1.10 Password Modification Device Information setting interface: Picture 5.5 PMAC202 BCPM User Manual · 28... -
Page 32: Data Display
The alarm light will turn red and flash when event happen. Gray means no alarm. 5.2.4 Communication Status Indicate Green means the communication between display module and main module is normal. Gray means no communication. PMAC202 BCPM User Manual · 29... -
Page 33: Key Operation
5.3 Incoming Circuit Data Display Display 1 loop incoming circuit real time data, as picture 5.7 Picture 5.7 5.4 Outgoing Circuit Data Display Display multi loop outgoing circuit real time data, as picture 5.8 Picture 5.8 PMAC202 BCPM User Manual · 30... -
Page 34: Real-Time Alarm Record Display
5.5 Real-time Alarm Record Display Display Maxim 16 pieces alarm information, as picture 5.9 Picture 5.9 History Information Record: Picture 5.10 PMAC202 BCPM User Manual · 31... -
Page 35: Incoming Circuit Value Programming
Incoming line branch circuit alarm: act after main circuit alarm. In Alarm Outgoing line branch circuit alarm: act after branch circuit Out Alarm alarm. Relay initial setting: Relay 1 & 2 are all alarm output PMAC202 BCPM User Manual · 32... -
Page 36: Outgoing Circuit Value Programming
Alarm action: over the setting value. 2—10V, 0 means alarm alarm value Alarm reset: delay 5s after the alarm condition is eliminated. closed. 5.7 Outgoing Circuit Value Programming Outgoing circuit alarm setting as picture 5.12 PMAC202 BCPM User Manual · 33... - Page 37 Alarm reset: delay 5s after the alarm condition is eliminated. Alarm action: over the setting value. Current high-high level 5.0～250.0A， 0 means alarm closed. Alarm reset: delay 5s after the alarm condition is alarm value eliminated. PMAC202 BCPM User Manual · 34...
-
Page 38: History Electrical Degree
5.8 History Electrical Degree Display historical Year electrical degree value, as picture 5.13 Picture 5.13 Display historical Month electrical degree value, as picture 5.14 Picture 5.14 PMAC202 BCPM User Manual · 35... -
Page 39: Ct Setting
CT specification will be effective after be revised need power ON again, revise phase position configuration no need re-power on, please make sure connection sequence and configuration correspondence Display CT specification as picture 5.15 Picture 5.15 Phase position configuration interface Picture 5.16 PMAC202 BCPM User Manual · 36... -
Page 40: Data Record
5.10 Data Record Record incoming line current value, each 20 minutes record one time, as picture 5.17 Picture 5.17 PMAC202 BCPM User Manual · 37... -
Page 41: Maintenance And Trouble Shooting
Main module can not Communication interference Check communication shield layer connect with Host computer Communication stop Check communication cable Check system configuration System configuration not match with main module Check main module dial switch PMAC202 BCPM User Manual · 38...
