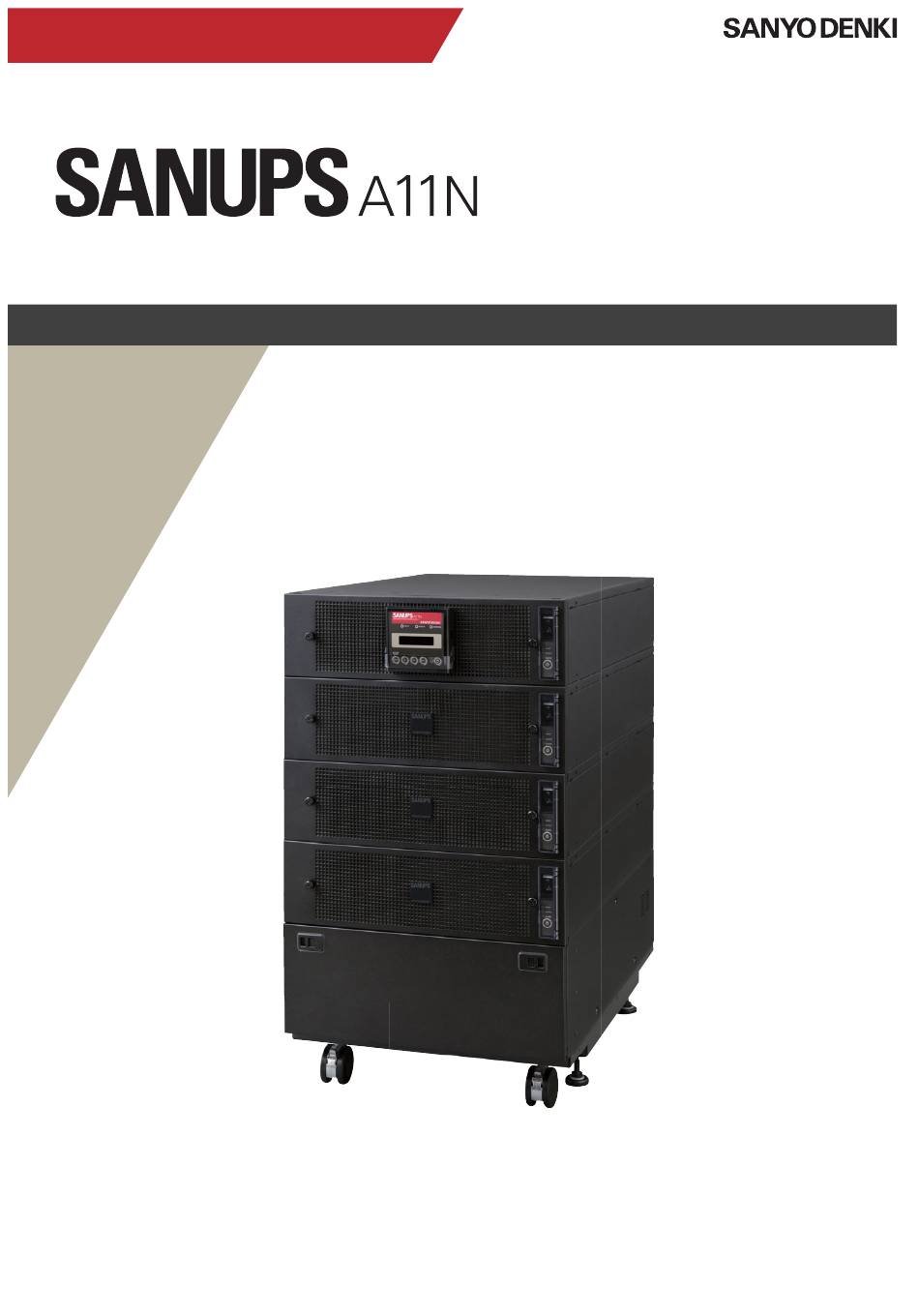

- Page 1 Online UPS Ver. English...
- Page 2 Online UPS Suitable for servers, base stations, and factory facilities UPS unit -year warranty Lineup ● ● ● Input and output connector types are indicated by the following icons: Terminal block, Plug, Outlet Battery Output capacity Page [No. of phases/wires] [No.
-
Page 3: Installation Examples
SANUPS A11N Installation examples Mountable in an EIA standard Vertical 19-inch rack Rack support rails are optional. You can change the orientation of the LCD panel. Floor mounting brackets included as standard for the single unit type (shown in the photo) and optional for types with a PDU. - Page 4 SANUPS A11N Online UPS Scalable capacity ■ Power distribution unit Parallel operation 5 kVA / 4.5 kW 10 kVA / 9 kW 15 kVA / 13.5 kW 20 kVA / 18 kW (N configuration) Parallel redundant operation 5 kVA / 4.5 kW 10 kVA / 9 kW 15 kVA / 13.5 kW (N+1 configuration)
- Page 5 SANUPS A11N Specifications Output capacity Order no. Backup time of 5 minutes (3U) S-A11N502A005T S-A11N502A005N S-A11N502A005S2 S-A11N502A005Z Backup time of 10 minutes (4U) S-A11N502A010T S-A11N502A010N S-A11N502A010S2 S-A11N502A010Z Rated output capacity Single-unit/Parallel operation (N confi g.) 5 kVA / 4.5 kW (apparent power / active power) Parallel redundant operation (N+1 confi...
- Page 6 SANUPS A11N Online UPS Specifications Output capacity Order no. Backup time of 5 minutes (3U) S-A11N103A005T S-A11N103A005S2 S-A11N103A005Z Backup time of 10 minutes (4U) S-A11N103A010S2 S-A11N103A010Z − Rated output capacity Single-unit/Parallel operation (N confi g.) 10 kVA / 9 kW (apparent power / active power) Parallel redundant operation (N+1 confi...
- Page 7 SANUPS A11N Output capacity Order no. Backup time of 5 minutes (3U) S-A11N153A005S2 S-A11N153A005Z Backup time of 10 minutes (4U) S-A11N153A010S2 S-A11N153A010Z Rated output capacity Single-unit/Parallel operation (N confi g.) 15 kVA / 13.5 kW (apparent power / active power) Parallel redundant operation (N+1 confi...
- Page 8 SANUPS A11N Online UPS Specifications Output capacity Order no. Backup time of 5 minutes (3U) S-A11N203A005S2 S-A11N203A005Z Backup time of 10 minutes (4U) S-A11N203A010S2 S-A11N203A010Z Rated output capacity Single-unit/Parallel operation (N confi g.) 20 kVA / 18 kW (apparent power / active power) Parallel redundant operation (N+1 confi...
- Page 9 SANUPS A11N Dimensions (Unit: mm) Model: S-A11N502A005N Model: S-A11N502A005□ Output Outlet Breaker NEMA L6-20R ×2 (25) （40） NEMA L6-30R ×2 Ground Terminal External Battery Connector Maintenance Bypass Breaker NEMA L6-30P 4-ø10 Communication Interface (See Views and Part Names) Model: S-A11N502A005 T Breaker for NEMA L6-30R NEMA L6-30R Breaker for IEC-C13 ×2...
- Page 10 SANUPS A11N Online UPS Dimensions (Unit: mm) Model: S-A11N502A010□ Model: S-A11N502A010N Output Outlet Breaker NEMA L6-20R ×2 174.5 (40) (25) NEMA L6-30R ×2 Ground Terminal NEMA L6-30P 4-ø10 External Battery Connector Maintenance Bypass Breaker Communication Interface (See Views and Part Names) Model: S-A11N502A010T Floor mounting bracket (Supplied) Breaker for NEMA L6-30R...
- Page 11 SANUPS A11N Model: S-A11N502A005S2 (1) Rear view of UPS unit (25) (79) External Battery Connector Unit-to-Unit Connector Unit-to-Unit Communication Port Mass: 110 kg Model: S-A11N103A005S2 (2) Front interior of power distribution unit Input Breaker NEMA L6-30R ×4 (25) (79) Output Outlet Breaker Maintenance Bypass Breaker Mass: 170 kg Model: S-A11N153A005S2...
- Page 12 SANUPS A11N Online UPS Dimensions (Unit: mm) Model: S-A11N502A010S2 (1) Rear view of UPS unit (25) (79) External Battery Connector Unit-to-Unit Connector Mass: 130 kg Unit-to-Unit Communication Port Model: S-A11N103A010S2 (25) (79) (2) Front interior of power distribution unit Input Breaker NEMA L6-30R ×4 Output Outlet Breaker...
- Page 13 SANUPS A11N (1) Rear view of UPS unit Model: S-A11N502A005Z (25) (79) External Battery Connector Unit-to-Unit Connector Unit-to-Unit Communication Port (2) Front interior of power distribution unit Input Breaker Output Breaker Mass: 270 kg Model: S-A11N103A005Z (25) (79) Communication Interface (See Views and Part Names) Maintenance Bypass Breaker I/O Terminal Block (M8)
- Page 14 SANUPS A11N Online UPS Dimensions (Unit: mm) (1) Rear view of UPS unit Model: S-A11N502A010Z (25) (79) External Battery Connector Unit-to-Unit Connector Unit-to-Unit Communication Port (2) Front interior of power distribution unit Input Breaker Output Breaker Mass: 290 kg Model: S-A11N103A010Z (25) (79)
- Page 15 SANUPS A11N Specifications UL/CE certified models Output capacity kVA, Order no. A11N502U0TM A11N103U0TM UL-registered no. (Model) A11N502U0T A11N103U0T Rated output capacity Single-unit/Parallel operation (N confi g.) 5 kVA / 4.5 kW 10 kVA / 9 kW (apparent power / active power) Parallel redundant operation (N+1 confi...
- Page 16 SANUPS A11N Online UPS Dimensions (Unit: mm) Model: A11N502U0TM (116) (25) I/O Terminal Block 4-ø10 Communication Interface (See Views and Part Names) Floor mounting bracket (Supplied) Cable cover ケーブルカバー (677.5) (47.5) Mass: 63 kg Model: A11N103U0TM (127) (25) I/O Terminal Block (80) 4-ø10 Unit-to-Unit Connector...
- Page 17 SANUPS A11N Dimensions (Unit: mm) ■ Rack support rails Used for mounting the UPS on a standard EIA 19-inch rack. Rack mounting brackets for securing a UPS in a rack come included with or installed to the UPS. (A pair of left and right rails. Shown below is the left rail.) RM027 （...
- Page 18 SANUPS A11N Online UPS MEMO CATALOG No.P1054B002 '23.5...
- Page 19 SANUPS A11N MEMO CATALOG No.P1054B002 '23.5...
- Page 20 (b) Trains, elevators, and other machinery that can cause injury. ● SANYO DENKI will not be liable for any direct or indirect damages or loss, (c) Socially and publicly important computer systems. including but not limited to equipment downtime, missed power sales...
