Sanyo Denki Sanups A11H User Settings Manual

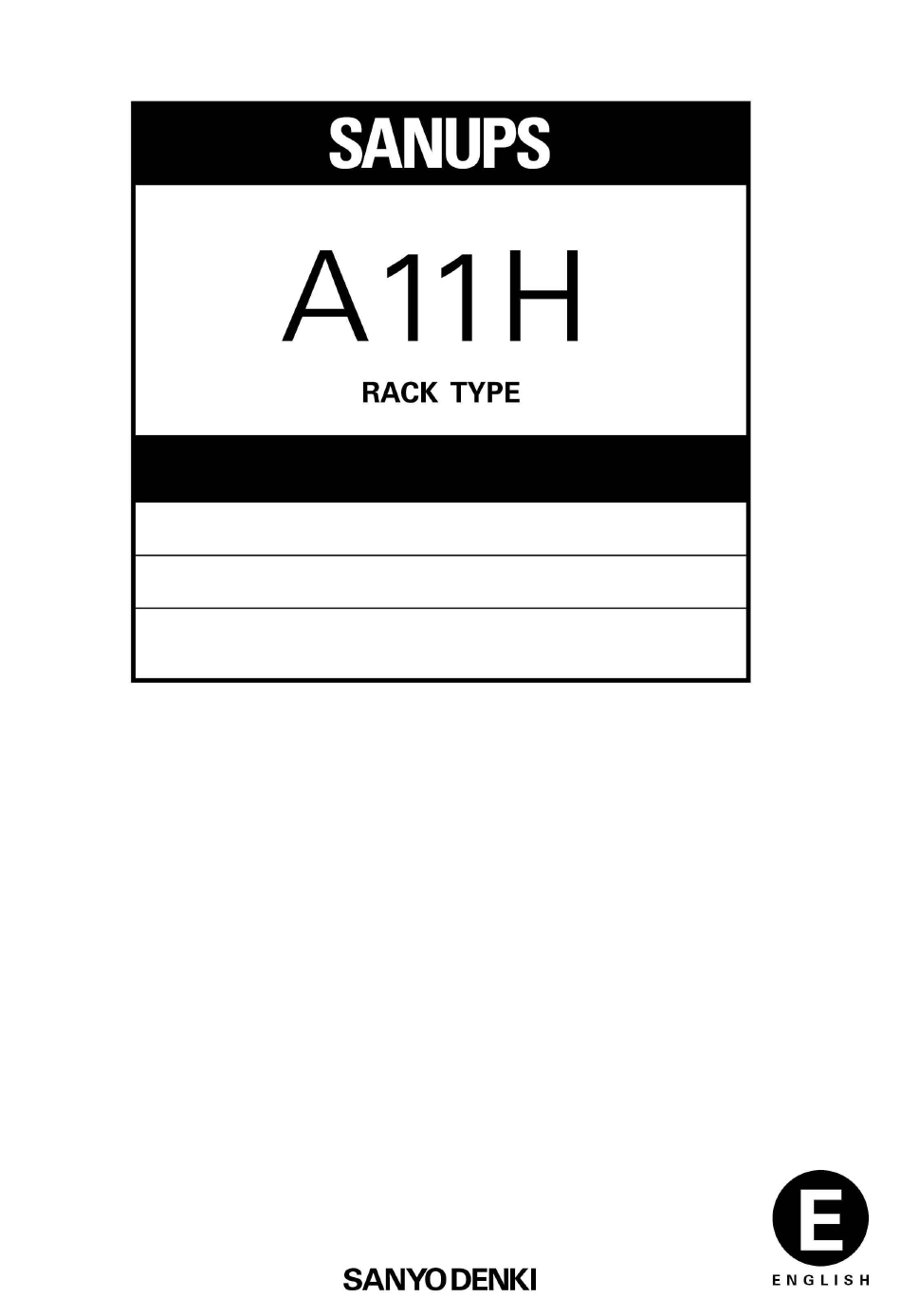

Sanyo Denki Sanups A11H User Settings Manual

Rack type
Hide thumbs Also See for Sanups A11H:

Advertisement

Quick Links

Download this manual See also: Instruction Manual
M0008096
Uninterruptible Power Supply
User Settings Guide

Advertisement

loading
Need help?

Need help?

Do you have a question about the Sanups A11H and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sanyo Denki Sanups A11H

Summary of Contents for Sanyo Denki Sanups A11H

  • Page 1 M0008096 Uninterruptible Power Supply User Settings Guide...
  • Page 2 Introduction Thank you for choosing the SANUPS A11H. SAVE THESE INSTRUCTIONS This manual describes the functions and setting operations of the user setting menus. To operate correctly, read this manual when setting or changing the user setting menus of the UPS. Store this manual together with the A11H instruction manual in a safe place for convenient reference.

  • Page 3: Setup Menu List

    § § The UPS has a user settings menu, described in §2 “Setup Menu List”. You can set the various menu items to configure the UPS according to your environment, your applications, and the specifications of the connected load devices. §...

  • Page 4: Operation

    § § ●: indicates that LED is blinking. ○: indicates that LED is off. Ref. Setting Default Current Item Menu Menu LED Setting Remarks page Setting Setting Do not use this setting. ●○○○ ○ Do not use this setting. ○●○○ Output voltage ●...

  • Page 5: Setting Pc Interface

    Ref. Setting Default Current Item Menu Menu LED Setting Remarks page Setting Setting Linked ON/OFF delay disabled No delay ● ○ ○ ○ Linked delay ● (operate with delay of 0 seconds) 3.16 operation ○ ○ ○ ○ Linked ON/OFF delay enabled Delay ○...
  • Page 6 § § You can check the output voltage setting of § § this UPS. Do not change the setting. ① Check that the UPS is in the following condition. MAIN SM on the back panel set to “ON”. *1 *1. Operation is possible regardless of whether The “Green ON/OFF”...
  • Page 7 § § Set the output frequency varitation range(%). ① Check that the UPS is in the following condition. MAIN SW on the back panel set to “ON”. *1 *1. Operation is possible regardless of whether The “Green ON/OFF” and is ON or OFF. the “Green OUTPUT are not blinking.
  • Page 8 Set the output frequency. § § ① Check that the UPS is in the following condition. MAIN SW on the back panel set to “ON”. *1 *1. Operation is possible regardless of whether The “Green ON/OFF” and is ON or OFF. the “Green OUTPUT are not blinking.
  • Page 9 Set the interface mode when using external § § interface connector. ① Check that the UPS is in the following condition. MAIN SW on the back panel set to “ON”. *1 *1. Operation is possible regardless of whether The “Green ON/OFF” and is ON or OFF.
  • Page 10 Set the serial baud rate when a workstation, PC, § § or optional LAN Interface card is connected. ① Check that the UPS is in the following condition. MAIN SW on the back panel set to “ON”. *1 *1. Operation is possible regardless of whether The “Green ON/OFF”...
  • Page 11 Specify the UPS operation when power recovers after the UPS stops due to § § final discharge of the batteries during a power outage. When using the supplied power management software, you cannot set this menu on the control panel of the UPS.
  • Page 12 Select the conditions under which the UPS emits § § the buzzer sound. ① Check that the UPS is in the following condition. MAIN SW on the back panel set to “ON”. *1 *1. Operation is possible regardless of whether The “Green ON/OFF”...
  • Page 13 Set the shutdown operation for switch to § § stop the UPS. This operation is only valid for the shutdown operation. The startup operation cannot be changed. ① Check that the UPS is in the following condition. MAIN SW on the back panel set to “ON”. *1 *1.
  • Page 14 Set the conditions for automatic switch back to the UPS power supply (auto return) after § § switching to the bypass power supply because of overload. ① Check that the UPS is in the following condition. MAIN SW on the back panel set to “ON”. *1 *1.
  • Page 15 Specify the UPS power supply conditions when the UPS is stopped by the procedure in § § A11H §11.2 “UPS Shutdown (Daily)” in the Instruction Manual ① Check that the UPS is in the following condition. MAIN SW on the back panel set to “ON”. *1 *1.

  • Page 16: Setting Buzzer Sound

    Set the timing of emitting the low § § battery voltage warning. When using the supplied power management software, you cannot set this menu on the control panel of the UPS. Set this menu using the power management software. Refer to the User Guide of the power management software.
  • Page 17 Set the UPS backup time when a battery box is § § connected. ① Check that the UPS is in the following condition. MAIN SW on the back panel set to “ON”. *1 *1. Operation is possible regardless of whether The “Green ON/OFF”...
  • Page 18 Set the battery type. Set this when you replace § § the battery or connect an external battery. ① Check that the UPS is in the following condition. *1. Operation is possible regardless of whether MAIN SW on the back panel set to “ON”. *1 is ON or OFF.
  • Page 19 Set the interval (number of days) for the automatic § § battery test. The test is carried out automatically when the specified number of days has elapsed. When using the supplied power management software, you cannot set this menu on the control panel of the UPS.
  • Page 20 The battery information should be reset when the battery is replaced. If resetting is performed § § accidentally, the alarm of the remaining battery service life is not emitted correctly. ① Check that the UPS is in the following condition. MAIN SW on the back panel set to “ON”.
  • Page 21 Set §3.16, §3.17, and §3.18 if you want to perform linked operation. A11H Instruction Manual See §18.2 “Linked Operation Cable” in the for details about linked operation. Specify whether to enable or disable § § the ON/OFF delay times that are set with §3.17 and §3.18.
  • Page 22 Set the ON delay time for linked operation. The delay is enabled only § § when “Delay” is specified in §3.16 “Enabling Disabling Linked Operation Delay”. ① Check that the UPS is in the following condition. MAIN SW on the back panel set to “ON”. *1 *1.
  • Page 23 Set the OFF delay time for linked operation. The delay is enabled only § § when §3.16 is set to “Delay”. ① Check that the UPS is in the following condition. MAIN SW on the back panel set to “ON”. *1 *1.
  • Page 24 Set §3.19 to §3.26 when you want to perform output line control using an outlet box. A11H Instruction Manual For details about output line control, see §18.3 “Outlet Box” in the Select whether or not to perform § § output line control. ①...
  • Page 25 § § If you want to perform output line control, set the outlet box OUTPUT1 ON delay time. The specified ON delay time is enabled only when §3.19 is set to “Enabled”. When using the optional power management software, you cannot set this menu on the control panel of the UPS. Set this menu using the power management software.
  • Page 26 § § If you want to perform output line control, set the outlet box OUTPUT2 ON delay time. The specified ON delay time is enabled only when §3.19 is set to “Enabled”. When using the optional power management software, you cannot set this menu on the control panel of the UPS. Set this menu using the power management software.
  • Page 27 § § If you want to perform output line control, set the outlet box OUTPUT1 OFF delay time. The specified OFF delay time is enabled only when §3.19 is set to “Enabled”. When using the supplied power management software, you cannot set this menu on the control panel of the UPS. Set this menu using the power management software.
  • Page 28 § § If you want to perform output line control, set the outlet box OUTPUT2 OFF delay time. The specified OFF delay time is enabled only when §3.19 is set to “Enabled”. When using the optional power management software, you cannot set this menu on the control panel of the UPS. Set this menu using the power management software.
  • Page 29 § § Set the length of time that output from OUTPUT1 continues after a power outage. After passage of the specified time, OUTPUT1 is turned OFF. This setting is enabled only when §3.19 is set to “Enabled” and §3.4 is set to “Standalone”. ①...
  • Page 30 § § Set the length of time that output from OUTPUT2 continues after a power outage. After passage of the specified time, OUTPUT2 is turned OFF. This setting is enabled only when §3.19 is set to “Enabled” and §3.4 is set to “Standalone”. ①...
  • Page 31 § § Set the operation of the outlet box OUTPUT0 after OUTPUT1 and OUTPUT2 are stopped by the power management software, or stopped by the standard UPS service of the operating system, or stopped after passage of the specified “Outlet Box OUTPUT1 Power Outage Output Time” and “Outlet Box OUTPUT2 Power Outage Output Time”. This setting is enabled only when “Enabled”...
  • Page 32 Select whether or not to output a Ring § § signal when the UPS starts. *What is a Ring signal? This is a signal that automatically starts a connected computer when the UPS starts. This is enabled when the computer supports a Wake Up on Ring function and when the computer is connected to the UPS with the supplied communications cable.

  • Page 33: Setting Battery Backup Time

    Resets the setting value to the factory § § defaults. When you perform this operation, all settings return to the factory defaults. Menu items cannot be reset individually. ① Check that the UPS is in the following condition. *1. Operation is possible regardless of whether MAIN SW on the back panel set to “ON”.
