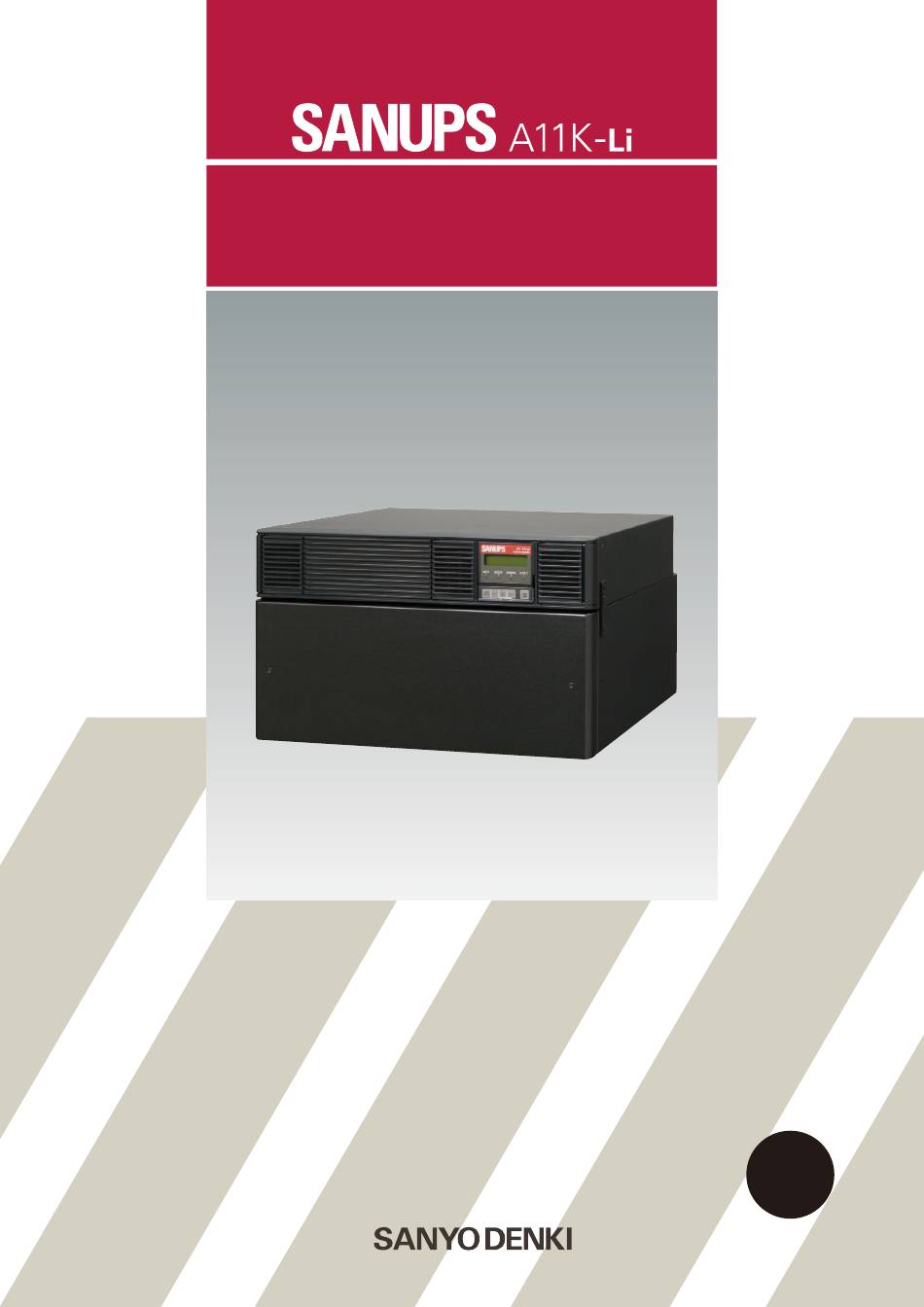

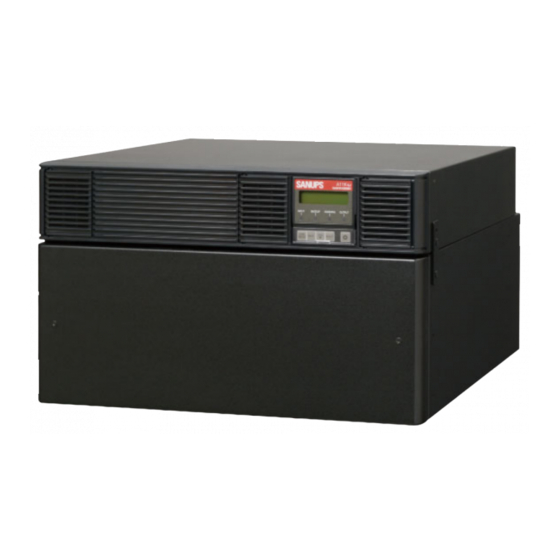

- Page 1 Lithium-ion Battery UPS Ver.
- Page 2 Online UPS Double Conversion Online UPS with Lithium-ion Batteries UPS unit -year warranty Lineup: Output capacity Battery backup time I/O connection Order no. Page [No. of phases/wires] Load power Load power Input/Output voltage certifi cation [kVA] [kW] Specifi cations Dimensions factor 0.8 factor 0.7 −...
-
Page 3: Installation Examples
A11K-Li SANUPS Installation examples Mountable in an EIA standard Vertical installation 19-inch rack Rack support rails are optional. You can change the orientation of the LCD panel. Refer to the specifi cations for installation accessories such as vertical stands and fl... -
Page 4: Lcd Panel
SANUPS A11K-Li Online UPS Views and Part Names Views and Part Names LCD Panel 1, 1.5 kVA, Rear View Maintenance Bypass Switch LCD Screen Maintenance Bypass Breaker Output Outlet Optional Card Slot Output LED (NEMA 5-15) Bypass Breaker Warning LED Output Line Control Backup Time LED and Remote Ports... - Page 5 A11K-Li SANUPS Specifi cations Output capacity Battery backup time Order no. S-A11KL102B0013SSN00 S-A11KL152B0008SSN00 S-A11KL152B0019SSN00 S-A11KL202B0015SS □ 00 Rated output capacity (apparent power / active power) 1 kVA / 0.8 kW 1.5 kVA / 1.2 kW 2 kVA / 1.6 kW Technology Topology Double conversion online...
- Page 6 SANUPS A11K-Li Online UPS Views and Part Names Views and Part Names LCD Panel 3 kVA, Rear View Model: S-A11KL302B0009SSN00 Maintenance Bypass Breaker Output Outlet Breaker (For NEMA 5-15) Optional Card Slot Bypass Breaker Main Breaker LCD Screen Output Outlet (NEMA 5-15) Output LED Output Outlet...
- Page 7 A11K-Li SANUPS Specifi cations Output capacity kVA, Battery backup time Order no. S-A11KL302B0009SS □ 00 S-A11KL302B0019SS □ 00 S-A11KL502B0011SST00 Rated output capacity (apparent power / active power) 3 kVA / 2.4 kW 5 kVA / 4 kW Technology Topology Double conversion online Rectifi...
- Page 8 SANUPS A11K-Li Online UPS Dimensions Output capacity Order no. Outlet type S-A11KL102B0013SSN00 S-A11KL152B0008SSN00 S-A11KL152B0019SSN00 S-A11KL202B0015SSN00 Terminal block type ― ― ― S-A11KL202B0015SST00 Rated output capacity 1 kVA / 0.8 kW 1.5 kVA / 1.2 kW 1.5 kVA / 1.2 kW 2 kVA / 1.6 kW (apparent power / active power) Battery backup time...
- Page 9 A11K-Li SANUPS Output capacity kVA, Order no. Outlet type S-A11KL302B0009SSN00 S-A11KL302B0019SSN00 ― Terminal block type S-A11KL302B0009SST00 S-A11KL302B0019SST00 S-A11KL502B0011SST00 Rated output capacity 3 kVA / 2.4 kW 3 kVA / 2.4 kW 5 kVA / 4 kW (apparent power / active power) Battery backup time 9 min (10 min) 19 min (20 min)
- Page 10 SANUPS A11K-Li Online UPS Specifi cations certifi ed models Output capacity kVA, Order no. S-A11KL102B0013US S-A11KL102B0013UJ S-A11KL152B0008US S-A11KL152B0008UJ UL-registered no. A11KL102U001 A11KL102U001J A11KL152U001 A11KL152U001J Rated output capacity (apparent power / active power) 1 kVA / 0.8 kW 1.5 kVA / 1.2 kW At 100 V setting: 1.25 kVA / 1.0 kW At 110 V setting: 1.375 kVA / 1.1 kW At 120 V setting: 1.5 kVA / 1.2 kW...
- Page 11 A11K-Li SANUPS Dimensions certifi ed models Output capacity kVA, Order no. Outlet type S-A11KL102B0013US S-A11KL102B0013UJ S-A11KL152B0008US S-A11KL152B0008UJ Rated output capacity 1 kVA / 0.8 kW 1.5 kVA / 1.2 kW At 100 V setting: 1.25 kVA / 1.0 kW (apparent power / active power) At 110 V setting: 1.375 kVA / 1.1 kW At 120 V setting: 1.5 kVA / 1.2 kW Battery backup time...
- Page 12 SANUPS A11K-Li Online UPS Views and Part Names Views and Part Names LCD Panel 1.5 kVA, Rear View Maintenance Bypass Breaker Maintenance Bypass Switch Optional Card Slot Output Outlet (NEMA 5-15) Bypass Breaker LCD Screen UPS unit Power Input Cable (1.8 m) Output LED Battery Unit Connector...
- Page 13 A11K-Li SANUPS Specifi cations Output capacity Battery backup time Order no. (A set of a UPS unit and battery units) S-A11KL152B0 □ 00TSN00 □□ S-A11KL302B0 □□ 0TS □ 00 □□ S-A11KL502B0 □□ 0TST00 □□ UPS unit model no. A11KL152 A11KL302 A11KL502 Rated output capacity (apparent power / active power) 1.5 kVA / 1.2 kW...
- Page 14 SANUPS A11K-Li Online UPS Dimensions Output capacity Free-standing type Order no. S-A11KL152B0200TSN00 S-A11KL152B0300TSN00 S-A11KL152B0400TSN00 (A set of a UPS unit and battery units) S-A11KL152B0100TSN00 Rack mount type Order no. S-A11KL152B0200TSN00RM S-A11KL152B0300TSN00RM S-A11KL152B0400TSN00RM (A set of a UPS unit and battery units) Rated output capacity 1.5 kVA / 1.2 kW (apparent power / active power)
- Page 15 A11K-Li SANUPS Output capacity Free-standing type Order no. S-A11KL152B0500TSN00 S-A11KL152B0600TSN00 (A set of a UPS unit and battery units) Rack mount type Order no. ― ― (A set of a UPS unit and battery units) Rated output capacity 1.5 kVA / 1.2 kW (apparent power / active power) Battery backup time 500 min...
- Page 16 SANUPS A11K-Li Online UPS Dimensions Terminal block type in the next spread Output capacity Free-standing type Order no. S-A11KL302B0100TSN00 S-A11KL302B0150TSN00 S-A11KL302B0200TSN00 (A set of a UPS unit and battery units) S-A11KL302B0050TSN00 Rack mount type Order no. S-A11KL302B0100TSN00RM S-A11KL302B0150TSN00RM S-A11KL302B0200TSN00RM (A set of a UPS unit and battery units) Rated output capacity 3 kVA / 2.4 kW...
- Page 17 A11K-Li SANUPS Terminal block type in the next page Output capacity Free-standing type Order no. S-A11KL302B0250TSN00 S-A11KL302B0300TSN00 (A set of a UPS unit and battery units) Rack mount type Order no. – – (A set of a UPS unit and battery units) Rated output capacity 3 kVA / 2.4 kW (apparent power / active power)
- Page 18 SANUPS A11K-Li Online UPS Dimensions Terminal block type Output capacity Free-standing type Order no. S-A11KL302B0100TST00 S-A11KL302B0150TST00 S-A11KL302B0200TST00 (A set of a UPS unit and battery units) S-A11KL302B0050TST00 Rack mount type Order no. S-A11KL302B0100TST00RM S-A11KL302B0150TST00RM S-A11KL302B0200TST00RM (A set of a UPS unit and battery units) Rated output capacity 3 kVA / 2.4 kW (apparent power / active power)
- Page 19 A11K-Li SANUPS Terminal block type Output capacity Free-standing type Order no. S-A11KL302B0250TST00 S-A11KL302B0300TST00 (A set of a UPS unit and battery units) Rack mount type Order no. – – (A set of a UPS unit and battery units) Rated output capacity 3 kVA / 2.4 kW (apparent power / active power) Battery backup time...
- Page 20 SANUPS A11K-Li Online UPS Dimensions Output capacity Free-standing type Order no. S-A11KL502B0060TST00 S-A11KL502B0090TST00 (A set of a UPS unit and battery units) S-A11KL502B0030TST00 Rack mount type Order no. S-A11KL502B0060TST00RM S-A11KL502B0090TST00RM (A set of a UPS unit and battery units) Rated output capacity 5 kVA / 4 kW (apparent power / active power)
- Page 21 A11K-Li SANUPS Output capacity Free-standing type Order no. S-A11KL502B0120TST00 S-A11KL502B0150TST00 S-A11KL502B0180TST00 (A set of a UPS unit and battery units) Rack mount type Order no. S-A11KL502B0120TST00RM ― ― (A set of a UPS unit and battery units) Rated output capacity 5 kVA / 4 kW (apparent power / active power) Battery backup time...
- Page 22 SANUPS A11K-Li Online UPS Load Level vs Backup Time Load level [%] Load level [%] 3 kVA (19 min model) 2 kVA (15 min model) 1 kVA (13 min model) 5 kVA (11 min model) 3 kVA (9 min model) 1.5 kVA (8 min model) 1.5 kVA (19 min model) 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170...
-
Page 23: Network Options
SANUPS A11K-Li Network Options Item Model no. Remarks LAN Interface Card IPv4/IPv6, Modbus TCP supported PRLANIF022A When installed in the optional card slot, this card enables 24/7 monitoring of UPS operations and status, and sends e-mail notifi cations to system administrators for quick actions via network in the IPv4/IPv6, Modbus TCP/RTU supported PRLANIF024A event of a power failure. - Page 24 ■ SANYO DENKI's ECO PRODUCTS are designed with the concept of lessening impact on the environment in the process from product development to waste. The product units and packaging materials are designed for reduced environmental impact. We have established our own assessment criteria on the environmental impacts applicable to all processes, ranging from design to manufacture.
