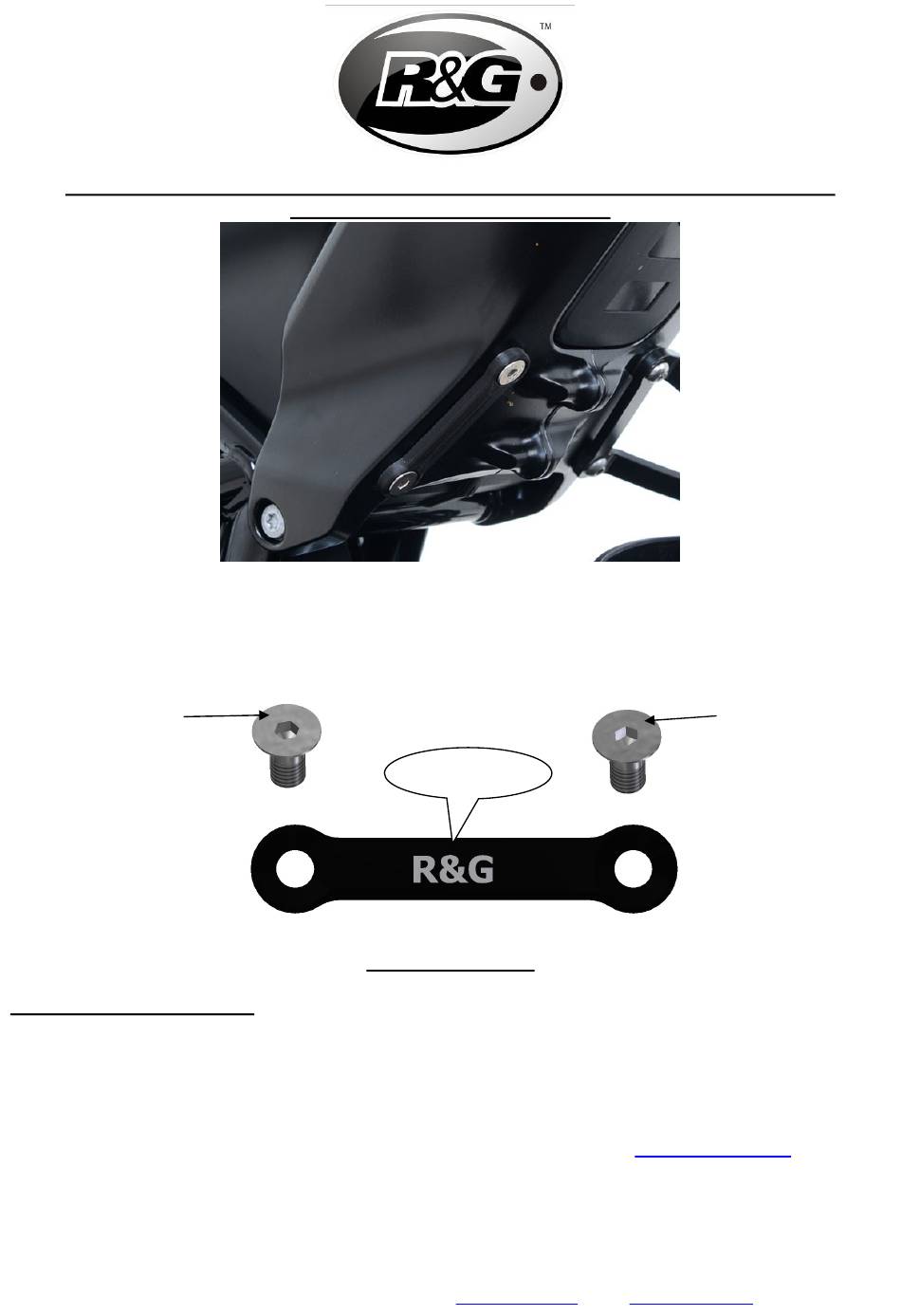

Page 1 of 6
FITTING INSTRUCTIONS FOR BLP0086BK REAR FOOTREST BLANKING PLATE
Please note that the way the kit is packed does not necessarily represent the way of mounting to the bike
T
HE PARTS SHOWN MAY BE REPRESENTATIVE ONLY
Please note that in cases where kits are packed with rubber washers holding the components onto the bolt – the rubber washers
M8x15mm long
Counter sunk bolt
FITTING INSTRUCTIONS
Remove rear footrest on the left side of the bike.
Fit the two counter-sunk head bolts through the holes in the blanking plate.
Offer assembly up to bike and engage both bolts as shown in top picture.
Tighten evenly using 5mm Allen key.
Digital copies of these instructions are available to download from
Tel: +44 (0)1420 89007 Fax: +44 (0)1420 87301
HUSQVARNA VITPILEN 701 2018-
should be thrown away!
TOOLS REQUIRED
5 and 6mm A/F metric Allen key.
Unit 1, Shelley's Lane, East Worldham, Alton, Hampshire, GU34 3AQ
(
FOR CLARITY OF INSTRUCTIONS ONLY
BLPM0088
R&G
www.rg-racing.com
Email:
BLP0086
)
M8x15mm long
Counter sunk bolt
www.rg-racing.com
info@rg-racing.com
Advertisement
Related Manuals for R&G BLP0086BK
Summary of Contents for R&G BLP0086BK
- Page 1 Page 1 of 6 BLP0086 FITTING INSTRUCTIONS FOR BLP0086BK REAR FOOTREST BLANKING PLATE HUSQVARNA VITPILEN 701 2018- Please note that the way the kit is packed does not necessarily represent the way of mounting to the bike HE PARTS SHOWN MAY BE REPRESENTATIVE ONLY FOR CLARITY OF INSTRUCTIONS ONLY Please note that in cases where kits are packed with rubber washers holding the components onto the bolt –...
- Page 2 Page 2 of 6 BLP0086 GENERAL TORQUE SETTINGS M4 BOLT = 8Nm M5 BOLT = 12Nm M6 BOLT = 15Nm M8 BOLT = 20Nm M10 BOLT = 40Nm ISSUE 1 18/10/2018 (NSY) CONSUMER NOTICE The catalogue description and any exhibition of samples are only broad indications of the Products and R&G may make design changes which do not diminish their performance or visual appeal and supplying them in such state shall conform to the order.
-
Page 3: Notice De Montage
Page 3 of 6 BLP0086 NOTICE DE MONTAGE POUR BLP0086BK PLAQUE D’OBTURATION DU REPOSE PIED ARRIERE HUSQVARNA VITPILEN 701 2018- La façon dont le kit est emballé ne correspond pas forcément à la façon de monter les pièces sur la moto. - Page 4 Page 4 of 6 BLP0086 GENERAL TORQUE SETTINGS M4 BOLT = 8Nm M5 BOLT = 12Nm M6 BOLT = 15Nm M8 BOLT = 20Nm M10 BOLT = 40Nm ISSUE 1 18/10/2018 (NSY) CONSUMER NOTICE The catalogue description and any exhibition of samples are only broad indications of the Products and R&G may make design changes which do not diminish their performance or visual appeal and supplying them in such state shall conform to the order.
-
Page 5: Sie Benötigen Folgendes Werkzeug
Page 5 of 6 BLP0086 MONTAGEANLEITUNG FÜR BLP0086BK ABDECKPLATTE FUR DIE HINTERE FUSSRASTE HUSQVARNA VITPILEN 701 2018- Hinweis: Die Verpackung der Teile stellt nicht die Reihenfolge der Montage dar. IE ABGEBILDETEN EILE DIENEN LEDIGLICH ZUR RKLÄRUNG Hinweis für Kits mit Plastikunterlegscheiben an den Schrauben – Diese Plastikunterlegscheiben werden nicht für den Einbau benötigt! - Page 6 Page 6 of 6 BLP0086 GENERAL TORQUE SETTINGS M4 BOLT = 8Nm M5 BOLT = 12Nm M6 BOLT = 15Nm M8 BOLT = 20Nm M10 BOLT = 40Nm AUSGABE 1 18/10/2018 (NSY) CONSUMER NOTICE The catalogue description and any exhibition of samples are only broad indications of the Products and R&G may make design changes which do not diminish their performance or visual appeal and supplying them in such state shall conform to the order.
