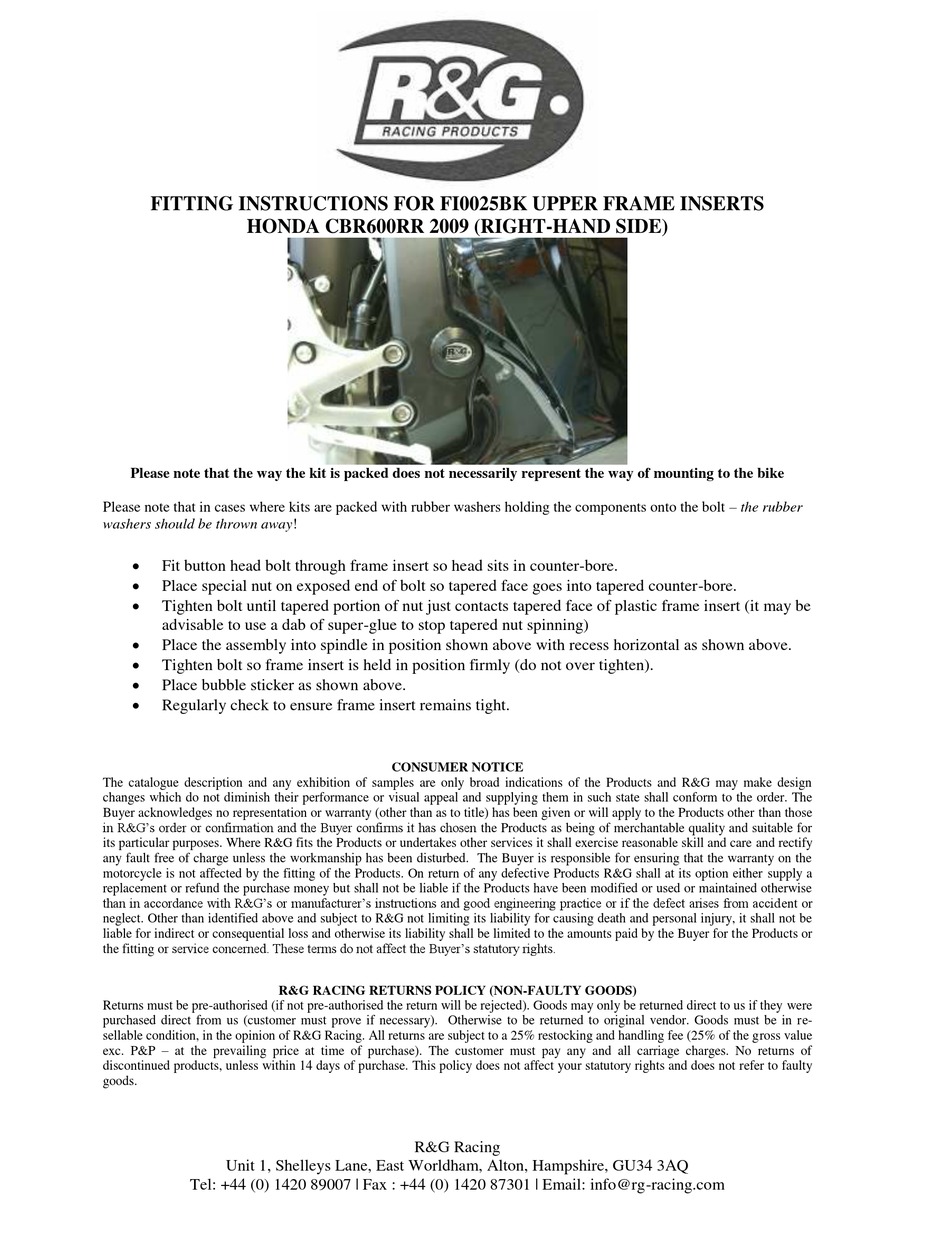

R&G FI0025BK Fitting Instructions

FITTING INSTRUCTIONS FOR FI0025BK UPPER FRAME INSERTS
HONDA CBR600RR 2009 (RIGHT-HAND SIDE)
Please note that the way the kit is packed does not necessarily represent the way of mounting to the bike
Please note that in cases where kits are packed with rubber washers holding the components onto the bolt – the rubber
washers should be thrown away!

Fit button head bolt through frame insert so head sits in counter-bore.

Place special nut on exposed end of bolt so tapered face goes into tapered counter-bore.

Tighten bolt until tapered portion of nut just contacts tapered face of plastic frame insert (it may be
advisable to use a dab of super-glue to stop tapered nut spinning)

Place the assembly into spindle in position shown above with recess horizontal as shown above.

Tighten bolt so frame insert is held in position firmly (do not over tighten).

Place bubble sticker as shown above.

Regularly check to ensure frame insert remains tight.
