Page 1 of 6
BLGFK0023
FITTING INSTRUCTIONS FITTING INSTRUCTIONS FOR BLGFK0023

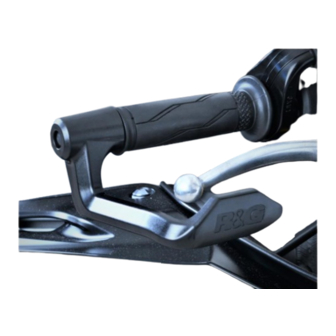

BRAKE LEVER-GUARD FITTING KIT
BMW S1000RR 2019-
T
.
HIS KIT CONTAINS THE ITEMS PICTURED AND LABELLED OVER PAGE
S
.
OME PARTS MAY BE SHOWN FOR CLARITY OF INSTRUCTIONS ONLY
D
.
O NOT PROCEED UNTIL YOU ARE SURE ALL PARTS ARE PRESENT
P
.
LEASE READ ALL INSTRUCTIONS BEFORE PROCEEDING
IF IN ANY DOUBT WHEN FITTING OUR PRODUCTS, CONSULT ONE OF OUR DEALERS
OR HAVE FITTED BY A QUALIFIED TECHNICIAN.
P
LEASE NOTE THAT THE WAY THE KIT IS PACKED DOES NOT NECESSARILY REPRESENT THE WAY OF
.
MOUNTING TO THE BIKE
I
,
N THE EVENT OF RUBBER WASHERS BEING USED TO HOLD COMPONENTS ONTO BOLTS
.
THESE RUBBER WASHERS CAN BE THROWN AWAY
DIGITAL COPIES OF THESE INSTRUCTIONS ARE AVAILABLE FROM:
WWW.RG-RACING.COM
R&G Racing
Unit 1, Shelley's Lane, East Worldham, Alton, Hampshire, GU34 3AQ
Tel: +44 (0)1420 89007 Fax: +44 (0)1420 87301
www.rg-racing.com
Email:
info@rg-racing.com
Advertisement
Table of Contents
Related Manuals for R&G BLGFK0023
Summary of Contents for R&G BLGFK0023
- Page 1 Page 1 of 6 BLGFK0023 FITTING INSTRUCTIONS FITTING INSTRUCTIONS FOR BLGFK0023 BRAKE LEVER-GUARD FITTING KIT BMW S1000RR 2019- HIS KIT CONTAINS THE ITEMS PICTURED AND LABELLED OVER PAGE OME PARTS MAY BE SHOWN FOR CLARITY OF INSTRUCTIONS ONLY O NOT PROCEED UNTIL YOU ARE SURE ALL PARTS ARE PRESENT...
-
Page 2: Tools Required
Page 2 of 6 BLGFK0023 TOOLS REQUIRED GENERAL TORQUE SETTINGS • ALLEN TOOL SET TO INCLUDE 5mm A/F SIZE. M4 BOLT = 8Nm M5 BOLT = • T40 TORX TOOL M6 BOLT = • 24mm A/F SPANNER M8 BOLT = 20Nm... -
Page 3: Fitting Instructions
Page 3 of 6 BLGFK0023 FITTING INSTRUCTIONS • To fit the R&G Brake Lever Guard, you will need to remove the original bar-end using a T40 Torx tool. Place the M6 washer (item 5) over the M6 cap-head bolt (item 4), then slide through the brake lever guard (item 1) so the washer sits against the flat surface within the mounting bore. - Page 4 Page 4 of 6 BLGFK0023 NOTICE DE MONTAGE POUR BLGFK0023 PROTÈGE LEVIER DE FREIN BMW S1000RR 2019- E KIT CONTIENT LES ARTICLES ILLUSTRES ET ETIQUETES SUR LA PAGE ERTAINES PARTIES PEUVENT ETRE PRESENTES UNIQUEMENT POUR LA CLARTE DES INSTRUCTIONS E PAS PROCEDER AU MONTAGE TANT QUE VOUS N...
-
Page 5: Schéma D'ensemble
Page 5 of 6 BLGFK0023 OUTILS REQUIS VALEURS DE SERRAGE RECOMMANDÉES • CLÉ ALLEN 5mm. M4 BOULON = 8Nm • CLÉ TORX T40 M5 BOULON = 12Nm • CLÉ À MOLETTE 24mm M6 BOULON = 15Nm M8 BOULON = 20Nm... - Page 6 Page 6 of 6 BLGFK0023 • Pour installer le protège-levier de frein R&G, vous devrez retirer l'embout de guidon d'origine à l'aide des outils spécifiques sur votre moto. Placez la rondelle M6 (article 5) sur le boulon à tête cylindrique M6 (article 4), puis faites-la glisser à travers le protège levier de frein (article 1) de sorte que la rondelle repose contre la surface plane dans l'alésage de montage.
