May, 2023

DGM26DW / DGM26GY / GLV26GY

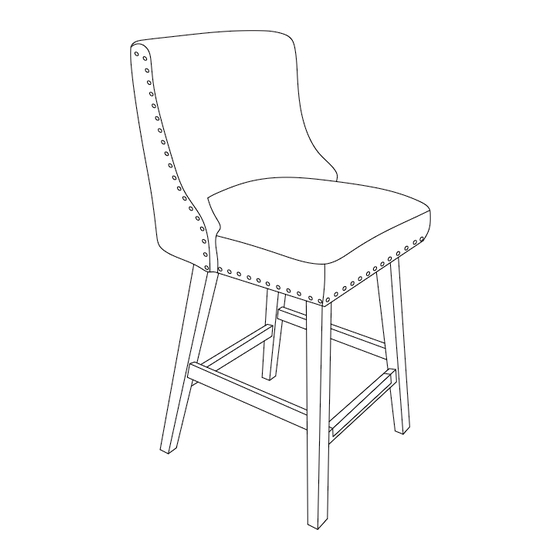

26" SWIVEL COUNTER STOOL

Assembly Instructions - Important:

Carefully unpack and identify each component before attempting to assemble. Refer to parts list. Please take care when

assembling the unit and always set the parts on a clean, soft surface. If you require any assistance with assembly, parts or

information on other products, please visit our website: www.officestar.net or call or write us.

Need help?

Do you have a question about the DGM26DW and is the answer not in the manual?

Page 1 May, 2023 DGM26DW / DGM26GY / GLV26GY 26” SWIVEL COUNTER STOOL Assembly Instructions - Important: Carefully unpack and identify each component before attempting to assemble. Refer to parts list. Please take care when assembling the unit and always set the parts on a clean, soft surface. If you require any assistance with assembly, parts or...
Page 2: Limited Warranty
1-800-950-7262, Monday through Friday 8:00 a.m. - 3:30 p.m. Pacific Time. To make a warranty claim, contact Parts Department. Provide model number, proof of purchase, description of the problem and obtain return authorization. At its option OSP Home Furnishings will: ®...
Page 3 PARTS (1) Chair Body (1 PC) (2) Bidiagonal Leg (2 PCS) (4) Front Crossbar (1 PC) (3) Bidiagonal Leg (2 PCS) (6) Side Crossbar (2 PCS) (5) Rear Crossbar (1 PC) (7) Seat Frame (1 PC)
Page 4: Hardware List
HARDWARE LIST DRAWING DESCRIPTION SIZE QUANTITY 1 PC Allen Wrench 1/4” x 25mm 4 PCS Bolt 1/4” x 50mm 8 PCS Bolt 1/4” 13 PCS Lock Washer 1/4” 12 PCS Flat Washer Ø4 x 45mm 4 PCS Screw Phillips screwdriver also needed for assembly (not provided)
Page 5 STEP 1 DO NOT FULLY TIGHTEN BOLTS (10) STEP 2 DO NOT FULLY TIGHTEN SCREWS (13)
Page 6 STEP 3 FULLY TIGHTEN BOLTS (9) ONLY STEP 4 CAREFULLY TURN TO THE UPRIGHT POSITION. APPLY FIRM PRESSURE TO ALIGN. FULLY TIGHTEN ALL BOLTS (10) & SCREWS (13).
