November, 2019
AVA25

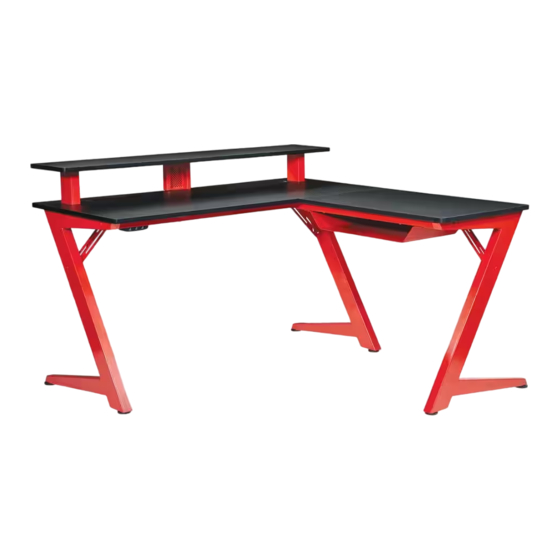

AVATAR BATTLESTATION GAME DESK
Assembly Instructions - Important:
Carefully unpack and identify each component before attempting to assemble. Refer to parts list. Please take care when
assembling the unit and always set the parts on a clean, soft surface. If you require any assistance with assembly, parts or
information on other products, please visit our website: www.officestar.net or call or write us.
Advertisement
Related Manuals for OSP Home Furnishings AVA25
Summary of Contents for OSP Home Furnishings AVA25
- Page 1 November, 2019 AVA25 AVATAR BATTLESTATION GAME DESK Assembly Instructions - Important: Carefully unpack and identify each component before attempting to assemble. Refer to parts list. Please take care when assembling the unit and always set the parts on a clean, soft surface. If you require any assistance with assembly, parts or...
-
Page 2: Limited Warranty
LIMITED WARRANTY OSP Home Furnishings™ warrants to the original purchaser that this product will be free from defects in material and workmanship as described below. OSP Home Furnishings™ will repair or replace, at its option, without charge to the original purchaser only, defective products or parts for one (1) year from the date of purchase. - Page 3 3. Rename all English discriptions to French discriptions. PARTS (A) Leg (3 PCS) (B) Large Frame (1 PC) (C) Small Frame (1 PC) (D) Large Top (1 PC) (E) Small Top (1 PC) (F) Shelf (1 PC) (G) Tray (1 PC) (H) Leg Support (3 PCS) (I) LED Light Tube (1 PC) (J) Foot (6 PCS)
- Page 4 3. Rename all English discriptions to French discriptions. PARTS (K) Shelf Support (2 PCS) (L) Shelf Support (1 PC) (M) Bracket (1 PC) (N) Bracket (1 PC) (O) USB Charger (1 PC) (P) LED Power Adapter (1 PC) (Q) USB Power Adapter (1 PC) (R) Bracket (6 PCS) (S) Plastic Cap (2 PCS) (T) Wood Plug (2 PCS)
-
Page 5: Hardware List
HARDWARE LIST DRAWING DESCRIPTION SIZE QUANTITY Screw M3 x 10 12 PCS Screw M4 x 14 10 PCS + 1 COLOR Bolt M6 x 10 14 PCS Bolt M6 x 16 2 PCS Bolt M6 x 30 2 PCS Bolt M6 x 35 2 PCS Bolt... - Page 6 STEP 1 STEP 2 (10) (12) DO NOT FULLY TIGHTEN BOLTS AND NUTS.
- Page 7 STEP 3 (12) (10) DO NOT FULLY TIGHTEN BOLTS AND NUTS. STEP 4 (12) DO NOT FULLY TIGHTEN BOLTS AND NUTS.
- Page 8 STEP 5 (11) FULLY TIGHTEN ALL SCREWS (2). STEP 6...
- Page 9 STEP 7 (12) FULLY TIGHTEN ALL BOLTS AND NUTS. STEP 8 (12) FULLY TIGHTEN BOLTS (3).
- Page 10 STEP 9 STEP 10 (12) DO NOT FULLY TIGHTEN BOLTS.
- Page 11 STEP 11 (11) FULLY TIGHTEN SCREWS (2). STEP 12 (11) (12) NOTE: SECURE SHELF SUPPORT (L) USING MATCHING COLOR SCREW (2). FULLY TIGHTEN ALL BOLTS.
- Page 12 STEP 13 STEP 14 (11) FULLY TIGHTEN ALL SCREWS (1).
