July, 2019
BNN21 / BKS21 / MED21 / HSB21

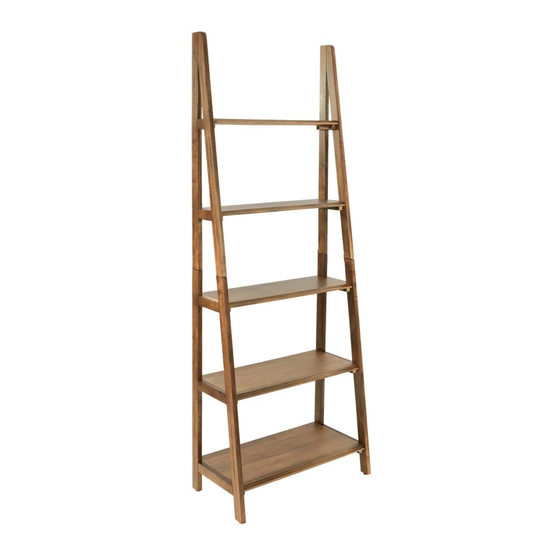

LADDER BOOKCASE
BNN21
MED21
HSB21
BKS21
Assembly Instructions - Important:
Carefully unpack and identify each component before attempting to assemble. Refer to parts list. Please take care when
assembling the unit and always set the parts on a clean, soft surface. If you require any assistance with assembly, parts or
information on other products, please visit our website: www.officestar.net or call or write us.
Advertisement
Related Manuals for OSP Home Furnishings BNN21
Summary of Contents for OSP Home Furnishings BNN21
- Page 1 July, 2019 BNN21 / BKS21 / MED21 / HSB21 LADDER BOOKCASE BNN21 MED21 HSB21 BKS21 Assembly Instructions - Important: Carefully unpack and identify each component before attempting to assemble. Refer to parts list. Please take care when assembling the unit and always set the parts on a clean, soft surface. If you require any assistance with assembly, parts or...
-
Page 2: Limited Warranty
LIMITED WARRANTY OSP Home Furnishings™ warrants to the original purchaser that this product will be free from defects in material and workmanship as described below. OSP Home Furnishings™ will repair or replace, at its option, without charge to the original purchaser only, defective products or parts for one (1) year from the date of purchase. - Page 3 PARTS (A) Upper Left Frame (1 PC) (B) Upper Right Frame (1 PC) (C) Lower Left Frame (1 PC) (D) Lower Right Frame (1 PC) (E) Shelf (1 PC) (F) Shelf (1 PC) (G) Shelf (1 PC) (H) Shelf (1 PC) (I) Shelf (1 PC)
-
Page 4: Hardware List
HARDWARE LIST DRAWING DESCRIPTION SIZE QUANTITY Bolt 1/4” x 25mm 20 PCS Screw 5/32” x 20mm 8 PCS Wooden Dowel 10 x 40mm 4 PCS Support 40 x 15 x 3mm 4 PCS Allen Wrench 1 PC Anti-Tip Kit 1 PC Phillips Screwdriver also needed for assembly (not provided). - Page 5 STEP 2 DO NOT FULLY TIGHTEN BOLTS (1). STEP 3...
-
Page 6: Anti-Tip Kit Installation
STEP 4 (4) (2) APPLY FIRM PRESSURE TO ALIGN & FULLY TIGHTEN ALL SCREWS & BOLTS. ANTI-TIP KIT INSTALLATION STEPS: Place shelf in desired location. Secure one Bracket to wall using one Long Screw, FULLY TIGHTEN LONG SCREW USING PHILLIPS SCREWDRIVER (not provided). Secure remaining Bracket to rear of shelf using one Short Screw, FULLY TIGHTEN SHORT SCREW USING PHILLIPS SCREWDRIVER (not provided).
