BET25

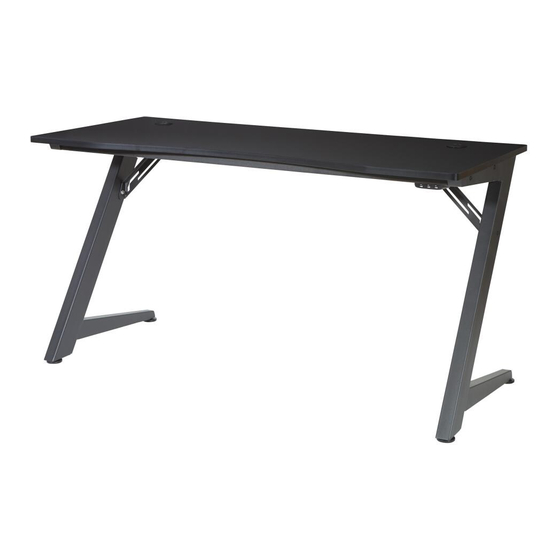

BETA BATTLESTATION GAME DESK
Assembly Instructions - Important:
Carefully unpack and identify each component before attempting to assemble. Refer to parts list. Please take care when
assembling the unit and always set the parts on a clean, soft surface. If you require any assistance with assembly, parts or
information on other products, please visit our website: www.officestar.net or call or write us.
Advertisement
Related Manuals for OSP Home Furnishings BETA BATTLESTATION BET25
Summary of Contents for OSP Home Furnishings BETA BATTLESTATION BET25
- Page 1 November, 2019 BET25 BETA BATTLESTATION GAME DESK Assembly Instructions - Important: Carefully unpack and identify each component before attempting to assemble. Refer to parts list. Please take care when assembling the unit and always set the parts on a clean, soft surface. If you require any assistance with assembly, parts or information on other products, please visit our website: www.officestar.net or call or write us.
-
Page 2: Limited Warranty
LIMITED WARRANTY OSP Home Furnishings™ warrants to the original purchaser that this product will be free from defects in material and workmanship as described below. OSP Home Furnishings™ will repair or replace, at its option, without charge to the original purchaser only, defective products or parts for one (1) year from the date of purchase. - Page 3 3. Rename all English discriptions to French discriptions. PARTS (A) Leg (2 PCS) (B) Top (1 PC) (C) Frame (1 PC) (D) Leg Support (2 PCS) (E) Bracket (1 PC) (F) LED Light Tube (1 PC) (G) Bracket (1 PC) (H) Bracket (1 PC) (I) USB Charger (1 PC) (J) Foot (4 PCS)
- Page 4 3. Rename all English discriptions to French discriptions. PARTS (K) LED Adapter (1 PC) (L) USB Adapter (1 PC) (M) Bracket (6 PCS) (N) Plastic Cap (2 PCS)
-
Page 5: Hardware List
HARDWARE LIST DRAWING DESCRIPTION SIZE QUANTITY Screw M3 x 10 12 PCS Screw M4 x 8 4 PCS Screw M4 x 14 9 PCS Bolt M6 x 16 2 PCS Bolt M6 x 40 8 PCS Bolt M6 x 50 6 PCS 4 PCS 2 PCS... - Page 6 STEP 1 STEP 2 (11) DO NOT FULLY TIGHTEN BOLTS AND NUTS.
- Page 7 STEP 3 (11) FULLY TIGHTEN BOLTS AND NUTS. STEP 4 (10) FULLY TIGHTEN SCREWS (3).
- Page 8 STEP 5 (10) FULLY TIGHTEN SCREWS (2) AND NUTS (7). STEP 6 (10) FULLY TIGHTEN ALL SCREWS (3).
- Page 9 STEP 7 (11) FULLY TIGHTEN ALL BOLTS (5). STEP 8...
- Page 10 STEP 9...
- Page 11 STEP 10 (10) FULLY TIGHTEN ALL SCREWS (1).
