OSP Home Furnishings BP-4211 Assembly Instructions Manual

Cocina kitchen island
Hide thumbs

Advertisement

Quick Links

Download this manual
July, 2019
BP-4211

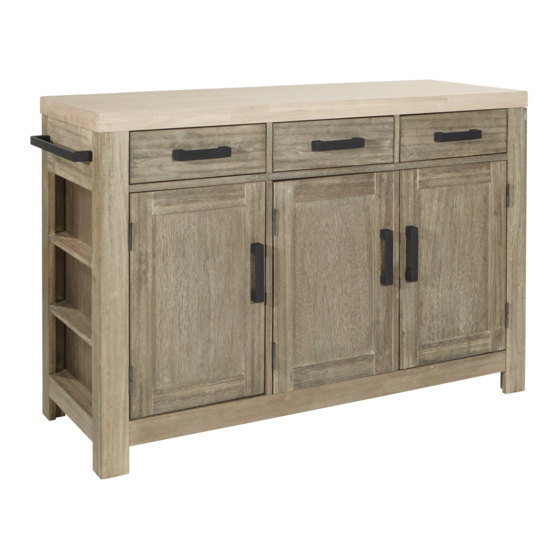

COCINA KITCHEN ISLAND
Assembly Instructions - Important:
Carefully unpack and identify each component before attempting to assemble. Refer to parts list. Please take care when
assembling the unit and always set the parts on a clean, soft surface. If you require any assistance with assembly, parts or
information on other products, please visit our website: www.officestar.net or call or write us.

Advertisement

loading
Need help?

Need help?

Do you have a question about the BP-4211 and is the answer not in the manual?

Questions and answers

Related Manuals for OSP Home Furnishings BP-4211

Summary of Contents for OSP Home Furnishings BP-4211

  • Page 1 July, 2019 BP-4211 COCINA KITCHEN ISLAND Assembly Instructions - Important: Carefully unpack and identify each component before attempting to assemble. Refer to parts list. Please take care when assembling the unit and always set the parts on a clean, soft surface. If you require any assistance with assembly, parts or...

  • Page 2: Limited Warranty

    LIMITED WARRANTY OSP Home Furnishings™ warrants to the original purchaser that this product will be free from defects in material and workmanship as described below. OSP Home Furnishings™ will repair or replace, at its option, without charge to the original purchaser only, defective products or parts for one (1) year from the date of purchase.
  • Page 3 PARTS (A) Top (1 PC) (B) Drawer (2 PCS) (C) Middle Drawer (1 PC) (D) Bottom Panel (1 PC) (E) Back Panel (1 PC) (F) Shelf (2 PCS) LEFT CENTER RIGHT (G) Door (3 PCS) (H) Divider (2 PCS) (I) Hardware Pack (1 PC) (J) Leaf Side Panel (1 PC)

  • Page 4: Hardware List

    PARTS (K) Right Side Panel (1 PC) (L) Partition (1 PC) HARDWARE LIST DRAWING DESCRIPTION SIZE QUANTITY Screw M4 x 20mm 16 PCS Bolt M6 x 30mm 29 PCS Shelf Pin 6 x 22mm 8 PCS Handle 151mm 6 PCS Towel Bar 375mm 2 PCS...
  • Page 5 STEP 1 REMOVE DRAWERS (B & C) FROM TOP (A). STEP 2 FULLY TIGHTEN BOLTS (2).
  • Page 6 STEP 3 FULLY TIGHTEN BOLTS (2). STEP 4 FULLY TIGHTEN BOLTS (2).
  • Page 7 STEP 5 FULLY TIGHTEN SCREWS (1) USING PHILLIPS SCREWDRIVER (NOT PROVIDED). STEP 6 FULLY TIGHTEN BOLTS (2).
  • Page 8 STEP 7 STEP 8...
  • Page 9 STEP 9 FULLY TIGHTEN SCREWS (1) USING PHILLIPS SCREWDRIVER (NOT PROVIDED). STEP 10...
  • Page 10 STEP 11 LEFT CENTER RIGHT FULLY TIGHTEN SCREWS (1) USING PHILLIPS SCREWDRIVER (NOT PROVIDED). STEP 12 RIGHT CENTER LEFT LEVELER IF NEEDED, ADJUST LEVELERS TO LEVEL.
