August, 2021
DGM26 / GVL26

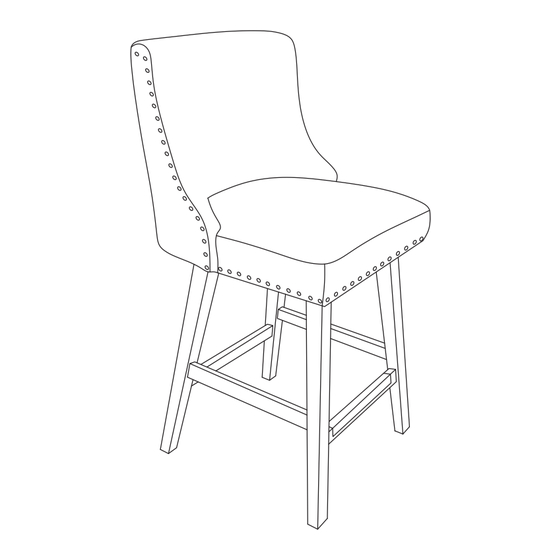

26" SWIVEL COUNTER STOOL
Assembly Instructions - Important:
Carefully unpack and identify each component before attempting to assemble. Refer to parts list. Please take care when
assembling the unit and always set the parts on a clean, soft surface. If you require any assistance with assembly, parts or
information on other products, please visit our website: www.officestar.net or call or write us.
Advertisement
Related Manuals for OSP Home Furnishings DGM26
Summary of Contents for OSP Home Furnishings DGM26
- Page 1 August, 2021 DGM26 / GVL26 26” SWIVEL COUNTER STOOL Assembly Instructions - Important: Carefully unpack and identify each component before attempting to assemble. Refer to parts list. Please take care when assembling the unit and always set the parts on a clean, soft surface. If you require any assistance with assembly, parts or...
-
Page 2: Limited Warranty
Monday through Friday 8:00 a.m. - 3:30 p.m. Pacific Time. To make a warranty claim, contact Parts Department. Provide model number, proof of purchase, description of the problem and obtain return authorization. At its option OSP Home Furnishings will: (a) Supply compatible ®... - Page 3 PARTS (1) Chair Body (1 PC) (2) Bidiagonal Leg (2 PCS) (4) Front Crossbar (1 PC) (3) Bidiagonal Leg (2 PCS) (6) Side Crossbar (2 PCS) (5) Rear Crossbar (1 PC) (7) Seat Frame (1 PC)
-
Page 4: Hardware List
HARDWARE LIST DRAWING DESCRIPTION SIZE QUANTITY 1 PC Allen Wrench 1/4” x 25mm 4 PCS Bolt 1/4” x 50mm 8 PCS Bolt 1/4” 13 PCS Lock Washer 1/4” 12 PCS Flat Washer Ø4 x 45mm 4 PCS Screw Phillips screwdriver also needed for assembly (not provided) - Page 5 STEP 1 DO NOT FULLY TIGHTEN BOLTS (10) STEP 2 DO NOT FULLY TIGHTEN SCREWS (13)
- Page 6 STEP 3 FULLY TIGHTEN BOLTS (9) ONLY STEP 4 CAREFULLY TURN TO THE UPRIGHT POSITION. APPLY FIRM PRESSURE TO ALIGN. FULLY TIGHTEN ALL BOLTS (10) & SCREWS (13).
