August, 2019

BP-SPTVCSL

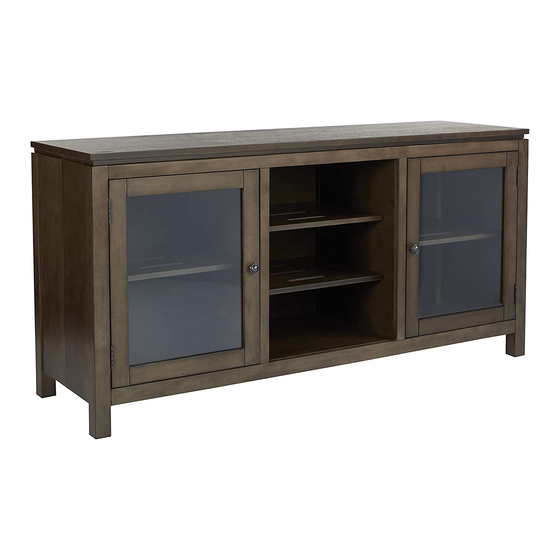

SPOKANE FOLDING TV CONSOLE

Assembly Instructions - Important:

Carefully unpack and identify each component before attempting to assemble. Refer to parts list. Please take care when

assembling the unit and always set the parts on a clean, soft surface. If you require any assistance with assembly, parts or

information on other products, please visit our website: www.officestar.net or call or write us.

Table of Contents

Do you have a question about the SPOKANE FOLDING TV CONSOLE and is the answer not in the manual?

Page 1 August, 2019 BP-SPTVCSL SPOKANE FOLDING TV CONSOLE Assembly Instructions - Important: Carefully unpack and identify each component before attempting to assemble. Refer to parts list. Please take care when assembling the unit and always set the parts on a clean, soft surface. If you require any assistance with assembly, parts or...
Page 2 LIMITED WARRANTY OSP Home Furnishings™ warrants to the original purchaser that this product will be free from defects in material and workmanship as described below. OSP Home Furnishings™ will repair or replace, at its option, without charge to the original purchaser only, defective products or parts for one (1) year from the date of purchase.
Page 3 PARTS (A) Top (1 PC) (B) Folding Frame (1 PC) (C) Bottom Panel (1 PC) (D) Divider Panel (2 PCS) (E) Adjustable Shelf (2 PCS) (F) Middle Shelf (2 PCS) (G) Leg (1 PC)
Page 4 HARDWARE LIST DRAWING DESCRIPTION SIZE QUANTITY Screw 4 x 28mm 2 PCS Bolt 1/4” x 32mm 12 PCS Flat Washer 1/4” x 16 x 1.5mm 12 PCS Wooden Dowel 8 x 30mm 8 PCS Shelf Support 16 PCS Knob 2 PCS Allen Wrench 1 PC Phillips Screwdriver also needed for assembly (not provided).
Page 5 STEP 2 FULLY TIGHTEN ALL BOLTS (2) USING ALLEN WRENCH (7). FULLY TIGHTEN LEG (G). STEP 3...
Page 6 STEP 4 FULLY TIGHTEN ALL BOLTS (2) USING ALLEN WRENCH (7). STEP 5 FULLY TIGHTEN ALL SCREWS (1).
