July, 2019
EVA26

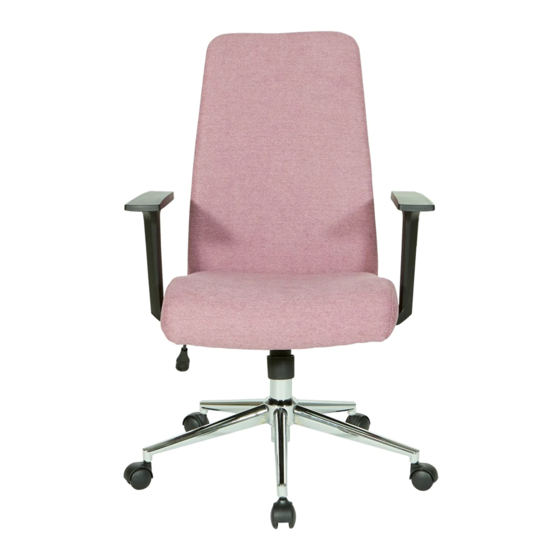

EVANSTON OFFICE CHAIR
Assembly Instructions - Important:
Carefully unpack and identify each component before attempting to assemble. Refer to parts list. Please take care when
assembling the unit and always set the parts on a clean, soft surface. If you require any assistance with assembly, parts or
information on other products, please visit our website: www.officestar.net or call or write us.
Advertisement
Table of Contents
Related Manuals for OSP Home Furnishings EVA26
Summary of Contents for OSP Home Furnishings EVA26
- Page 1 July, 2019 EVA26 EVANSTON OFFICE CHAIR Assembly Instructions - Important: Carefully unpack and identify each component before attempting to assemble. Refer to parts list. Please take care when assembling the unit and always set the parts on a clean, soft surface. If you require any assistance with assembly, parts or...
- Page 2 LIMITED WARRANTY OSP Home Furnishings™ warrants to the original purchaser that this product will be free from defects in material and workmanship as described below. OSP Home Furnishings™ will repair or replace, at its option, without charge to the original purchaser only, defective products or parts for one (1) year from the date of purchase.
- Page 3 PARTS (A) Caster (5 PCS) (B) Base (1 PC) (C) Pneumatic Cylinder (1 PC) (D) Mechanism (1 PC) (E) Seat (1 PC) (F) Backrest (1 PC) (G) Left Arm (1 PC) (H) Right Arm (1 PC)
- Page 4 HARDWARE LIST DRAWING DESCRIPTION QUANTITY Short Bolt 4 PCS Medium Bolt 4 PCS Long Bolt 6 PCS Allen Wrench 1 PC STEP 1 INSERT FIVE CASTERS (A) INTO BASE (B), PUSH HARD UNTIL YOU FEEL OR HEAR THE CASTER (A) SNAP INTO PLACE.
- Page 5 STEP 2 ATTACH MECHANISM (D) TO SEAT (E) USING FOUR SHORT BOLTS (1). FULLY TIGHTEN ALL SHORT BOLTS (1) USING ALLEN WRENCH (4). STEP 3 ATTACH ARMS (G & H) TO SEAT (E) USING THREE LONG BOLTS (3) FOR EACH ARM (G & H). FULLY TIGHTEN ALL LONG BOLTS (3) USING ALLEN WRENCH (4).
- Page 6 STEP 4 ATTACH BACKREST (F) TO SEAT (E) USING FOUR MEDIUM BOLTS (2). FULLY TIGHTEN ALL MEDIUM BOLTS (2) USING ALLEN WRENCH (4). STEP 5 PLACE THE ASSEMBLED SEAT ON TOP OF PNEUMATIC CYLINDER (C) AND APPLY DOWNWARD PRESSURE.
