July, 2019
SNN26

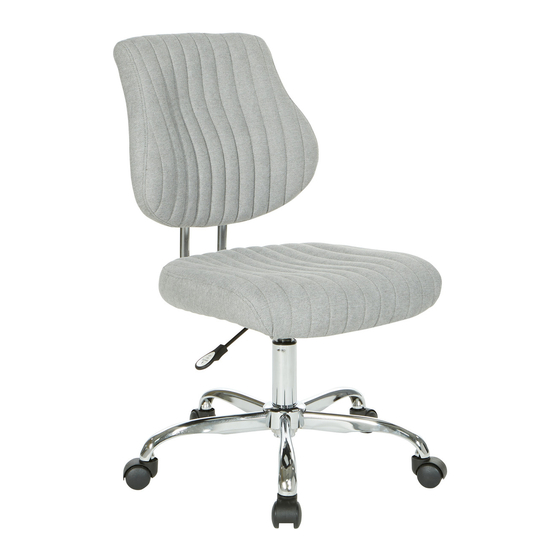

SUNNYDALE OFFICE CHAIR
Assembly Instructions - Important:
Carefully unpack and identify each component before attempting to assemble. Refer to parts list. Please take care when
assembling the unit and always set the parts on a clean, soft surface. If you require any assistance with assembly, parts or
information on other products, please visit our website: www.officestar.net or call or write us.
Advertisement
Table of Contents
Related Manuals for OSP Home Furnishings SNN26
Summary of Contents for OSP Home Furnishings SNN26
- Page 1 July, 2019 SNN26 SUNNYDALE OFFICE CHAIR Assembly Instructions - Important: Carefully unpack and identify each component before attempting to assemble. Refer to parts list. Please take care when assembling the unit and always set the parts on a clean, soft surface. If you require any assistance with assembly, parts or...
- Page 2 LIMITED WARRANTY OSP Home Furnishings™ warrants to the original purchaser that this product will be free from defects in material and workmanship as described below. OSP Home Furnishings™ will repair or replace, at its option, without charge to the original purchaser only, defective products or parts for one (1) year from the date of purchase.
- Page 3 PARTS (A) Base (1 PC) (B) Caster (5 PCS) (C) Pneumatic Cylinder (1 PC) (D) Seat Plate (1 PC) (E) Seat Cushion (1 PC) (F) Back Cushion (1 PC) (G) Back Support (1 PC)
- Page 4 HARDWARE LIST DRAWING DESCRIPTION QUANTITY Short Bolt 4 PCS Medium Bolt 3 PCS Long Bolt 2 PCS Lock Washer 3 PCS Allen Wrench 1 PC STEP 1 INSERT FIVE CASTERS (B) INTO BASE (A), PUSH HARD UNTIL YOU FEEL OR HEAR THE CASTER (B) SNAP INTO PLACE.
- Page 5 STEP 2 ATTACH SEAT PLATE (D) TO SEAT (E) USING FOUR SHORT BOLTS (1). FULLY TIGHTEN ALL SHORT BOLTS (1) USING ALLEN WRENCH (5). STEP 3 ATTACH BACK SUPPORT (G) TO BACK CUSHION (F) USING TWO LONG BOLTS (3). FULLY TIGHTEN ALL LONG BOLTS (3) USING ALLEN WRENCH (5).
- Page 6 STEP 4 ATTACH BACK SUPPORT (G) TO SEAT (E) USING THREE LOCK WASHERS (4) AND THREE MEDIUM BOLTS (2). FULLY TIGHTEN ALL MEDIUM BOLTS (2) USING ALLEN WRENCH (5). STEP 5 PLACE THE ASSEMBLED SEAT ON TOP OF PNEUMATIC CYLINDER (C) AND APPLY DOWNWARD PRESSURE.
