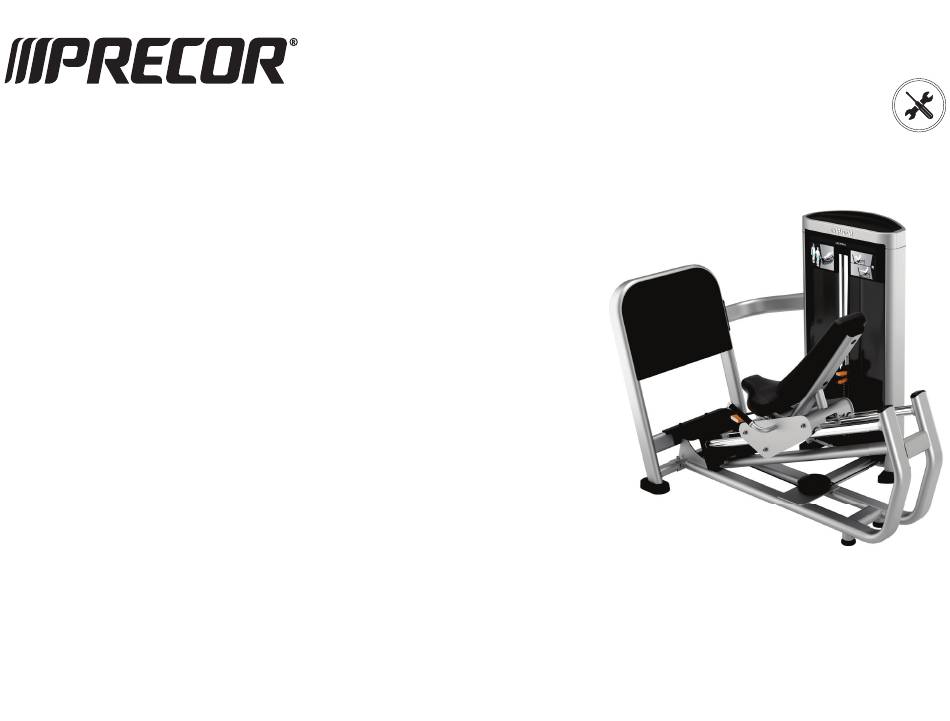

- Page 1 ENGLISH Resolute™ Strength Selectorized Line Leg Press RSL 602 Assembly Guide...
-
Page 2: Assembly Requirements
Assembly Requirements CAUTION Installation Requirements Required Tools Box cutter Rubber mallet Trademarks ©2019 Precor Inc. | Leg Press RSL 602 | Assembly Guide... -
Page 3: Parts List
Part # Name Quantity Main frame Weight plates 20 lb (9 kg) Upper cross brace Weight labels Bumpers Front frame Hole plugs Guide rods Kick plate Back pad Seat pad ©2019 Precor Inc. | Leg Press RSL 602 | Assembly Guide... -
Page 4: Frame Assembly
Insert both guide rod fasteners from user side to align kick plate. Hand tighten only. step. frame . Insert horizontal fasteners from main frame to front frame and fully tighten. ©2019 Precor Inc. | Leg Press RSL 602 | Assembly Guide... - Page 5 Gently rock the frame to align. Tighten all M12 fasteners to a torque of 55 ft-lb (75 N-m). Do not tighten the M10 screws installed in step 1 at this time. ©2019 Precor Inc. | Leg Press RSL 602 | Assembly Guide...
-
Page 6: Seat Assembly
Note fasteners. Attach the back pad CAUTION! hole plugs Route the Cable Image Hardware Instructions replace the cable retainer. Tighten to 50 ft-lb (67 N-m) of torque. ©2019 Precor Inc. | Leg Press RSL 602 | Assembly Guide... - Page 7 Finish the Weight Stack Tower Image Hardware Instructions step 1 of the Frame Assembly. guide rods bumpers top plate assembly user side. ©2019 Precor Inc. | Leg Press RSL 602 | Assembly Guide...
- Page 8 Secure them to the kick plate. Let the guide rods drop onto the bolts and fully tighten the bolts. Tighten M10 screws to 32 ft-lb (43 N-m) of torque. M10 nylon lock nut bumper frame. M10 nylon lock nut ©2019 Precor Inc. | Leg Press RSL 602 | Assembly Guide...
- Page 9 ALL 41 mm 1.61 inch (41mm). be no more than Tighten the locking bolt against the select stem to 50 ft-lb (81 N-m) of torque. ©2019 Precor Inc. | Leg Press RSL 602 | Assembly Guide...
- Page 10 Repeat for the front middle shrouds Install the upper rear and front shrouds . Ensure to hook them Recommended bolt torque is 25 ft-lb (34 N-m). Securely snap top tray into place. ©2019 Precor Inc. | Leg Press RSL 602 | Assembly Guide...
-
Page 11: Complete The Assembly
Complete the Assembly equipment. IMPORTANT types. Standards can be changed or updated. Precor recommends that you keep apprised of your local industry standards. Precor shall not be liable for fail Final Checklist • • • • • • • ©2019 Precor Inc. | Leg Press RSL 602 | Assembly Guide...
