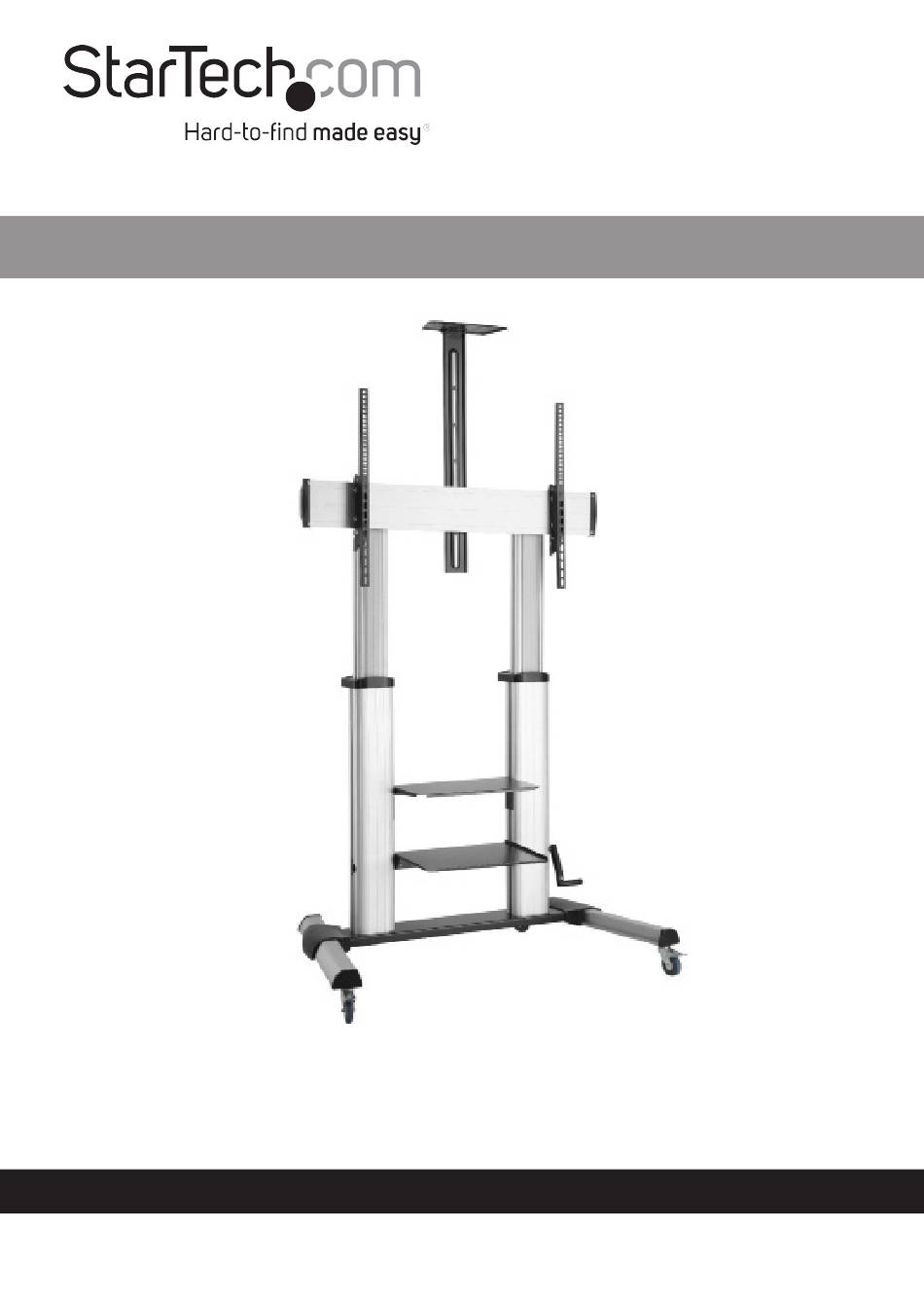

- Page 1 Height-Adjustable Mobile TV Cart with Crank Handle User Manual SKU#: 1110C-MOBILE-TV-CART For the latest information and specifications visit www.startech.com/1110C-MOBILE-TV-CART Manual Revision: 05/15/2024...
-
Page 2: Compliance Statements
This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual... -
Page 3: Safety Statements
Sicherheitsmaßnahmen • Die Installation und/oder Montage des Produkts sollte von einem zertifizierten Fachmann gemäß den örtlichen Sicherheits- und Bauvorschriften durchgeführt werden. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 4: Warning Statements
Failure to do so may result in serious personal injury. Avertissements • StarTech.com Ltd. n’est pas responsable des dommages matériels et/ou corporels résultant des procédures d’installation décrites dans ce document To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 5 Le non-respect de cette consigne peut entraîner des blessures corporelles graves. Varningsmeddelanden • Se till att du monterar produkten i enlighet med instruktionerna. • Läs hela manualen och se till att du förstår instruktionerna innan du börjar To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 6 • Dit product is alleen bedoeld voor binnengebruik en mag niet buiten worden gebruikt. • Draai de schroeven niet te strak vast wanneer u dit product in elkaar zet. Als u To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 7 • 本製品に装置を積載する前に、 組み立てと設置が適切に行われたか確認 して下さい。 また、 積載する装置の重量に本製品が対応しているか確認し て下さい。 • 転倒注意 ！ モニタが一番高い位置にある状態でカートを動かさないで下さ い。 また、 モニタを押してカートを動かすのはやめて下さい。 • コードやケーブルの上、 または凹凸のある床面でカートを移動させないで 下さい。 • チップの危険。 この製品は自立型であるため、 取り扱いを誤ったり、 過負荷 になったりすると転倒しやすくなります。 製品を移動、 ロード、 アンロード、 お To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 8: Mensagens De Aviso
• Leia todo o manual e certifique-se de que entende as instruções antes de começar a montar e a utilizar este produto. • Não exceda a capacidade de peso deste produto. Sobrecarregar este produto To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 9: Advertencias De Uso
• No permita que los niños se suban a este producto o que lo utilicen sin la debida supervisión de un adulto. • El uso de este producto es solo para interiores y no debe utilizarse en To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support viii... - Page 10 • Die Montage dieses Produkts ist auf die Ausführung von zwei Personen ausgelegt. Versuchen Sie nicht ohne Hilfe, dieses Produkt zu montieren und Geräte zu installieren. • Bevor Sie Geräte zu diesem Produkt hinzufügen, vergewissern Sie sich, dass To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 11: Table Of Contents
Table of Contents Compliance Statements ................i Safety Statements ..................ii Warning Statements ................iii Product Diagram ..................1 Front-Angled View ............................ 1 Product Dimensions ................2 Front View ..............................2 Product Information ................3 Package Contents ............................. 3 Requirements ..................6 Installation ....................7 Attach the Legs and Casters ........................7 Attach the Left and Right Columns to the Base ................ -
Page 12: Product Diagram
Connecting Plate Right TV Mounting Left TV Mounting Bracket Bracket Mounting Plate Right Column Upper Left Column Shelf Crank Lower Handle Shelf Right Leg Middle Left Leg Base Casters To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 13: Product Dimensions
Product Dimensions Front View Dimensions (mm) To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 14: Product Information
Mounting Plate Plastic Cover Qty: 2 (F) Qty: 1 Qty: 1 Qty: 2 Crank Handle Right Column Caster Left Column Qty: 1 Qty: 1 Qty: 4 Qty: 1 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 15 Camera Shelf Top Cover TV Mounting TV Mounting Bracket - Left Bracket - Right Qty: 1 Qty: 2 Qty: 1 Qty: 1 Upper Shelf Lower Shelf Connecting Bar Connecting Plate Qty: 1 Qty: 1 Qty: 1 Qty: 1 M5 x 40 mm M6 x 25 mm Hex M4 x 6 mm M4 x 6 mm...
- Page 16 M6 x 8 mm M8 x 25 mm Hex 5 mm Hex Key M6 x 14 mm Screws (A1) Head Screws (Z) (B1) Screws (Y) Qty: 12 Qty: 12 Qty: 1 Qty: 4 M6 x 14 mm Pan M6 x 30 mm Pan 19 mm Wrench M5 x 14 mm Pan Head Screws...
-
Page 17: Requirements
(Optional) Web Camera x 1 • (Optional) Media Device x 1 • Compatible VESA mounting hole patterns: 200x200, 200x400, • 300x300, 400x200, 400x300, 400x400, 600x400, 1000x600 Phillips Head Screwdriver x 1 • To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 18: Installation
Flip the assembly upright so the Casters are making contact with the floor. (For uneven surfaces) Flip the assembly upside down and use the Wrench (C1) to adjust the Nut located on each Caster. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 19: Attach The Left And Right Columns To The Base
Repeat Step 2 on the Left Column with the opposite end of the Connecting Bar. Gently tighten the Connecting Bar screws with a Phillips Head Screwdriver. Note: Do not over- tighten. Connecting Bar Screw To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 20 Middle Base. Attach the Left and Right Columns to the Middle Base using six M8 x 25mm Screws (Z). Tighten screws with the Hex Key (B1). Hex Key (B1) To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 21: Install The Mounting Plate And Crank Handle
Left and Right Columns using four M6 x 14mm screws (Y). Tighten with a Phillips Head Screwdriver. (Figure 5) Mounting Plate (rear view) Right Column (rear view) Left Column Mounting (rear view) Point Figure 5 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 22 Handle downward. Insert the M5 x 40mm screw (U) through the Crank Handle and Outer Right Column as shown. Tighten with a Phillips Head Screwdriver to secure positioning. (Figure 7) To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 23: Install The Upper And Lower Shelves
Install the Upper and Lower Shelves Note: Install the Lower Shelf first Figure 8a Figure 8 (front view) Screw Holes Left Lower Shelf Column (rear view) Figure 8b Lower Shelf Lower Shelf (front view) Connecting Bar Lower Shelf Bracket Lower Shelf Brackets Position the Lower Shelf over the Connecting Bar and align the front and rear screw holes on the Lower Shelf with the... - Page 24 M6 x 8mm screws (A1). Note that there are four total mounting points. Tighten with a Phillips Head Screwdriver. (Figure 9a & 9b) Note: Please attach the upper shelf using all four screws To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 25: Attach The Tv Mounting Brackets
Holes on the TV, and select the appropriate mounting hardware to attach the VESA TV Mounting Brackets. Place the TV face-down on a protective/soft surface with the VESA Mounting Points facing up. (Figure 10a) To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 26 TV Mounting Brackets Warning: Do not over-tighten the M-Type Screws. If any unexpected resistance is encountered, stop immediately and attempt to use a different length of M-Type Screw. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 27: Mount The Tv To The Mounting Plate
Position the TV along the Mounting Plate. Tighten the two Bottom Screws counter-clockwise on the TV Mounting Brackets using a Phillips Head Screwdriver to secure the TV to the Mounting Plate. (Figure 11 & 11a) To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 28: Assemble The Camera Shelf
Connecting Plate. (Figure 12) Insert two M4 x 6mm Screws (X) through the rear screw holes on the Camera Shelf. Tighten with a Phillips Head Screwdriver. (Figure 12) To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 29: Attach The Camera Shelf To The Mounting Plate
Attach the Camera Shelf to the Mounting Plate Camera Shelf Figure 13 Connecting Plate Mounting Screws Mounting Plate (rear view) Remove the two Mounting Screws from the back side of the Mounting Plate. (Figure 13) Determine the desired height of the Camera Shelf and align the slots on the Connecting Plate to the Mounting Screw Holes on the Mounting Plate. -
Page 30: Operation
Disconnect and remove the Web Camera and any Media Devices from the Mobile TV Cart. Unplug and move any Cables that may interfere with, or prevent, the movement of the Mobile TV Cart. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 31: Adjust The Height Of The Upper Shelf
(Figure 15) Adjust the Upper Shelf to the desired height. Tighten both Support Block Screws on the Left and Right Upper Support Blocks to secure into position. (Figure 15) To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 32: Adjust The Height Of The Tv Mount
Once the height has been set, insert the M5 x 40mm Screw (U) through the Screw Hole in the Crank Handle and Outer Right Column. Tighten with a Phillips Head Screwdriver to lock into position. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 33: Attach Adhesive Cable Management Clips
Attach Adhesive Cable Management Clips Peel and stick the Adhesive Cable Management Clips onto the assembly where required, to neatly bundle and organize cables between devices. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 34: Warranty
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 35 Hard-to-find made easy. At StarTech.com, that isn’t a slogan. It’s a promise. StarTech.com is your one-stop source for every connectivity part you need. From the latest technology to legacy products — and all the parts that bridge the old and new — we can help you find the parts that connect your solutions.
