Summary of Contents for Ronix 6315

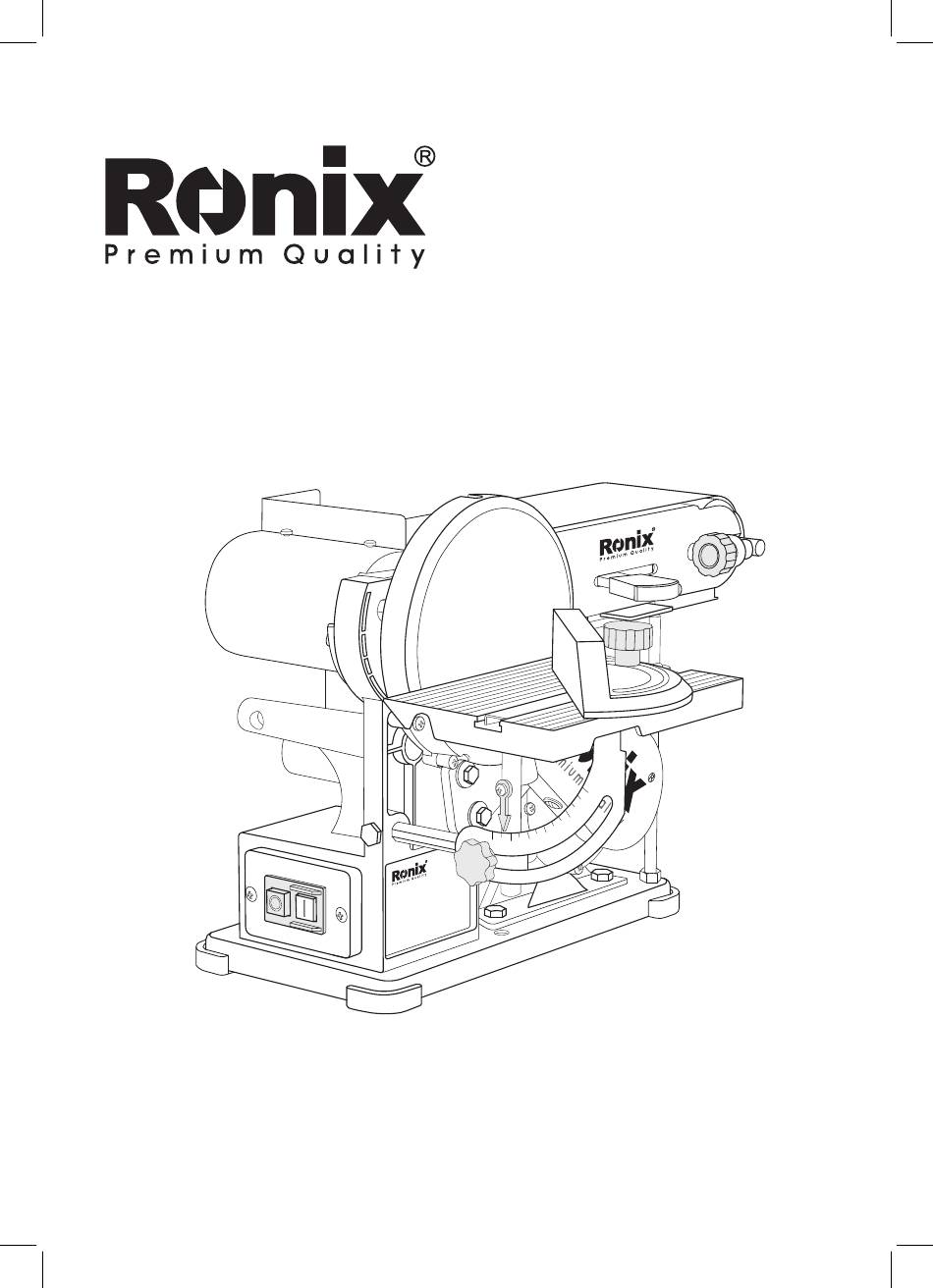

  • Page 1 BAND UND SCHEIBENSCHLEIFER 6315 www.ronixtools.com...
  • Page 3: Technische Daten

    TECHNISCHE DATEN Modell 6315 Motorleistung 350 W Motortyp Induktionsmotor Spannung 220~240 V Frequenz 50Hz Leerlaufdrehzahl / Scheibe 1450U/min Scheibendurchmesser 150mm Scheibentischgröße 190mm×125mm Scheibentischneigung 0° - 60° U/min Staubanschluss φ40mm Auslastungsdrehzahl / 292RPM Riemen Riemenabmessung 100mm×914mm Riementischgröße 434(L)mm×85(W)mm Riementischnachstellung 0°- 90° Grad Staubanschluss φ40mm...
  • Page 4 Gesamtgröße 478(L)mm×387(W)mm Gesamthöhe 321mm Basisgröße 314(L)mm×164(W)mm Antrieb Synchronous Belt Tischmaterial Cast Aluminum Gewicht (N.W) 12Kg Aluminiumscheibe 1 Stk., Scheibenschleifer 1 Stk., Klett- Schleifscheibe 1 Stk., Arbeitstisch für Scheiben 1 Stk., Unterer Scheibenabdeckung 1 Stk., Obere Scheibenabdeckung 1 Stk., Arbeitstisch für Scheiben 1 stk, Gummi Füße 4 Stk., Scheiben-Staubanschluss ø40 mm ×...
  • Page 5 GERÄTEKOMPONENTEN 10 11 Bedienungsanleitung...
  • Page 6 1- Maschinenrahmen 2- Motor 3- Rollenstopp und Parallelanschlag 4- Clamping Handle 5- Transportrolle 6- Schleifband 7- Ein-/Ausschalter 8- Zaun 9- Antriebsrolle 10- Aluminiumscheibe 11- Schleifscheibe 12- Arbeitstisch 13- Gehrungsschablone 14- Tischneigungswinkel-Skala 15- Tischverriegelungsgriff SICHERHEIT SICHERHEITSANWEISUNG Lesen Sie die beiliegenden Sicherheitshinweise, die zusätzlichen Sicherheitshinweise und die Anweisungen.
  • Page 7: Besondere Sicherheitsanweisungen

    Weist auf die Gefahr eines elektrischen Schlags hin. Halten Sie Zuschauer fern. Tragen Sie Gehör- und Augenschutz. Tragen Sie eine Staubschutzmaske. Das Produkt entspricht den geltenden Sicherheitsstandards in den europäischen Richtlinien. BESONDERE SICHERHEITSANWEISUNGEN - Die folgenden Punkte müssen überprüft werden: - Stimmt die Anschlussspannung der Maschine mit der Netzspannung überein.
  • Page 8: Verwendung Von Verlängerungskabeln

    Ihrem Land geltenden Sicherheitsvorschriften, um das Risiko von Feuer, elektrischem Schlag und persönlichen Verletzungen zu reduzieren. Lesen Sie die folgenden Sicherheitshinweise sowie die beiliegenden Sicherheitshinweise. Überprüfen Sie immer, ob die Stromversorgung der Spannung auf dem Typenschild entspricht. VERWENDUNG VON VERLÄNGERUNGSKABELN Verwenden Sie nur ein zugelassenes Verlängerungskabel, das für die Leistungsaufnahme der Maschine geeignet ist.
  • Page 9: Wartung

    Tuch, das mit Seifenlauge befeuchtet ist. Verwenden Sie keine Lösungsmittel wie Benzin, Alkohol, Ammoniak usw. Solche Chemikalien können die Kunststoffkomponenten beschädigen. AUSTAUSCH VON NETZKABELN Wenn das Netzkabel beschädigt ist, muss es von qualifiziertem Fachpersonal von Ronix ersetzt werden, um Gefahren zu vermeiden Bedienungsanleitung...
  • Page 10 BELT&DISC SANDER 6315...
  • Page 11: Technical Specification

    TECHNICAL SPECIFICATION Model 6315 Motor Power 350 W Motor type Induction Motor Voltage 220~240 V Frequency 50 Hz No-load Speed / Disc 1450RPM Disc Diameter 150mm Disc Table Size 190mm×125mm Disc Table Tilt 0° - 60° Degree dust port outlet φ40mm...
  • Page 12 Overall Size 478(L)mm×387(W)mm Total height 321mm Base Size 314(L)mm×164(W)mm Drive Synchronous Belt Table material Cast Aluminum Weight(N.W) 12Kg Aluminum Disc 1pc, Disc Sander 1pc, Disc Sand Velcro 1pc, Disc Work Table 1pc, Disc Bottom Cover 1pc, Disc Top Cover 1pc, Disc Work Table 1set, Rubber Feet 4pcs, Disc Dust Port Outlet...
  • Page 13: Part List

    PART LIST 10 11 User Manual...
  • Page 14: Safety Instruction

    1- Machine frame 2- Motor 3- Roller Stop and parallel stop 4- Clamping Handle 5- Transport Roller 6- Sanding Belt 7- On/off Switch 8- Fence 9- Drive Roller 10- Aluminum Disc 11- Sanding Disc 12- Working Table 13- Miter Gauge 14- Table Tilt Angle Scale 15- Table Lock Handle SAFETY...
  • Page 15: Special Safety Instructions

    Keep bystanders away. Wear ear and eye protection. Wear a dust mask The product is in accordance with the applicable safety standards in the European directives. SPECIAL SAFETY INSTRUCTIONS - The following points need to be checked: - Do the connecting voltage of the machine correspond with the mains voltage. - Are the mains lead and the mains plug in a good condition;...
  • Page 16: Machine Information

    USING EXTENSION CABLES Only use an approved extension cable suitable for the power input of the machine. The minimum conductor size is 1.5 mm2. When using a cable reel always unwind the reel completely. IMMEDIATELY SWITCH OFF THE MACHINE WHEN: - Excessive sparking of the carbon brushes and verticiliosis in the collector.
  • Page 17: Installation

    ASSEMBLY INSTALLATION Avoid the use of long extension cables. Do not forget to leave enough space around the machine for the workpieces to be sanded. ASSEMBLY - Put the machine frame on its head and press the four rubber stops into the foot of the frame.
  • Page 18 Fig.D - Place the work plate (12) with the shaft in the machine frame and secure the work plate with the bolt in the side of the machine frame. Check with a 90° sash angle on the work plate and against the sanding disc if the angle is exactly 90°...
  • Page 19 To prevent the workpiece or your fingers from getting caught between the work plate (12) and the sanding disc (11), the space between work plate (12) and sanding disc (11) must not exceed 1.6mm. THE CHOICE OF SANDING PAPER With coarse sanding paper (P 60) generally most of the material can be removed, and fine sanding paper (P 150) is then used for finishing.
  • Page 20 the sanding belts with the use of the winged nut at the right roller. The direction of running of the belt is adjusted correctly if the sides of the sanding belt are running parallel to the bearing plate. Fig.F Fig.G Fig.H THE SANDING DISC The standard diameter is 150 mm.
  • Page 21 VERTICAL PLACING OF THE SANDING BELT For more flexibility of the sanding belt its bottom side can be used, because there is no bearing plate. For an easy reach of this bottom side the sanding belt can be placed in vertical position.( see Fig. I) - Loosen the two nuts at the front of the sanding machine, around the left transport roller shaft, with the use of an open end spanner.
  • Page 22: Operation

    FIG. I OPERATION Always stand facing the machine so that you always have a good overview. SWITCHING ON/OFF - Press the switch into position ‘I’ to put your sanding machine into operation. - To switch off the machine the same switch needs to be pressed to position ‘0’.
  • Page 23: Maintenance

    Do not use any solvents such as gasoline, alcohol, ammonia, etc. Chemicals such as these will damage the synthetic components. REPLACE POWER CORDS If the supply cord is damaged, it must be replaced by the Ronix qualified persons, in order to avoid a hazard. User Manual...
  • Page 24 www.ronixtools.com...
