Ronix 6200 User Manual

Drywall sander
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
DRYWALL SANDER
6200

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 6200 and is the answer not in the manual?

Questions and answers

Related Manuals for Ronix 6200

Summary of Contents for Ronix 6200

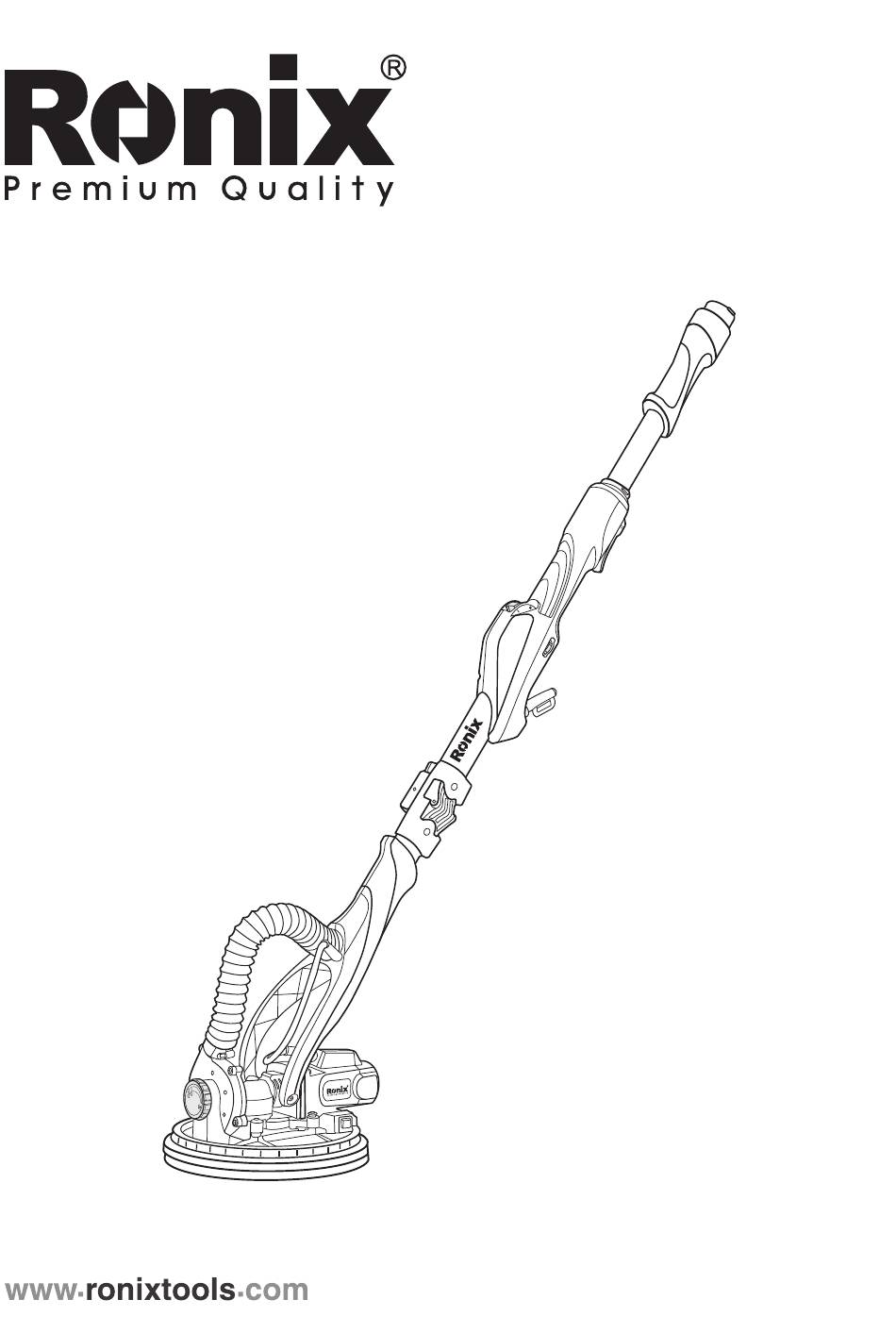

  • Page 1 DRYWALL SANDER 6200...

  • Page 3: Technical Specification

    TECHNICAL SPECIFICATION 6200 Model Power 820W Frequency 50 - 60 Hz Voltage 220-240V Vibration Sound Volume LpA: 86 dB(A) , LwA: 94 dB(A) Motor Type brushed motor "Amperage Capacity" No load speed 600-1900(rpm) Dimensions 260mm×260mm×1100mm Sanding Motion Type Rotation Grinding Pad Diameter (mm)

  • Page 4: Part List

    PART LIST Dust extraction outlet (with locking sleeve) Main handle ON/OFF switch Electronic speed control wheel Folding lock Motor Housing(self-suction) LED Switch Round sanding head Round sanding pad Stand (hook & loop system) Vacuum hose Connector (pre-assembled 38mm) Hex wrench S5 Dust bag Round sanding disc Extension rod...

  • Page 5: Work Area Safety

    SAFETY GENERAL SAFETY INSTRUCTIONS WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire, and/or serious injury. Save all warnings and instructions for future reference. WORK AREA SAFETY - Keep the work area clean and well-lit. Cluttered or dark areas invite accidents.

  • Page 6: Personal Safety

    PERSONAL SAFETY - Stay alert, watch what you are doing, and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol, or medication. A moment of inattention while operating power tools may result in serious personal injury.
  • Page 7 parts, breakage of parts, and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. - Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
  • Page 8 safe operation. d- The rated speed of the accessory must be at least equal to the maximum speed marked on the power tool. Accessories running faster than their rated speed can fly apart. e- The outside diameter and the thickness of your accessory must be within the capacity rating of your power tool.

  • Page 9: Kickback And Related Warnings

    j- Hold the power tool by insulated gripping surfaces only, when performing an operation where the cutting accessory may contact hidden wiring or its cord. A cutting accessory contacting a “live” wire may make exposed metal parts of the power tool “live” and could give the operator an electric shock. k- Position the cord clear of the spinning accessory.

  • Page 10: Before Use

    the operator, depending on the direction of the wheel’s movement at the point of pinching. Abrasive wheels may also break under these conditions. - Kickback is the result of power tool misuse and incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below.

  • Page 11: After Use

    - Always check that the supply voltage is the same as the voltage indicated on the nameplate of the tool (tools with a rating of 230V or 240V can also be connected to a 220V supply). DO NOT WORK MATERIALS CONTAINING ASBESTOS (asbestos is considered carcinogenic).

  • Page 12: Extension Shaft

    ATTACHING AND CHANGING SANDING DISC - Place the sanding disc S in the center of the sanding pad and press on. The holes in the sanding disc must be in alignment with the extraction holes in the sanding pad. - For round sanding pad only: conduct a test run to check that the sanding disc is clamped in the center.

  • Page 13: Dust Suction

    DUST SUCTION - Remove the vacuum hose with a dust bag from the product, if necessary. - Hold the dust bag over a suitable rubbish bag. - Pull the clasp off the dust bag and empty it into the rubbish bag. - Slide the clasp onto the rails on the dust bag and re-attach the vacuum hose and dust bag to the product.

  • Page 14: Switching The Machine On And Off

    TOOL STANDARD - Stand prevents the hose from damage when putting the tool aside during work breaks. SWITCHING THE MACHINE ON AND OFF - Turn on/off the drywall sander by turning switch On/Off - Adjust the speed by turning the electronic speed control the user can choose the different speeds for different sanding surfaces.

  • Page 15: Sanding Operations

    SWITCHING THE LED LIGHT ON AND OFF - Turn on /off the LED light by pressing LED Switch. SANDING OPERATIONS Once the machine and vacuum cleaner are set up and all safety measures and equipment are in place, begin by turning on the vacuum cleaner and then the machine.
  • Page 16 SANDING CEILING - keep the sanding pad and handle vertical, and keep the sanding pad and ceiling at the same level. - The best technique is to use overlapping sweeps and keep the head in constant motion. Never stop too long in any one place or there will be swirl marks.
