BELT SANDER
9103

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 9103 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ronix 9103

Summary of Contents for Ronix 9103

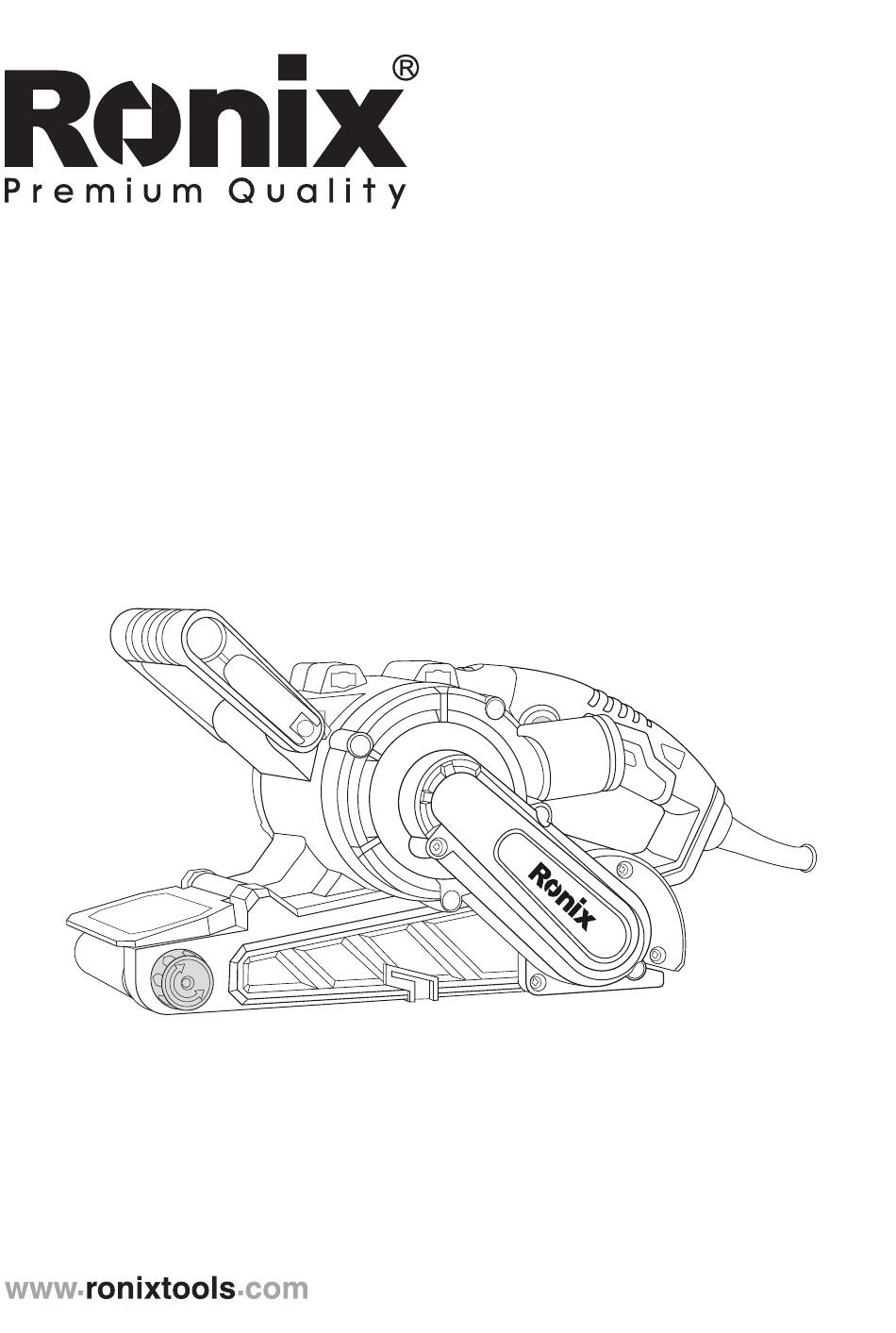

  • Page 1 BELT SANDER 9103...

  • Page 2: Technical Specification

    Power 1050W Voltage 220-240V Frequency 50-60Hz Belt Size 76×533mm Belt Speed 150-360m/min Weight 3.4Kg Packing Ronix Color Box Accessories Dust Bag PART LIST Variable speed Handle locking arm dust tube Front handle Cover Sanding belt belt cover Adjustable knob PLEASE READ BEFORE RETURNING THIS PRODUCT FOR ANY REASON.

  • Page 3: Safety Guidelines - Definitions

    - Always start your belt sander before it is contact with the workpiece and do not switch it off until after it has been lifted from the workpiece. Always hold your belt sander with two hands. SAFETY GUIDELINES-DEFINITIONS It is important for you to read and understand this manual. The information it contains related to protecting YOUR SAFETY and PREVENTING PROBLEMS.

  • Page 4: Work Area Safety

    WORK AREA SAFETY - Keep work area clean and well lit. Cluttered or dark areas lead to accidents. - Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
  • Page 5 while operating power tools may result in serious personal injury. b- Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
  • Page 6 power tool. Power tools are dangerous in the hands of untrained users. e- Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use.
  • Page 7 - crystalline silica from bricks and cement and other masonry products, and - arsenic and chromium from chemically-treated lumber. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

  • Page 8: Personal Safety

    OTHER IMPORTANT SAFETY WARNINGS AND INSTRUCTIONS SANDING LEAD BASE PAINT Sanding of lead based paint is NOT RECOMMENDED due to the difficulty of controlling the contaminated dust. The greatest danger of lead poisoning is to children and pregnant Women. Since it is difficult to identify whether or not paint contains lead without a chemical analysis, we recommend the following precautions when sanding any paint: PERSONAL SAFETY...

  • Page 9: Cleaning And Disposal

    - Areas where paint removal is occurring should be sealed with plastic sheeting of 4 milsthickness. - Sanding should be done in a manner to reduce tracking of paint dust outside the work area. CLEANING AND DISPOSAL - All surfaces in the work area should be vacuumed and thoroughly cleaned daily for the duration of the sanding project.
  • Page 10 3 POSITION HANDLE - FIGURE 1 A locking mechanism on the side of the handle can be loosened to allow the handle to move. To adjust the handle, pull out on the locking arm (Figure 1) and move the handle to the desired position (Figure 1A). Once the handle is in position, push the locking arm in to lock the handle into position.
  • Page 11 WARNING! The sanding belt is exposed when the belt cover is raised. Use extra caution when operating in this mode. ADJUSTING THE SANDING BELT TRACKING - FIGURE 3 Turn the machine upside down (Figure3), hold it firmly with one hand, start motor and release switch immediately after observing tracking of sanding belt.
  • Page 12 CHANGING THE SANDING BELT - FIGURE 4 & 5 WARNING! To prevent accidental operation, turn off and unplug sander before changing the sanding belt. Pull the lever shown in Figure 5 to release the tension on the sanding belt. Pull the sanding belt from the two rollers. Put the new 3 in. x 21 in.

  • Page 13: Operation

    the sander and unzip the bag over a trash container. Note: A vacuum cleaner attachment is available as a service part at extra cost. To find your nearest Service Center location. WARNING! Fire hazard. Collected sanding dust from sanding surface coatings(polyurethane, linseed oil, etc.) can self-ignite in sander dust bag or elsewhere and cause fire.

  • Page 14: Handy Hints

    operation, press the on/off switch thenpress the lock-on button (Figure 10) and release the on/off switch. To stop your belt sander, press the on/off switch to release the lock-on button. Release the on/off switch. Pin Lock On/Off Switch HANDY HINTS Always start your belt sander before it is in contact with the workpiece and do not switch it off until after it has been lifted from the workpiece.
  • Page 15 TOOL CARE AND MAINTENANCE Never apply excessive force when you use your belt sander. Too much force can result in overload and cause damage to the motor or the workpiece. If your belt sander becomes too hot, operate it without load for 2 minutes.
