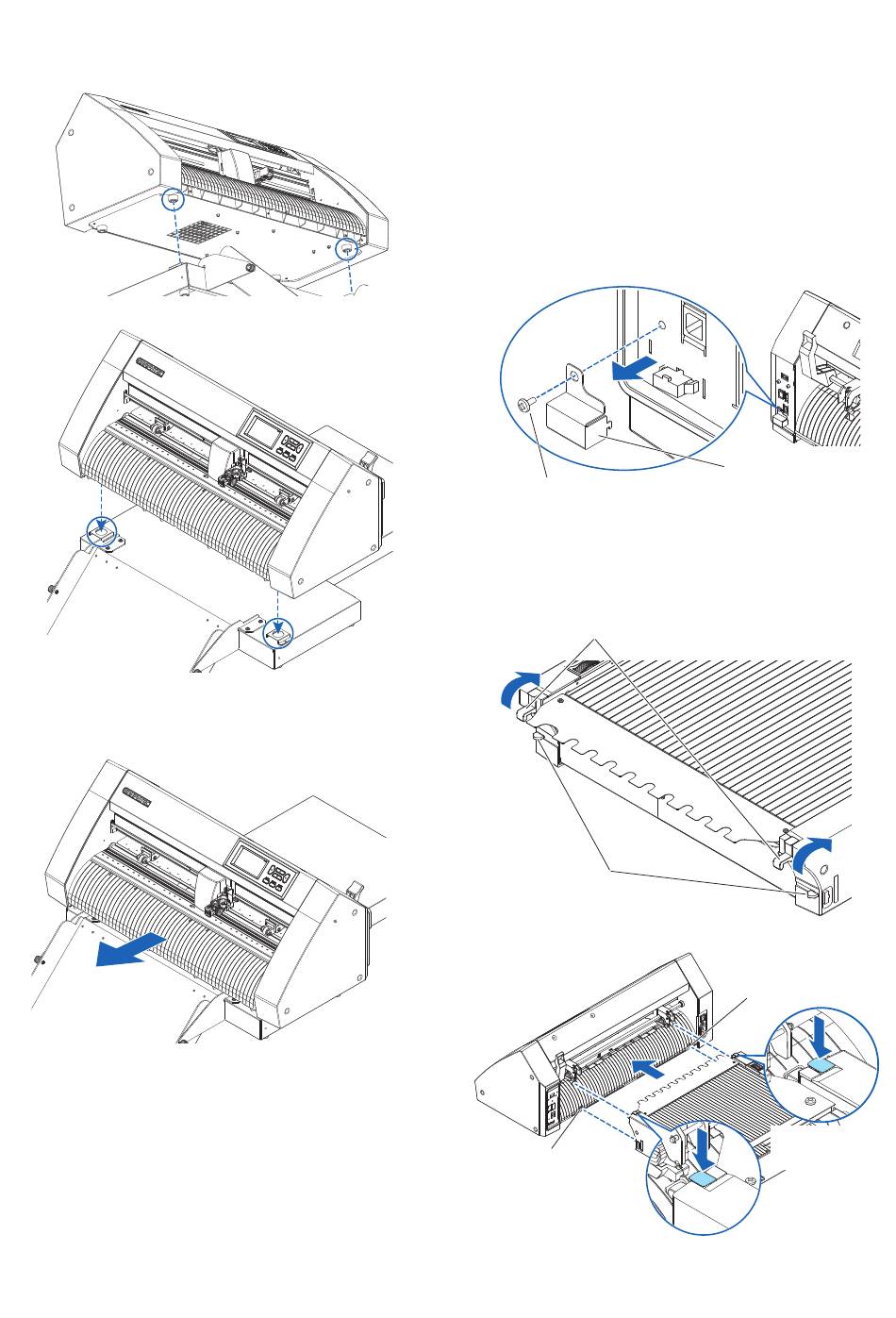

How to set up the CE8000-40
1. Insert the feet of the CE8000-40 into the positioning holes
on the CE8000 base.
2. After installing the CE8000-40, press the CE8000-40 in the
direction of the arrow in the figure below.
How to connect the CE8000-40
Check that the CE8000-40's power switch is off (the "○" side
is pressed down).
1. Use a Phillips screwdriver to remove the ASF1-30
Connection cover mounting screws, and then remove the
ASF1-30 Connection cover.
* Please prepare your own Phillips screwdriver.
* The Connection cover fixing screw will be used again in
step 4.
* Please keep the removed Connection cover in a safe
place.
Connection cover fixing screws
2. Install the ASF1-30.
Raise the ASF1-30 Fixing hook, insert the ASF1-30
Positioning protrusions into the CE8000-40, and then
push the ASF1-30 fixing hook in from above.
ASF1-30 Fixing hooks
ASF1-30
Positioning protrusions
Positioning notch
Connection cover
Positioning notch
After installation, push
in the ASF1-30 fixing
hook.
After installation,
push in the ASF1-30
fixing hook.
