GRAPHTEC ASF1-30 Setup Manual page 3

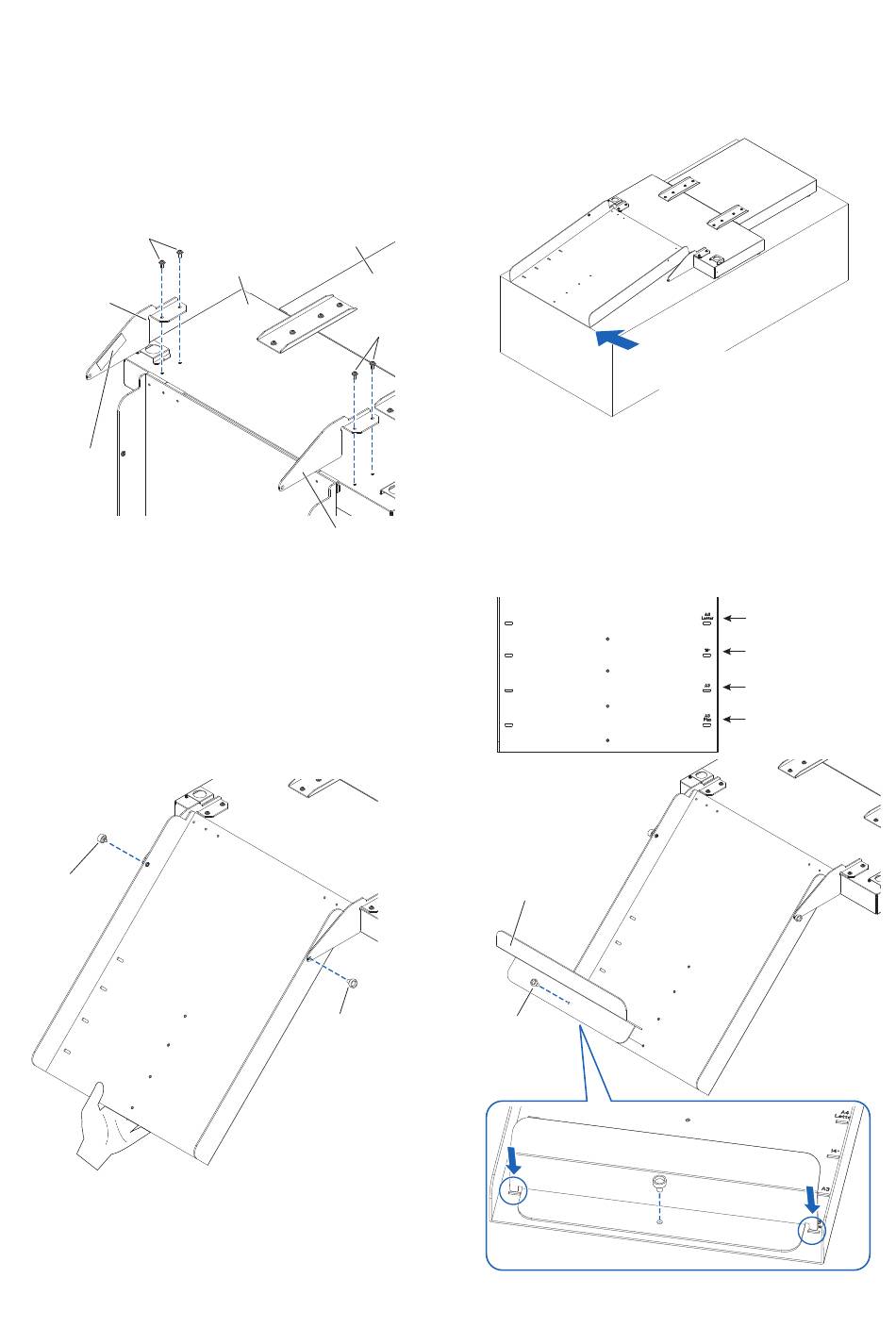

3. Use a Phillips screwdriver to attach the Tray fixing bracket
(A) and the Tray fixing bracket (B) with the four Screws B.
* When attaching the Tray fixing bracket (A) and (B), make
sure that the Tray protection tape that stuck on the Tray
fixing bracket (A) and (B) are positioned on the inside
before attaching them.
After installing the Tray fixing brackets, if you will be using
the Paper output tray at a 45-degree angle, go to step 4.
If you will be using it on a tabletop, go to step 5.
Screw B
Tray fixing
bracket (B)
Tray protection
tape
4. When fixing the Paper output tray at a 45-degree angle.
Use the two Screws A to fix the Paper output tray while
supporting it with your hands.
The output tray can be extended from the table and used
as a ramp.
* It is recommended that you use the output tray at a fixed
45-degree angle.
Screw A
ASF1-30 base
CE8000 base
Tray fixing
bracket (A)
Screw A
5. When using the Paper output tray on a tabletop.
The Output tray can be placed and used on a tabletop.
* The properties of the media and static electricity may
affect the media ejection.
In such cases, it is recommended to use it at a fixed
angle of 45 degrees.
Screw B
6. Attach the Media stopper.
The media size is listed on the Paper output tray, insert
the left and right protrusions on the Media stopper
according to the media size to be used into the notches on
the Paper output tray and fixed it with Screw A.
Media Stopper
Screw A
Align the tip of the Paper output tray with
the edge of the table.
A4/Letter
14"
A3
A3 Plus
