Setup Manual - GRAPHTEC ASF1-30 Setup Manual

SETUP MANUAL

This manual provides the setup procedure.
For details on each function, please refer to the instruction
manual (PDF).
The instruction manual (PDF) is available at:
https://www.graphteccorp.com/support/
What you need to prepare
Phillips screwdriver (No.2)
Checking the Accessories
Please check that all the accessories are included.
If you find any accessories are missing, please contact the
distributor from whom you purchased this product immediately.
<Parts included in the main unit package>
Connection cable
Extension tray
<Parts included in the paper output tray package>
CE8000 base
ASF1-30 base
Paper output tray
Tray fixing bracket (A)
Screw A
* In addition, various other information may be attached.
* Accessories may vary depending on the sales region.
For details, please contact the distributor from whom you purchased
this product.
1 pc. Cable cover
1 pc.
1 pc. SETUP MANUAL / Request for
firmware and software updates
1 pc. Base connecting parts
1 pc. Media Stopper
1 pc. Tray fixing bracket (B)
3 pcs. Screw B
Installing driver/software
The latest version of driver or software and installation
instructions are available at:
https://www.graphteccorp.com/support/
Please download it if necessary.
* Do not connect the computer to the ASF1-30 before
installing the Windows driver.
●
CE8000-40 firmware
Please update the CE8000-40 firmware to the latest
version before using the ASF1-30.
●
Windows driver
The Windows driver for CE8000-40 cannot be used.
When ASF1-30 is connected, the model name changes to
"CE8000-40+ASF1" and the Windows driver for
CE8000-40+ASF1 must be installed.
●
Graphtec Studio 2 (Windows/Mac)
●
Cutting Master 5 (Windows/Mac)
1 pc.

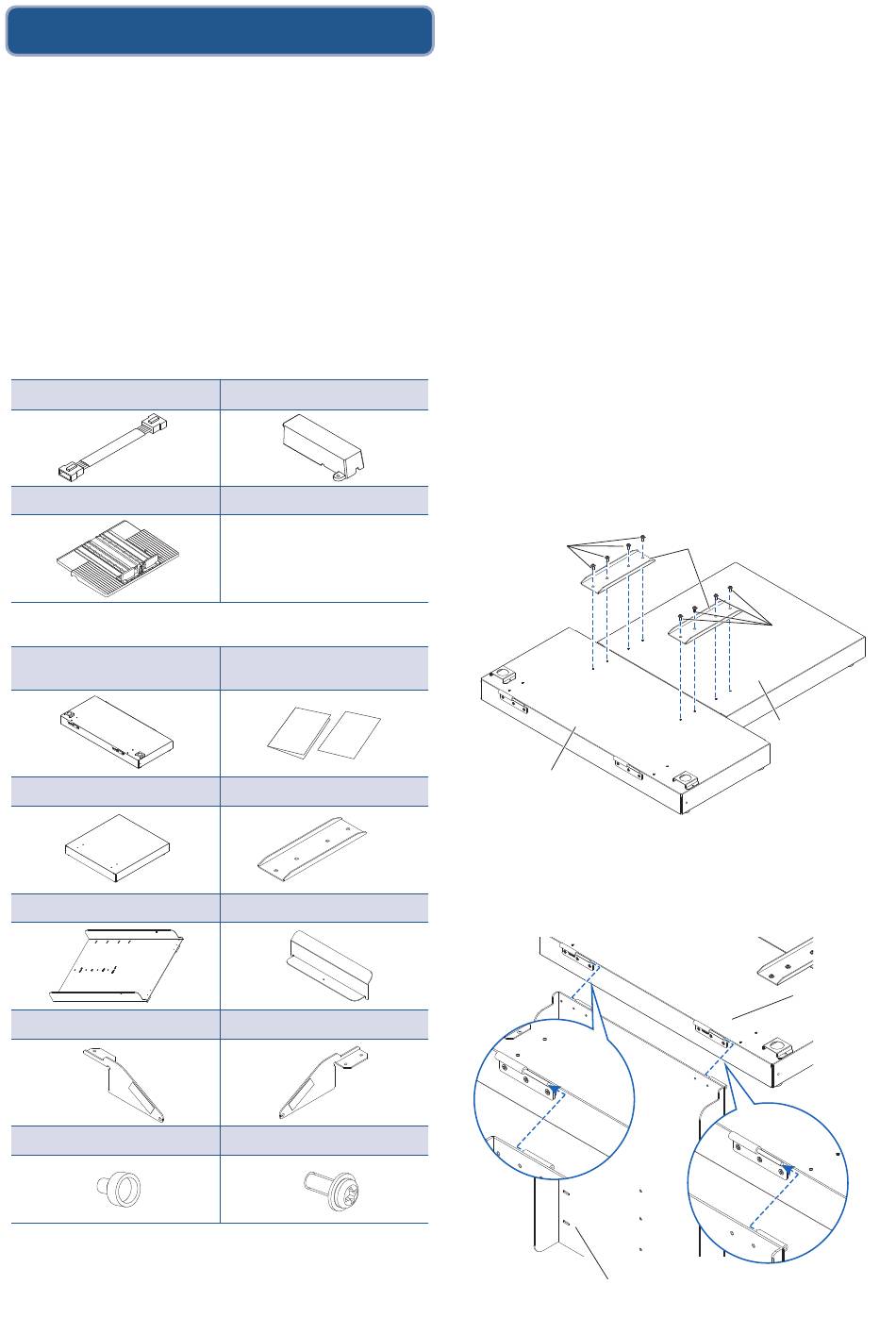

How to assemble the Paper output tray
1. Using a Phillips screwdriver, attach the CE8000 base to
the ASF1-30 base with the two Base connecting parts and
eight Screws B.
* Please prepare your own Phillips screwdriver.
Screw B
1 set
CE8000 base
2 pcs.
2. Insert the two hinges of the Paper output tray into the two
hinges of the CE8000 base.
1 pc. After inserting the hinges, hang the Paper output tray
down.
1 pc.
12 pcs.
Base connecting parts
Screw B
ASF1-30 base
Paper output tray
CE8000 base
