Wenger OnBoard Cargo Cart Assembly Instructions And Owner's Manual

Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual
Contents
Important User Information � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 2
Safety Precautions � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 3
General Operation � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 3
Before You Begin� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 4
Required Tools� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 4
Supplied Hardware � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 4
Visit the OnBoard Cargo Cart web page at wengercorp.com for more information.
Note: Please read and understand these instructions before proceeding�
Note: If you need additional information, contact Wenger Corporation using the information below�
©Wenger Corporation 2024
Wenger Corporation, 555 Park Drive, P�O� Box 448, Owatonna, Minnesota 55060-0448
Questions? Call�����USA: (800) 4WENGER (493-6437) • Worldwide: +1-507-455-4100 • wengercorp�com
Assembly Instructions and Owner's Manual
Parts List � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 4
Assembly � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 5
Operation � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 7
Maintenance � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 7
Replacement Parts � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 8
Printed in USA 2024-11

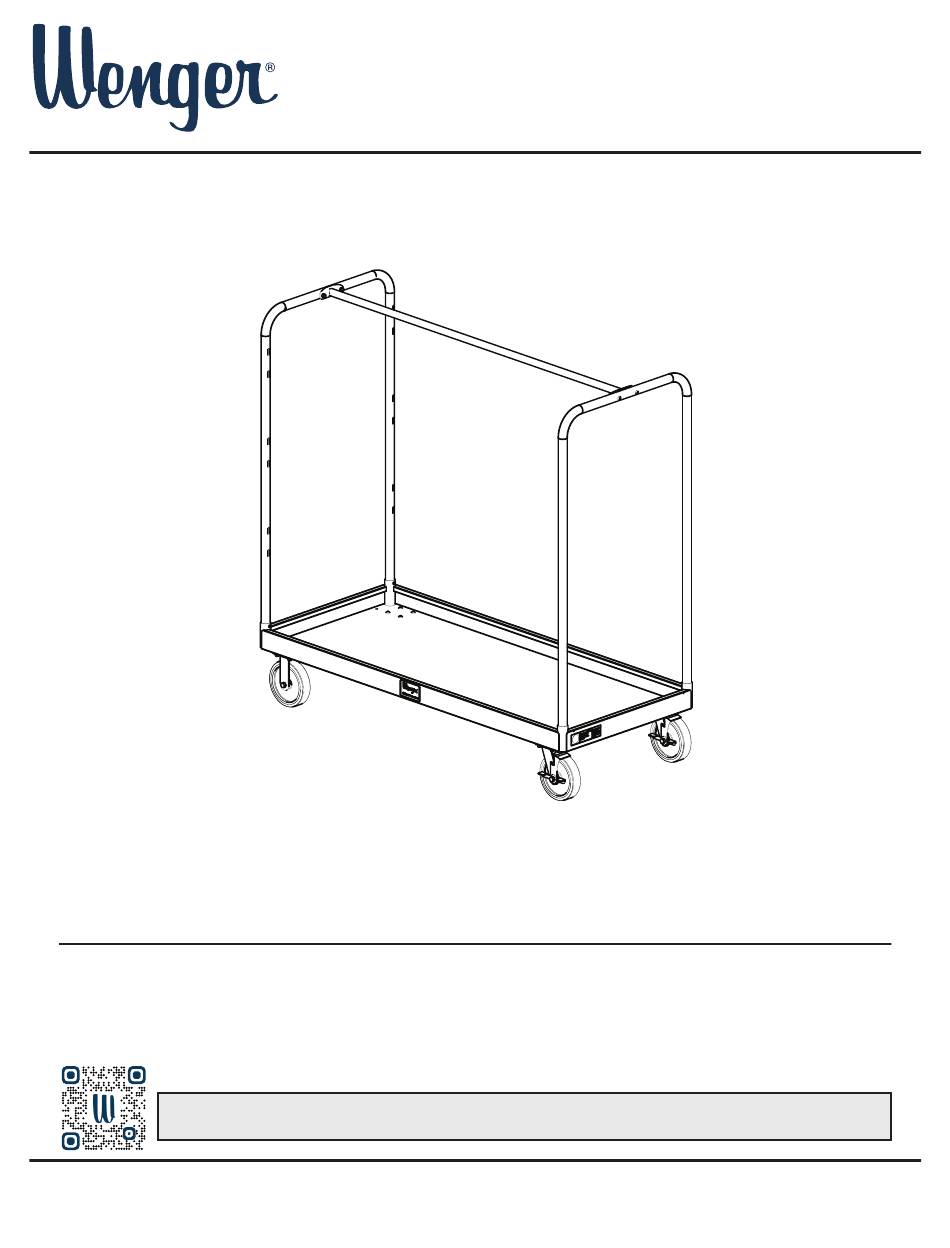

OnBoard
Cargo Cart
®
Part #210A224-04
