Wenger Diva Assembly Instructions Manual

Acoustical ceiling storage cart
Hide thumbs Also See for Diva:
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual
Contents
Important User Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Manufacturer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Intended Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Visit the Diva Acoustical Shell web page at wengercorp.com for detailed instructions and videos.
Note: Please read and understand these instructions before assembling or setting up.
Note: If you need additional information, contact Wenger Corporation using the information below.
©Wenger Corporation 2018
Wenger Corporation, 555 Park Drive, P.O. Box 448, Owatonna, Minnesota 55060-0448
Questions? Call.....USA: (800) 4WENGER (493-6437) • Worldwide: +1-507-455-4100 • wengercorp.com
Diva
®
Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Fastener Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Printed in USA 2018-06

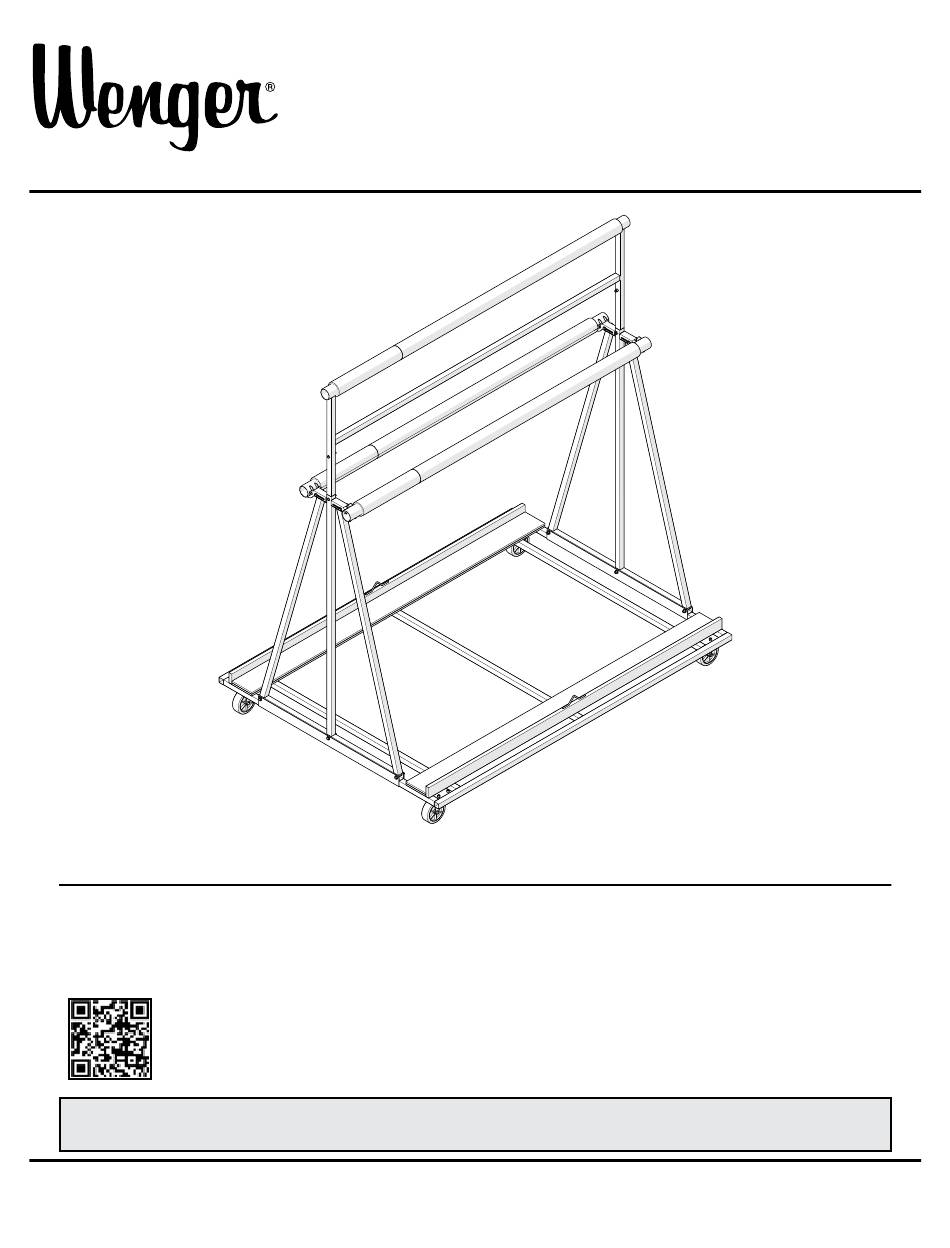

Assembly Instructions
Acoustical Ceiling
Storage Cart
Part #185K126-01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Diva and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Wenger Diva

Summary of Contents for Wenger Diva

  • Page 1: Table Of Contents

    Warranty ........2 Visit the Diva Acoustical Shell web page at wengercorp.com for detailed instructions and videos.

  • Page 2: Important User Information

    Wenger Corporation. Wenger Corporation does not assume any responsibility for any errors that may appear in these instructions. In no event will Wenger Corporation be liable for technical or editorial omissions made herein, nor for direct, indirect, special, incidental, or consequential damages resulting from the use or defect of these instructions.

  • Page 3: Safety Precautions

    Safety Precautions Throughout this manual you may find cautions and warnings which are defined as follows: • WARNING means that failure to follow the instruction may result in serious injury or death. • CAUTION means that failure to follow the instruction may result in serious injury or damage to property. Read all of these safety instructions before assembling or using the cabinets.

  • Page 4: Parts List

    Parts List Item Qty Description 3/8-16 x 2-1/4” Capscrew 10 3/8-16 Lock Nut 3/8-16 x 2-1/2” Capscrew 12 5/16 ID Flat Washer 1/4-14 x 1” Self-Drilling Screw Cart Base A-Frame Mast Adjustment Tube Mast Mid Support *Included in Hardware Pack...

  • Page 5: Assembly

    Assembly 1. At both ends of the Cart Base y, attach an A-Frame u using one 3/8-16 x 2-1/2” Capscrew e, two 5/16 ID Flat Washers r and one 3/8-16 Lock Nut w.
  • Page 6 Assembly (continued) 2. Attach both Mast Adjustment Tubes. a. Lower a Mast Adjustment Tube i into the top of both A-Frames. Note the orientation of the holes to avoid installing upside down. b. Depending on the size of the ceiling row section that will be stored, select the proper hole in the Mast Adjustment Tube as indicated below and secure it to the A-Frame using one 3/8-16 x 2-1/4”...
  • Page 7 Assembly (continued) 3. Lower the Mast o onto both Adjustment Tubes and attach both ends using one 3/8-16 x 2-1/4” Capscrew q and one 3/8-16 Lock Nut w.
  • Page 8 Assembly (continued) 4. Tighten all of the previosly installed fasteners. 5. Attach both Mid Supports. a. See Detail A. At each side of the A Frame, center both ends of a Mid Support 1) onto the Support Tube Brackets. b. Attach both ends of the Mid Support to the Support Tube Bracket using two 1/4-14 x 1”...
