CONTENTS
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Load Back Rails . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
To Store Risers on the Storage Cart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Load Risers onto the Cart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Load Fourth Steps onto the Cart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Replacement Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Note: Please take a few minutes to read this manual and to familiarize yourself with the
Tourmaster Storage Cart unique operating features. If you should need additional information
on your new Tourmaster Storage Cart, just write or phone.
©Wenger Corporation 2003
Wenger Corporation, 555 Park Drive, P.O. Box 448, Owatonna, Minnesota 55060-0448
Questions? Call.....USA: (800) 733-0393 • International (call collect): (507) 455-4100 • www.wengercorp.com

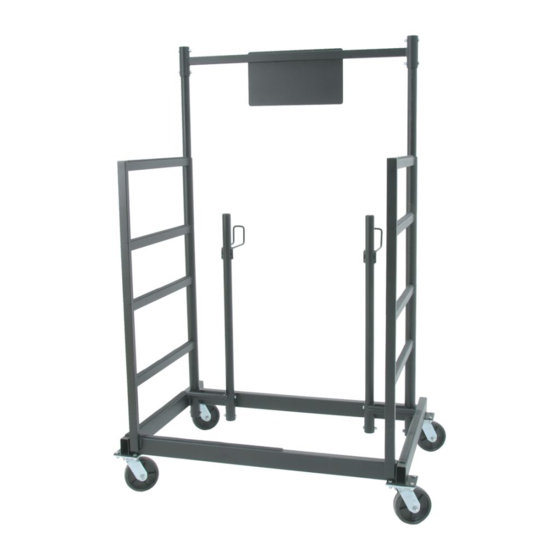

Tourmaster Storage Cart
Storage Cart
Printed in USA 03/03
Owner's Manual
Part #024F990-01

Advertisement

loading
Need help?

Need help?

Do you have a question about the Tourmaster Storage Cart and is the answer not in the manual?

Questions and answers

Related Manuals for Wenger Tourmaster Storage Cart

Summary of Contents for Wenger Tourmaster Storage Cart

  • Page 1: Table Of Contents

    Replacement Parts List ..............11 Note: Please take a few minutes to read this manual and to familiarize yourself with the Tourmaster Storage Cart unique operating features. If you should need additional information on your new Tourmaster Storage Cart, just write or phone.

  • Page 2: Warranty

    This is your sole remedy for breach of this warranty. Should you have a question or problem with any Wenger product, don’t hesitate to call, even if the product is past warranty. It’s important to us that all our customers be satisfied.

  • Page 3: Load Back Rails

    TO STORE RISERS ON THE STORAGE CART LOAD BACK RAILS Load up to four Back Rails onto a Storage Cart as follows. 1. Lift a Back Rail with the Positioning Wheels on the legs pointing upward and the legs next to the Cart (Horizontal Rail is away from the Cart).
  • Page 4 TO STORE RISERS ON THE STORAGE CART CONTINUED LOAD BACK RAILS CONTINUED 3. To load the second Back Rail, lift it with the Positioning Wheels on the legs pointing upward and the Back Rail Legs facing away from the Cart. 4.
  • Page 5 TO STORE RISERS ON THE STORAGE CART CONTINUED LOAD BACK RAILS CONTINUED 5. Place the third and fourth Back Rails onto the Cart with the Horizontal Rails touching as shown below. Horizontal Rails Storage Cart Cart loaded with tour Back Rails Vertical Legs Third Back Rail Second Back Rail...

  • Page 6: Load Risers Onto The Cart

    TO STORE RISERS ON THE STORAGE CART CONTINUED LOAD RISERS ONTO THE CART Load up to four Risers onto the Storage Cart as follows. 1. Begin opening the Swing Arms by pushing upward on the under side of the Swing Arm Horizontal Bar as close to the Swing Arm Post as possible.
  • Page 7 TO STORE RISERS ON THE STORAGE CART CONTINUED LOAD RISERS ONTO THE CART CONTINUED 3. With two people working together, place the first Riser onto the Cart. The Positioning Wheels will hang over the right end of the Cart Support Frame. Note: The 13-inch Swing Arm must be on the right side of the Cart.
  • Page 8 TO STORE RISERS ON THE STORAGE CART CONTINUED LOAD RISERS ONTO THE CART CONTINUED 5. With two people working together, place the second Riser onto the Cart with the positioning Wheels on the left end, opposite from the first Riser Positioning Wheels. Make sure that the Positioning Wheels hang outside of the Swing Arm.
  • Page 9 TO STORE RISERS ON THE STORAGE CART CONTINUED LOAD RISERS ONTO THE CART CONTINUED 7. With two people working together, place the third and fourth Risers onto the Cart (as in steps 2 to 6 above) with the Positioning Wheels alternating as shown below. Make sure that the Positioning Wheels hang outside of the Swing Arm.

  • Page 10: Load Fourth Steps Onto The Cart

    TO STORE RISERS ON THE STORAGE CART CONTINUED LOAD FOURTH STEPS ONTO THE CART 1. Place the first 4th-Step onto the top set of Swing Arms with the carpet side down and the Positioning Wheels facing outward (away from the Swing Arm Post). 2.

  • Page 11: Replacement Parts List

    REPLACEMENT PARTS LIST Storage Cart Item Description Hex Head Cap Screw, 3/8-16x2-1/2" Hex Head Cap Screw, 3/8-16x1" Hex Head Lock Nut, 3/8-16 Cross Bar Swing Arm Post Swing Arm, 13-inch Swing Arm, 10-inch Storage Cart Frame Caster Back Rail Support Post Safety Strap (not shown)
