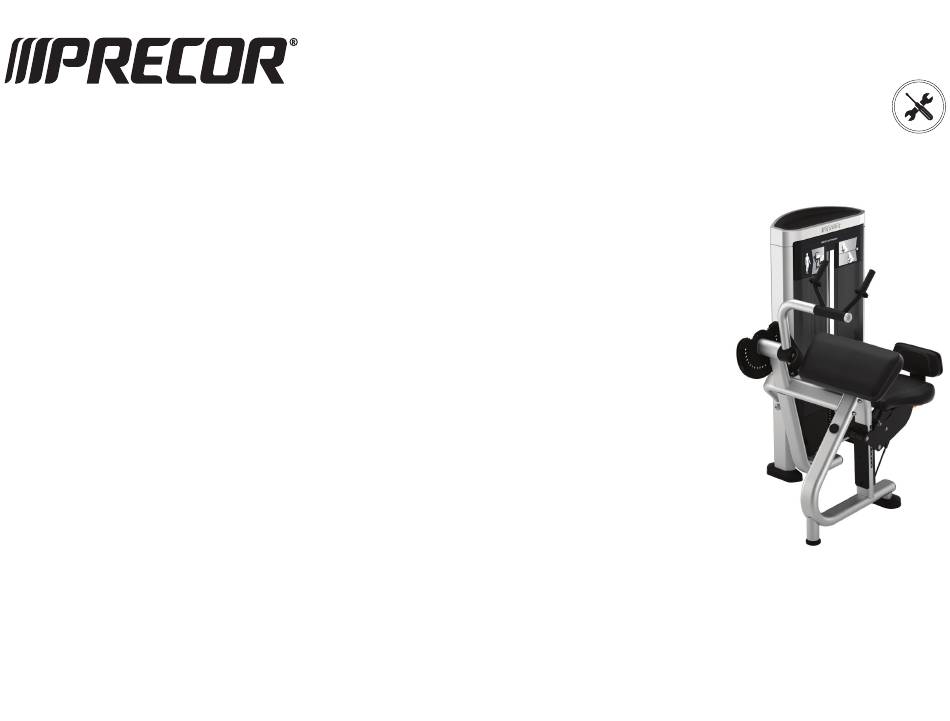

- Page 1 ENGLISH ENGLISH Resolute™ Strength Selectorized Line Triceps Extension RSL 208 Assembly Guide...
-
Page 2: Assembly Requirements
Assembly Requirements CAUTION Installation Requirements Required Tools Box cutter Rubber mallet Trademarks ©2019 Precor Inc. | Triceps Extension RSL 208 | Assembly Guide... -
Page 3: Parts List
Name Quantity Main frame Back pad Seat base frame Handlebars End cap Back plate Spacer Bumpers Top plate assembly Guide rods Kick plate Weight labels Top tray Seat pad ©2019 Precor Inc. | Triceps Extension RSL 208 | Assembly Guide... -
Page 4: Frame Assembly
M12 nylon lock nuts Align to last hole on left under pulley. Insert both guide rod fasteners from user side to align kick plate. Hand tighten only. step. ©2019 Precor Inc. | Triceps Extension RSL 208 | Assembly Guide... - Page 5 Gently rock the frame to align. Tighten all M12 fasteners to a torque of 55 ft-lb (75 N-m). Do not tighten the M10 screws installed in step 3 at this time. ©2019 Precor Inc. | Triceps Extension RSL 208 | Assembly Guide...
-
Page 6: Moving Parts
Turn and center handlebars on shaft and secure. Remove all arrow labels. Seat Assembly Image Hardware Instructions front holes. Secure the seat pad through the plate and frame. ©2019 Precor Inc. | Triceps Extension RSL 208 | Assembly Guide... -
Page 7: Route The Cable
Route the Cable Image Hardware Instructions arm cam and pulley before you start to route the cable. replace the cable retainer. Tighten to 50 ft-lb (67 N-m) of torque. ©2019 Precor Inc. | Triceps Extension RSL 208 | Assembly Guide... - Page 8 Finish the Weight Stack Tower Image Hardware Instructions step 3 of the Frame Assembly. guide rods bumpers top plate assembly user side. ©2019 Precor Inc. | Triceps Extension RSL 208 | Assembly Guide...
- Page 9 While the assistant is plate. Let the guide rods drop onto the bolts and fully tighten the bolts. Tighten M10 screws to 32 ft-lb (43 N-m) of torque. ©2019 Precor Inc. | Triceps Extension RSL 208 | Assembly Guide...
- Page 10 At least six turns of the threads on the cable bolt extend into the 1.61 inch (41mm). should be no more than Tighten the locking bolt against the select stem to 50 ft-lb (81 N-m) of torque. ©2019 Precor Inc. | Triceps Extension RSL 208 | Assembly Guide...
- Page 11 Repeat for the front middle shrouds Install the upper rear and front shrouds . Ensure to hook them Recommended bolt torque is 25 ft-lb (34 N-m). Securely snap top tray into place. ©2019 Precor Inc. | Triceps Extension RSL 208 | Assembly Guide...
