Planning the machine room
When planning the machine room, it is important to ensure there is enough space around the plant
to perform repairs and maintenance tasks.

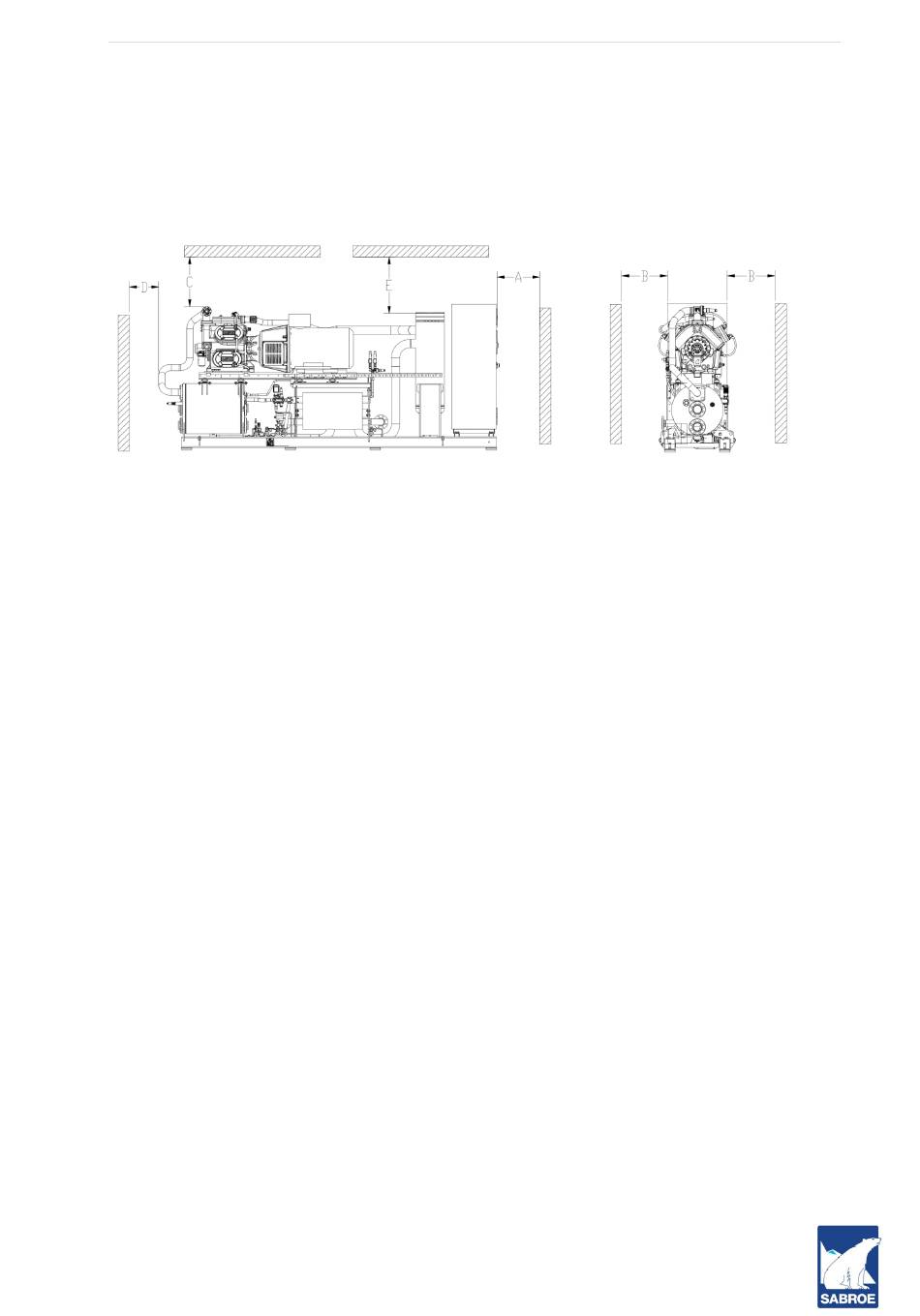

The following figure shows the recommended required space for service.
Fig. 3: Spacing requiring designations
A. For operation and opening of electric panel:
B. For withdrawing suction filter and pistons:
C. For withdrawing pistons:
D. Withdrawing of crankshaft is depending on compressor size:
-
-
-
E. Withdrawing of coalescer is depending on oil separator model:
-
-
-
-
The foundation must have the necessary bearing strength and be as plane as possible.
Installation guide - ChillPAC and HeatPAC
006616 en 2024.09
24-26-28
104-106-108-704-706-708
112-116-712-716
OVUR 6015
OVUR 2108-3209
OVUR 4113
OVUR 5014-6014
1,100 mm
200 mm
200 mm
400 mm
500 mm
1,000 mm
525 mm
600 mm
650 mm
1,000 mm
