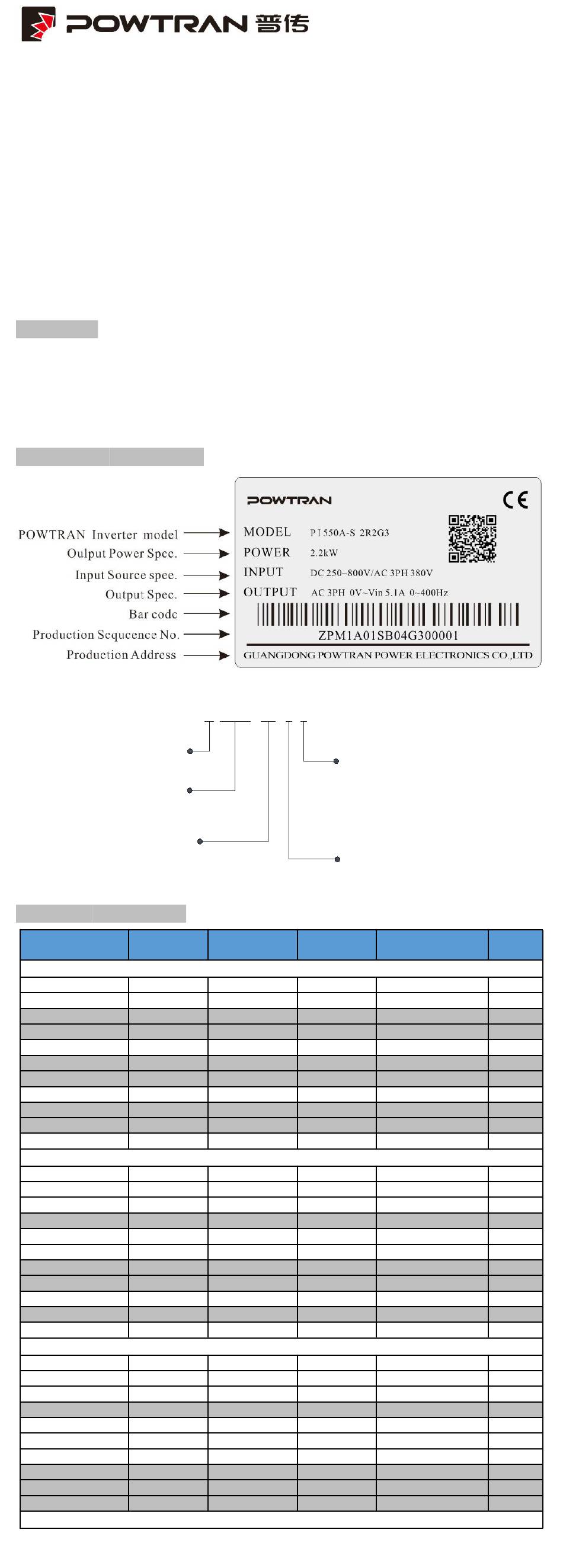

English Manual 1. Foreword Thank you for choosing PI550A-S series basic special solar inverter for water pump. The diagram of operating manual ,Maybe slightly different from the product for convenience of explanation, Due to product upgrades, they may be slightly different also. Please refer to the actual product.
Frequency unit Current unit Voltage unit Speed unit HzAV Percentage 5.2 Description of operation panel keys Sign Name Function Parameter * Enter into the modified status of main menu Setting /Esc * Esc from functional parameter modification * Esc submenu or functional menu to status menu * Choose displayed parameter circularly under running or stop Shift Key interface;...
Please check the wiring correctly after completion, and power on after confirmation. 8.Brief table of parameters In PI550A-S series inverters, some parameters are "reserved by the manufacturer", and their serial Numbers are not listed in the function parameter table, which results in the disconnection of some parameter serial Numbers in the table.
Page 5
Code Parameter name Setting range Company d0.00 Running frequency Actual output frequency 0.01Hz d0.01 Set frequency Actual set frequency 0.01Hz d0.02 DC bus voltage Detected value for DC bus voltage 0.1V d0.03 output voltage Actual output voltage d0.04 output current Effective value for Actual motor current 0.01A d0.05...
Page 6
F1 group Input terminals group Change Factory Code Parameter name Setting range Change setting F1.00 DI1 terminal function selection ★ F1.01 DI2 terminal function selection ★ ★ F1.02 DI3 terminal function selection 0~51 ★ F1.03 DI4 terminal function selection F1.04 DI5 terminal function selection ★...
Page 7
Frequency level detection Please refer to the function code F7.23, F7.24's instructions. FDT1 output Frequency arrival Please refer to the description of function code F7.25. Zero-speed running (no Inverter operation and the output frequency is 0, output ON output when shutdown) signal.When the drive is shut down, the signal is OFF.
Page 8
F3.09 DC waiting time 0.0s~100.0s 0.0s ☆ F3.10 Stop braking current 0%~100% ☆ F3.11 Stop braking current 0.0s~100.0s 0.0s ☆ F4 group V/F control parameter group Factory Code Parameter name Setting range Change setting 0 Linear V/F 1 Multi-point V/F 2 Square V/F 3 1.2th power V/F F4.00...
Page 9
running commands in order: F7 group Auxiliary Functional Parameters Group Factory Code Parameter name Setting range Change setting ☆ F7.00 Jog running frequency 0.00Hz~F0.19(Maximum frequency) 6.00Hz F7.01 Jog acceleration time 0.0s~6500.0s 5.0s ☆ F7.02 Jog deceleration time 0.0s~6500.0s 5.0s ☆ F7.03 Jog priority 0:Invalid...
Page 10
AI1 input voltage protection upper F7.51 F7.50~10.00V 6.8V ☆ limit F8 group Group - Fault and protection Factory Chan Code Parameter name Setting range setting F8.00 Overcurrent stall gain 0~100 ☆ F8.01 Overcurrent stall protection current 100%~200% ☆ 0: Invalid 1: Enable ☆...
Page 11
E0 group Wobbulate, fixed-length and counting Factory Code Parameter name Setting range Change setting 0: Control mode invalid; E0.00 Solar operation mode selection 1:CVT Mode; ☆ 2: MPPT Mode 0: PV invalid Photovoltaic effect does not work; when normal operation model, need to set E0.00=0. 1: CVT mode Bus voltage is constant as a given value, F0.03 is set to 8, photovoltaic mode, bus voltageis given as E0.01, feedback the current bus voltage.
Page 12
E1.25 3 stage ac/deceleration time selection Same as E1.19 ☆ E1.26 4 stage running time T4 0.0s(h)~6500.0s(h) 0.0s(h) ☆ E1.27 4 stage ac/deceleration time selection Same as E1.19 ☆ E1.28 5 stage running time T5 0.0s(h)~6500.0s(h) 0.0s(h) ☆ ☆ E1.29 5 stage ac/deceleration time selection Same as E1.19 ☆...
Page 13
Units digit: integral separation 0: Invalid 1: Valid E2.22 PID integral properties Tens digit: whether stop integration ☆ when output reaches limit 0:Continue 1:Stop 0.0%~100.0% ☆ E2.23 PID initial value 0.0% 0.00s~360.00s E2.24 PID initial value hold time 0.00s ☆ b0 group Motor parameters Group Factory Code...
time arrives; 27: User-defined Fault 1; 28: User-defined fault 2; 29: Power-on time arrives; 31:The PID feedback is lost during operation. 40:Fast current limiting timeout; 51:Initial position error; COF: Communication failure y1.03 Frequency of the third(at last) fault ● y1.04 Current of the third(at last) fault ●...
Page 15
No. Fault ID Failure type Possible causes Solutions 3.The deceleration time is too short install braking resistor. 4.Didn't install braking unit and 3.Increase the deceleration braking resistor time 4.Install braking unit and brake resistor 1.Cancel the external force or 1.There is external force to drag the Constant speed install braking resistor.
Page 16
No. Fault ID Failure type Possible causes Solutions parameters is too large the rated current is set to too small. 1.Detection of keyboard 1.Keyboard interface control board interface, control board interface; interface is abnorma. 2.Keyboard or crystal connector; Communication 2.Detect keyboard, crystal 3.Control board or keyboard failure joints are abnormal.
