Installation Instructions
REV 2 02/01/23
Hardware
Torque Aluminum
M6 Bolt
3 ft-lbs.
M8 Bolt
7 ft-lbs.
M10 Bolt
16 ft-lbs.
M12 Bolt
28 ft-lbs.
Attention: Please make sure that you have the latest instructions
from Romik.com
Torque Steel to Steel
14 ft-lbs.
35 ft-lbs.
64 ft-lbs.
112 ft-lbs.
Part No.
2333 / 5419

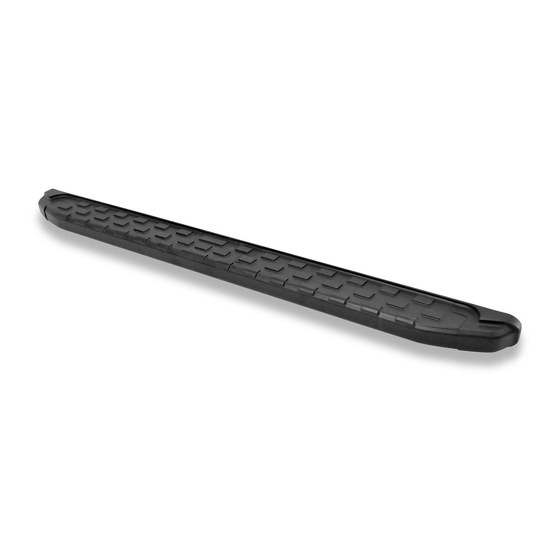

Product: Running Boards
Application:
Hyundai Santa Fe 2021 - Present
Kia Sorento 2021 - Present
Level of Difficulty: 1
Installation Time: 90 Min
ATTENTION: Use correct torque settings to avoid
damaging the running boards and or mounting
brackets. Failure to do so will void your warranty. If
you have any questions, please contact our technical
team at 1-866-717-6645
QR Scan
2
3 4 5
Advertisement
Related Manuals for Romik REC-B
Summary of Contents for Romik REC-B
- Page 1 Failure to do so will void your warranty. If M10 Bolt 16 ft-lbs. 64 ft-lbs. you have any questions, please contact our technical M12 Bolt 28 ft-lbs. 112 ft-lbs. team at 1-866-717-6645 Attention: Please make sure that you have the latest instructions from Romik.com QR Scan...
- Page 3 Important Install Tip: When installing Romik HTC inserts follow the sequence below. Make sure the HTC is seated correctly and do not use power tools as this will only spin the insert and possibly damage it. Test by tugging on it before installing braket.
- Page 4 Installation Instructions 2333 / 5419 Bracket Kit Step 4: Attach the extra support to the main bracket Figure 7. Do not fully tighten Figure 7 Step 5: Drop the felt panel by removing only the outer hardware do not discard. Note for installation purposes we removed the panel but it is not necessary.
- Page 5 Step 7: Proceed to last page of this manual for running board install instructions and torque values. For Technicall support please call our team at 1-866-717-6645 and one of our experts will assist you with this installation Thank you for choosing Romik.
- Page 6 2X per year. Wash often with mild soap and make sure to remove all soap residue. Many car automatic carwashes use a strong soap, make sure to use enough water to remove all residue. For video instructions on how to clean your Romik products please click here https://romik.com/cleaning...
