Installation Instructions
REV 3 01/08/2020
Hardware
M6 Bolt
M8 Bolt
M10 Bolt
M12 Bolt
Torque Specifications
3 ft-lbs.
7 ft-lbs.
16 ft-lbs.
28 ft-lbs.
ATTENTION: Use correct torque settings to avoid
damaging the running boards and or mounting
brackets. Failure to do so will void your warranty.
If you have any questions please contact our technical
team at 1-866-717-6645
Part No.
1214

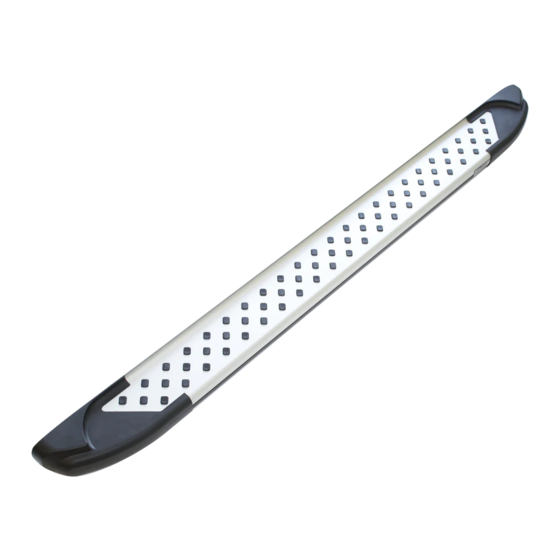

Product: Running Boards
Application:
BMW X5
2014 - 2018
Level of Difficulty:1 2 3
Installation Time: 120 Min
4
5
Advertisement
Table of Contents
Related Manuals for Romik RAL-S 62804418
Summary of Contents for Romik RAL-S 62804418
- Page 1 Part No. 1214 Product: Running Boards Application: BMW X5 Installation Instructions 2014 - 2018 Level of Difficulty:1 2 3 Installation Time: 120 Min REV 3 01/08/2020 Hardware Torque Specifications ATTENTION: Use correct torque settings to avoid M6 Bolt 3 ft-lbs. damaging the running boards and or mounting M8 Bolt 7 ft-lbs.
- Page 2 Installation Instructions 1214 Bracket Video Installation Instruction: Step 1: Remove plastic panels under vehicle, do not discard hardware as it will be re-used. Step 2: Locate front passenger mounting locations and hardware as per 1 page of this installation manual Step 3: Remove factory rubber plug if equipped and install HTC 262 Figure 1.
- Page 3 Installation Instructions 1214 Bracket Step 6: Install extra support bracket as shown on Figure 4 Do not tighten. Attach Extra support bracket to main bracket with supplied M10 hardware. Do not tighten Figure 4 Step 7: Locate rear bracket location and hardware Figure 5. Remove rubber plug and install HTC 262 HTC 262 Figure 5 Step 8: Install rear bracket as shown on figure 6 once installed push bracket up so that bottom portion is...
- Page 4 Step 9: Proceed to last page of this manual for running board install instructions and torque values Step 10: After securing running boards proceed to trim plastic panels as needed. For Technical support please call our team at 1-866-717-6645 and one of our experts will assist you with this installation Thank you for choosing Romik.
- Page 5 Running Board Installation Instructions 1) Flip your Romik running boards onto a flat surface, make sure to place the running boards on a towel or cardboard in order to protect the surface Figure 1. 2) Loosen the M8 bolts on back of your running boards Figure 2. Depending on your model there Will be either 6 or 8 bolts installed per side.
