Summary of Contents for CTC Union IEXT101-PH

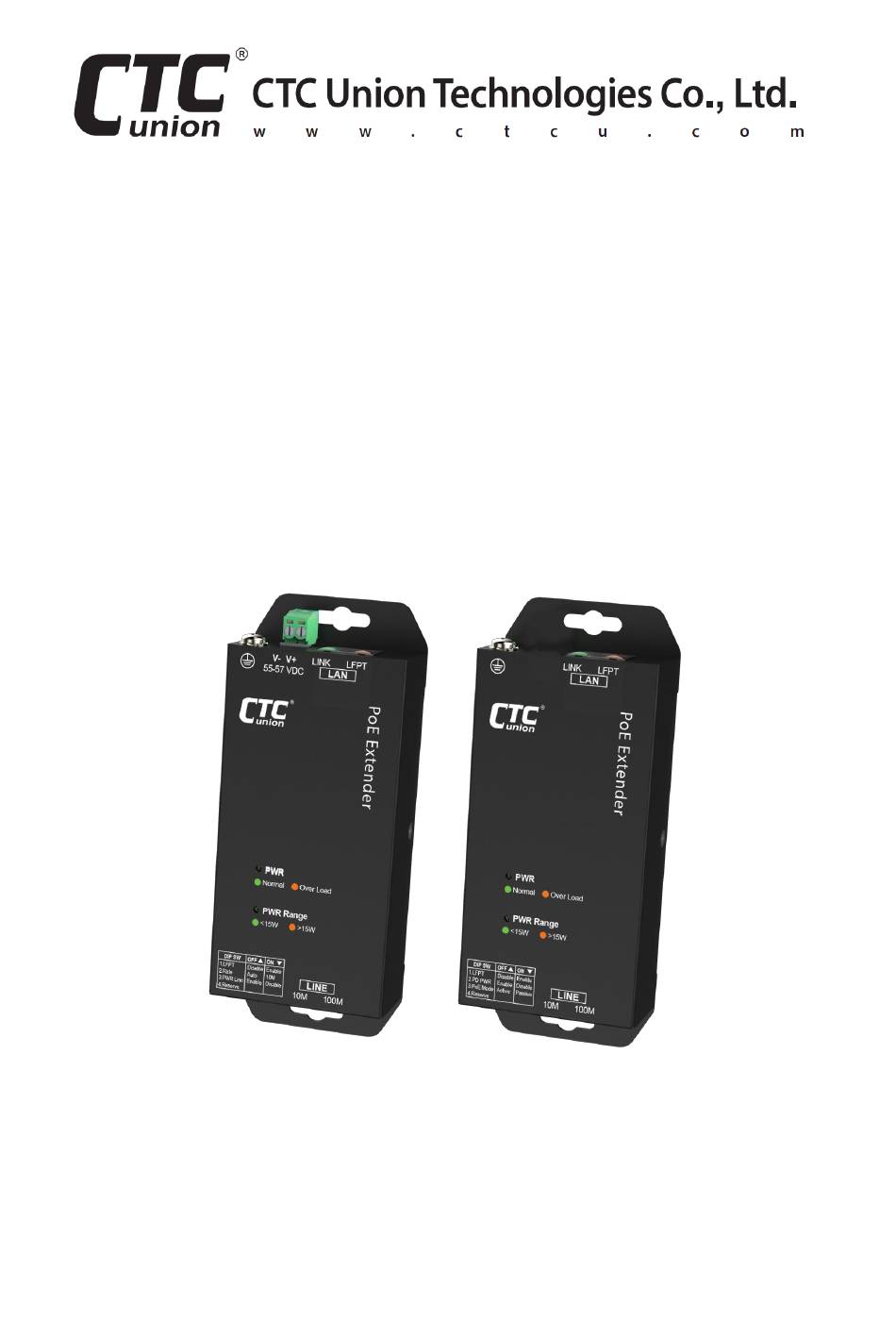

- Page 1 User Guide IEXT101-PH Long Reach Ethernet & PoE Extender sales@ctcu.com...
- Page 2 8F, No. 60, Zhouzi St., Neihu, Taipei 114, Taiwan T +886-2-26591021 F +886-2-26590237 E sales@ctcu.com H www.ctcu.com 2022 CTC Union Technologies Co., LTD. All trademarks are the property of their respective owners. Technical information in this document is subject to change without notice.
-
Page 3: Table Of Contents
RJ-45 E ................9 THERNET INOUTS RJ-45 E & P ..............9 THERNET SSIGNMENTS DIP Switch (IEXT101-PH-L) ............10 DIP Switch (IEXT101-PH-R) ............11 Recommended Power & Ground Wiring Scheme ....12 DC P ..................12 OWER ONNECTION .................. 13 ARTH... -
Page 4: Introduction
Introduction IEXT101-PH-L (Local Unit) & IEXT101-PH-R (Remote Unit) are a pair of Industrial Grade LAN extenders which are designed to extend power (IEEE 802.3at) and data over 100 meters. Traditionally, standard Ethernet supports Ethernet transmission distance up to 100 meters. -
Page 5: Specifications
The LINE speed between IEXT101-PH-L & IEXT101-PH-R pair will be 10M or 100M depending on extension length and DIP Switch settings The LAN speed of IEXT101-PH-R is same as LINE speed (extension port) Power Supply (For IEXT101-PH-L Only) 55~57VDC power inputs ... -
Page 6: Certifications
EN61000-4-8 (PFMF, Magnetic Field) Field Strength: 300A/m, Criteria A Safety: EN62368-1 4KV Surge Protection: For PoE & UTP port Shock: IEC 60068-2-27 Freefall: IEC 60068-2-31 Vibration: IEC 60068-2-6 MTBF (MIL-HDBK-217) IEXT101-PH-L: 1,561,636 Hours IEXT101-PH-R: 1,591,281 Hours ... -
Page 7: Panels
Panels Figure 1. Top Panel of IEXT101-PH-L Figure 2.Top Panel of IEXT101-PH-R Figure 4. Front Panel Figure 3. Bottom Panel Description Description LAN RJ-45 connector Line speed is in 10Mbps. Power input connectors Line speed is in 100Mbps. (For IEXT101-PH-L) -
Page 8: Extension Distance Vs. Link Speed / Poe Power Budget
Extension Distance vs. Link Speed / PoE Power Budget Cat. 5e UTP Cable Link PoE Power Budget Extension Distance (Maximum Watt) Speed (Meters) (Mbps) 4-Pair UTP 2-Pair UTP 31.4 29.6 22.4 27.6 15.2 24.7 12.2 20.3 17.2 13.2 Cat. 6 UTP Cable ... -
Page 9: Connectors
Ethernet switch, while the connector labeled LINE will connect to IEXT101-PH-R LINE side for distance extension. The connector of IEXT101-PH-R labeled LAN will connect to PD devices such as IP Camera, Access Point, IP Phone, Digital Signage or any other PoE powered devices. -
Page 10: Dip Switch (Iext101-Ph-L)
DIP Switch (IEXT101-PH-L) DIP NO. DIP 1 DIP 2 DIP 3 DIP 4 Position LFPT Rate PWR Line Reserved LFPT Off Auto Enable LFPT On Disable DIP 1 OFF: Disable LFPT function. ON: LFPT function is enabled. When the remote device is link down, the link of the local device will be forced down. -
Page 11: Dip Switch (Iext101-Ph-R)
DIP Switch (IEXT101-PH-R) DIP NO. DIP 1 DIP 2 DIP 3 DIP 4 Position LFPT PD PWR PoE Mode Reserved LFPT Off Enable Active LFPT On Disable Passive DIP 1 OFF: Disable LFPT function. ON: LFPT function is enabled. When the remote device is link down, the link of the local device will be forced down. -
Page 12: Recommended Power & Ground Wiring Scheme
Recommended Power & Ground Wiring Scheme DC Power Connection IEXT101-PH-L extenders are powered up by an external power supply (55VDC~57VDC). To connect to the power supply, insert V+ and V- wire into power contacts. Then, tighten the wire-clamp screws to prevent power wires from loosening. -
Page 13: Earth Ground Connection
Earth Ground Connection An earth ground connector is provided on the top panel with an earth ground sign next to it. Grounding the device properly can help to release leakage of electricity to the earth safely so as to reduce unexpected influences from electromagnetic interference (EMI) and electromagnetic susceptibility (EMS). -
Page 14: Led Indicators
Power is on. Green No Power. If the following PoE overloading conditions occur, the PWR LED indicator will be lit in Amber. IEXT101-PH-L: PoE output >30W or Amber PoE output errors IEXT101-PH-R: PoE output >29W or PoE output errors Normal conditions. -
Page 15: Wall-Mounting Installation
Wall-Mounting Installation Each Ethernet extender comes with a pair of wall-mounting hardware brackets. When installing the wall-mounting brackets, be sure to correctly align the screw holes. Use the screws provided in the wall- mounting kit to securely fasten the brackets. Figure 10. -
Page 16: Application
Application Figure 12. Extender Application Diagram... - Page 17 Manual Release Date Revision Version 2022/6/10 - Preliminary version...
