GBA Z 0685 1 E
Instructions for Use

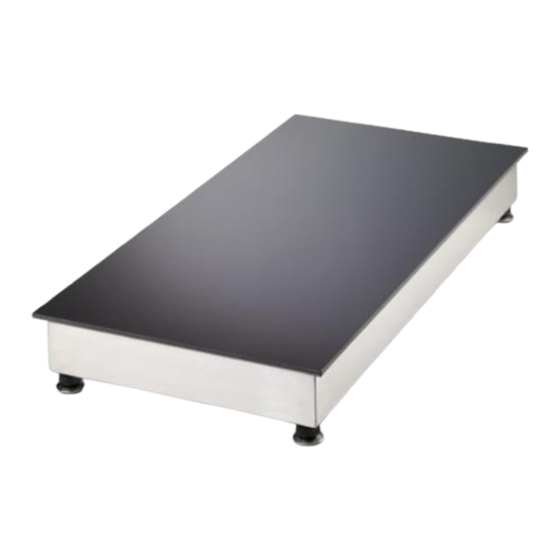

Induction tabletop heat retention unit
Hold-Line Compactmodul
Model-No.
HO 1500
HO 1500 white
HO 1500 black
Scholl Apparatebau GmbH & Co. KG
Zinhainer Weg 4
D–56470 Bad Marienberg / Germany
Phone
+0049 (0) 2661 – 9868-10
Fax
+0049 (0) 2661 – 9868-38 (Service)
Internet
www.scholl-gastro.de
E-mail
info@scholl-gastro.de
BA
Last revised 11-2016
Art. No.
Z 0685
Z 0686
Z 0687
Page 1 of 27
November 10, 2016
Rev. 1
Advertisement
Table of Contents
Related Manuals for Scholl HO 1500
Summary of Contents for Scholl HO 1500

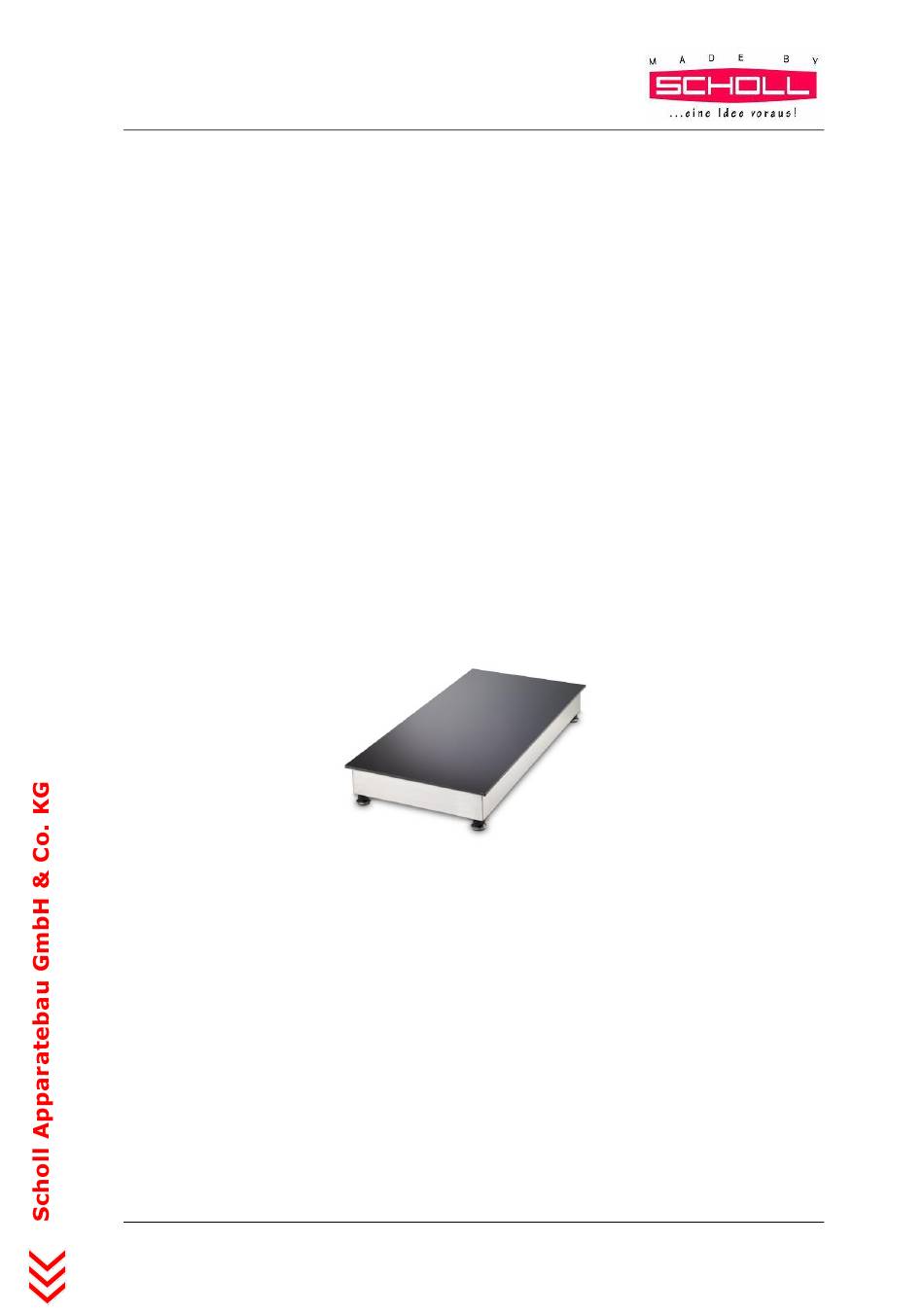

- Page 1 HO 1500 Z 0685 HO 1500 white Z 0686 HO 1500 black Z 0687 Scholl Apparatebau GmbH & Co. KG Zinhainer Weg 4 D–56470 Bad Marienberg / Germany Phone +0049 (0) 2661 – 9868-10 +0049 (0) 2661 – 9868-38 (Service) Internet www.scholl-gastro.de...
-
Page 2: Table Of Contents
GBA Z 0685 1 E ABLE OF CONTENTS Table of contents ............................... 2 Preface ................................4 General remarks ............................5 Description of danger signs ......................5 Purpose ............................6 Description of product..........................7 Scope of supply ..........................7 Product ............................. 7 RTCSmp Hold-Line Compactmodul unit at a glance................. - Page 3 GBA Z 0685 1 E Unauthorized reconstruction and use of spare parts ..............16 Pan detection ..........................16 Control of the heating area ......................16 Out of operation ............................17 Fault finding/Rectification ........................18 Fault finding with error code ......................19 Fault finding without error code ....................
-
Page 4: Preface
REFACE Congratulations! In purchasing this new SCHOLL appliance you have chosen a product which meets highest technical stand- ards while providing outstanding convenience in practical use. This appliance has been designed with minimal energy consumption in mind. Used responsibly, it will serve you well in an ecologically sound manner. -
Page 5: General Remarks
GBA Z 0685 1 E ENERAL REMARKS The following instructions for use contain information which is fundamentally important and must be taken into account during assembly, operation and maintenance. It must therefore be read carefully before instal- lation and operation by the responsible specialist staff and the operator(s). It must always be available for consultation at the place of operation. -
Page 6: Purpose
GBA Z 0685 1 E URPOSE The induction unit RTCSmp Hold-Line Compactmodul are specially suitable as built-in unit in closed counters and for keep the meal warm. The warm holding process with the RTCSmp unit must be carried out with recommended types and sizes of pans and bacs. -
Page 7: Description Of Product
GBA Z 0685 1 E ESCRIPTION OF PRODUCT COPE OF SUPPLY The unit is delivered completely and in working order. RODUCT The induction unit is self-contained in it’s own housing and is made from stainless steel. Built-in a robust method of construction, compact and powerful with the revolutionary RTCSmp technology. A variable tem- perature regulation permitted an efficient keep food warm. -
Page 8: Rtcsmp Hold-Line Compactmodul Unit At A Glance
OMPACTMODUL UNIT AT A GLANCE Before carrying out function checks, the operator must know how to operate the unit. HO 1500 Freestanding Temperature rotary knob The temperature setting from 50°C to 100°C is carried out via rotary knob under the ground sheet. -
Page 9: Technical Data
Dimensions Ceran plate HO 1500 800 x 400 x 114 mm 800 x 400 mm HO 1500 white 800 x 400 x 114 mm 800 x 400 mm HO 1500 black 800 x 400 x 114 mm 800 x 400 mm... -
Page 10: Installation
GBA Z 0685 1 E NSTALLATION EQUIREMENTS OF INSTALLATION This heat-retention unit has to be set up on an even place like a table. Air inlet and air outlet may not be obstructed, the place must be able to withstand a loading of 50 kg. The temperature rotary knob on the ground sheet must be easily accessible. -
Page 11: Technical Drawing
GBA Z 0685 1 E ECHNICAL DRAWING 3.3.1 D RTCS 1500 C RAWING OMPACTMODUL Page 11 of 27 November 10, 2016 Last revised 11-2016 Rev. 1... -
Page 12: Electrical Installation
GBA Z 0685 1 E LECTRICAL INSTALLATION The induction unit must always be set up on a clean and even surface (table, base, etc.) at it’s designated site. The unit stands on non-slip rubber pads and is not permanently installed. It must be set up in a way that it cannot fall down or move in an uneven position. -
Page 13: Operation Test
GBA Z 0685 1 E PERATION TEST Remove all objects from the glass surface, verify if this area is neither cracked nor broken. Do not use it when the glass surface is cracked or broken, immediately switch off and disconnect the unit from the out- let. -
Page 14: Operation
GBA Z 0685 1 E PERATION RETENTION PROCESS This induction unit „RTCSmp Hold-Line Compactmodul“ is immediately ready for use. The temperature level is chosen by turning the rotary knob under the ground sheet and the adjusted temperature set point is shown constantly. -
Page 15: Safety Instructions
GBA Z 0685 1 E AFETY NSTRUCTIONS AFETY CONSCIOUS WORK The safety information contained in these instructions for use, the existing national regulation for the pre- vention of accidents as well as any internal working, operating and safety regulation stipulated by the oper- ator must be observed. -
Page 16: Risk In The Event Of Non-Observance Of The Safety Information
GBA Z 0685 1 E ISK IN THE EVENT OF NON OBSERVANCE OF THE SAFETY INFORMATION Danger for persons, for the environment and for the unit can result of non-observance of the safety infor- mation. Certain risks may be associated with non-observance of precautions, including: ... -
Page 17: Out Of Operation
GBA Z 0685 1 E UT OF OPERATION If the equipment is not in use, make sure that the temperature rotary knob is in the „OFF“ position. If you do not use the induction unit for a longer period (several days) unplug the unit. Make sure that no liquid can enter into the unit and do not clean the unit with a jet of water. -
Page 18: Fault Finding/Rectification
GBA Z 0685 1 E AULT FINDING ECTIFICATION The unit may only be opened by authorized service personnel. Do not open the unit! CAUTION Dangerous electric voltage inside! Stop any actions if the heating area (glass surface) is cracked or broken, the induction unit must be switched off and disconnected from the electric supply. -
Page 19: Fault Finding With Error Code
GBA Z 0685 1 E AULT FINDING WITH ERROR CODE Error-code Possible cause Action to take Overheated heat sink Let unit cool down Check air filter and air flow Air-cooling system obstructed Verify that air inlet and air outlet are not obstructed with objects Clean air filter Overheated heating zone... -
Page 20: Fault Finding Without Error Code
GBA Z 0685 1 E AULT FINDING WITHOUT ERROR CODE Fault Possible Cause Action to take No heating No mains supply Check the electrical supply (cable Indicator operation is OFF plugged onto the wall socket) (dark) Check preliminary fuses Temperature rotary knob is in OFF- Turn temperature rotary knob ON position Unit is defective... - Page 21 GBA Z 0685 1 E To verify, if the pan or bac is suitable, use a permanent magnet and find out if it sticks on the bottom of the pan or bac. If not, your pan or bac is not suitable for induction use. Choose a pan or bac which is rec- ommended for induction use.
-
Page 22: Cleaning
GBA Z 0685 1 E LEANING List with common types of soiling and recommendations how to treat them: Type of soiling Treatment Slight soiling, no burned residues Wipe with a moist cloth (scotch), without cleaning agent Fatty spots Polychrom ... -
Page 23: Cleaning The Grease Filter
GBA Z 0685 1 E LEANING THE GREASE FILTER Please note that this induction unit is equipped with a removable grease filter to prevent grease ladden air from entering the unit. This grease filter is located at the bottom on the front of the unit and is easily re- moved for cleaning from the operator’s side. -
Page 24: Support
GBA Z 0685 1 E UPPORT A good maintenance of the Induction unit requires a regular cleaning, care and servicing. The operator has to ensure, that all components relevant for safety are in perfect working order at all times. The Induction unit has to be examined at least once a year by an authorized technician. Do not open the induction unit! CAUTION Dangerous electric voltage inside! -
Page 25: Waste Disposal Concept
GBA Z 0685 1 E ASTE DISPOSAL CONCEPT When the life cycle of the induction unit ends, make sure that you safely dispose it. 11.1 A VOID ABUSE The induction unit may not be used by any person not having the appropriate qualifications. Avoid that the unit, provided for disposal, can be brought into operation again. -
Page 26: Warranty And Service
GBA Z 0685 1 E ARRANTY AND SERVICE 12.1 W ARRANTY CONDITIONS The manufacturer accepts no liability or warranty in the following cases: failure to observe notes and instructions given in the Instructions for Use; use of the product in a manner not conforming to its intended use; ... -
Page 27: Service Address
7:00 a.m. till 4:00 p.m. Fridays from 7:00 a.m. till 12:15 p.m. Outside these office hours please communicate your requests per e-mail or telefax. Scholl Apparatebau GmbH & Co. KG Zinhainer Weg 4 D-56470 Bad Marienberg / Germany Phone...
