GBA Z 0671 2 E ABLE OF CONTENTS Table of contents ............................... 2 Preface ................................4 General remarks ............................5 Description of danger signs ......................5 Purpose of induction units ....................... 6 1.2.1 Generall information on GN Container ..................6 Description of products ..........................
Page 3
GBA Z 0671 2 E Unauthorized reconstruction and use of spare parts ..............18 Improper operating methods ......................18 Pan detection ..........................18 Power regulation..........................18 Out of operation ............................19 Fault finding/Rectification ........................20 Fault finding with error code ......................21 Fault finding without error code ....................
REFACE Congratulations! In purchasing this new SCHOLL appliance you have chosen a product which meets highest technical stand- ards while providing outstanding convenience in practical use. This appliance has been designed with minimal energy consumption in mind. Used responsibly, it will serve you well in an ecologically sound manner.
GBA Z 0671 2 E ENERAL REMARKS These instructions for use contain information which is fundamentally important and must be taken into account during assembly, operation and maintenance. They must therefore be read very carefully before installation and operation by the responsible specialist staff and the operator(s). They must always be avail- able for consultation at the place of operation.
The induction heat retention units „RTCSmp Install Hold-Line“ are especially suitable as built-in units in closed counters. The heat retention process with this „RTCSmp Install Hold-Line“ unit is especially adjusted to the SCHOLL GN equipment. If other material is used, efficiency and function can be affected in a negative way.

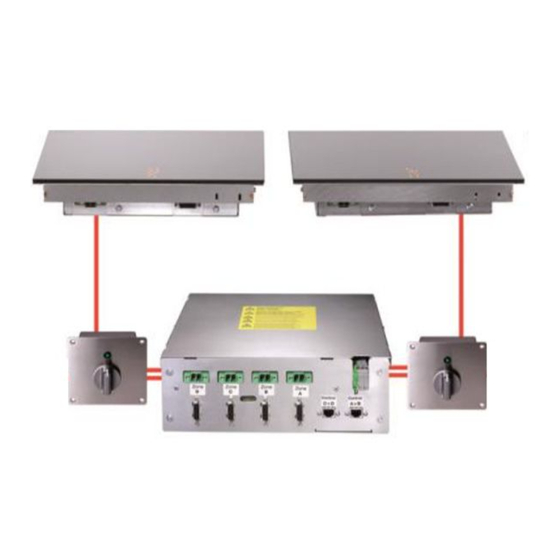

GBA Z 0671 2 E ESCRIPTION OF PRODUCTS COPE OF SUPPLY • Generator • 1 - 2 temperature operation units (with 1 heat retention plate 1 temperature operation unit / with 2 - 4 heat retention plates 2 temperature operation units) •...
GBA Z 0671 2 E NSTALLATION COPE OF DELIVERY The generator is delivered with one to four built-in heat retention plates including glass tops and one to two operating units (with 1 heat retention plate 1 temperature operation unit – with 2 – 4 heat retention plates 2 temperature operation units).
GBA Z 0671 2 E • Make sure that the induction unit does not take in hot ambient air (concerns units standing side by side, or one behind the other, or standing near a frying pan or an oven), otherwise an air duct incl. shackle has to be added.
GBA Z 0671 2 E HO/IN 3200-GN ENERATOR Advice for installation generator: The rear case of the generator is equipped with two holes for the installation. Make sure that the height distance between fan and bottom and the laterial openings for air exit have a distance to obstacles of at least 40mm.
GBA Z 0671 2 E PERATION UNIT WITH POTENTIOMETER Advice for installation operation unit: This unit is supplied completely with an operation unit. In order to fix this on a cover, take the clipping for the power switch into account. The operation control panel has to be fixed vertically on the installation panel.
GBA Z 0671 2 E LECTRICAL INSTALLATION If the voltage is wrong, the induction unit can be CAUTION damaged. The installation of the electricity must be fitted by approved installation contractors in accordance with specific national and local installation in conformity with all safety regulations. The warning signs and rating plates on the units must strictly be followed.
To avoid injuries (burning) do not touch this area. Use exclusively the SCHOLL GN equipment for the RTCSmp Install Hold-Line heat retention unit. • Put some water in the serving pan and place it in the center of the heating area.
The heat retention unit is immediately ready for operation. The shining display indicates that energy is transferred to the bottom of the Chafing Dish or to the bottom of the SCHOLL GN equipment. The tempera- ture rating is set by turning the control knob.
SCHOLL GN equipment. To avoid injuries (burning) do not touch the heating area. • Switch the control knob off if you take the SCHOLL GN equipment away for a while. This will avoid the heat retention process to continue automatically when a serving pan is placed back on the heat- ing area.
The operating reliability of the induction unit can only be guaranteed by careful use. The limit values may not be exceeded on any account. AN DETECTION No power is transferred if no SCHOLL GN equipment is detected. OWER REGULATION The desired temperature is set by turning the rotary switch on the operation unit. Any temperature be- tween 50 and 100°C can be chosen.
GBA Z 0671 2 E UT OF OPERATION If the induction unit is out of operation make sure that the control knob is in the OFF-position. If you do not use the unit for a long period (several days), unplug the unit. Make sure that no liquid can enter into the unit, do not clean the induction unit with a jet of water.
GBA Z 0671 2 E AULT FINDING ECTIFICATION The induction appliance must only be opened by authorized and trained service personnel. Do not open the unit, dangerous electric voltage CAUTION inside. Stop any actions if the heating area (ceran plate) is cracked or broken, the induction unit must be switched off and disconnected from the electric supply.
GBA Z 0671 2 E AULT FINDING WITH ERROR CODE Error-No. Description Troubleshoot Hardware overcurrent or Check the bac material, coil is not connected Check wiring Software overcurrent Check the bac material Heat sink overtemperature Check installation (Airflow) T > 85°C Empty cooking detector, Check sensor unit.
7- segment display is flashing (bottom diameter less than 20cm) equipment (If an error code appears see SCHOLL GN equipment is not in the Move the SCHOLL GN “Fault finding with error code”) center of the heating area (the in-...
Page 23
GBA Z 0671 2 E Fault Possible cause Action to take Heating cycle switches off and Overheated coil, Switch unit off, on within minutes, heating aera overheated remove Chafing Dish or cast iron (after a long operation time) pan and fill water into the pan, Empty cooking, no water in the pan let unit cool down The cooling-system (fan) starts to operate when the ambient temperature in the control area exceeds...
GBA Z 0671 2 E LEANING List with common types of soiling and recommendations how to treat them: Type of soiling Treatment Slight soiling, no burned residues Wipe with a moist cloth (scotch), without cleaning agent Fatty spots Polychrom (sauces, soups, ...) ...
GBA Z 0671 2 E UPPORT A good maintenance of the induction unit requires a regular cleaning, care and servicing. The operator has to ensure, that all components relevant for safety are in perfect working order at all times. The induction unit should be examined at least once a year by an authorized technician. Do not open the induction unit.
GBA Z 0671 2 E ASTE DISPOSAL CONCEPT The symbol on the product or on its packaging indicates that this product may not be treated as household waste. It shall be handed over instead to the applicable collection point for the recycling of elec- trical and electronic equipment.
GBA Z 0671 2 E ARRANTY AND SERVICE 12.1 W ARRANTY CONDITIONS The manufacturer accepts no liability or warranty in the following cases: failure to observe notes and instructions given in the Instructions for Use; use of the product in a manner not conforming to its intended use; ...
7:00 a.m. till 4:00 p.m. Fridays from 7:00 a.m. till 12:15 p.m. Outside these office hours please communicate your requests per e-mail or telefax. Scholl Apparatebau GmbH & Co. KG Zinhainer Weg 4 D-56470 Bad Marienberg / Germany Phone...
