GBA A 0201 1 E
Instructions for Use
Plate warmer
Model-No.
2009
2011
2012
Plate warmer 2009
Scholl Apparatebau GmbH & Co. KG
Zinhainer Weg 4
D–56470 Bad Marienberg/Germany
Phone
+0049 (0) 2661 – 9868-10
Fax
+0049 (0) 2661 – 9868-38 (Service)
Internet
www.scholl-gastro.de
E-mail
info@scholl-gastro.de
BA
Last revised 01-2018
Art. No.
A 0201
A 0302
A 0402

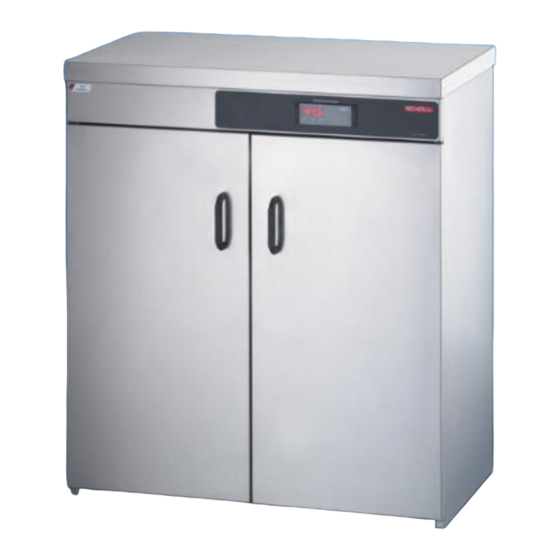

Plate warmer 2011
Page 1 of 23
Januar 18, 2018
Rev. 1
Advertisement
Table of Contents
Related Manuals for Scholl 2009
Summary of Contents for Scholl 2009
- Page 1 A 0201 2011 A 0302 2012 A 0402 Plate warmer 2009 Plate warmer 2011 Scholl Apparatebau GmbH & Co. KG Zinhainer Weg 4 D–56470 Bad Marienberg/Germany Phone +0049 (0) 2661 – 9868-10 +0049 (0) 2661 – 9868-38 (Service) Internet www.scholl-gastro.de E-mail info@scholl-gastro.de...
-
Page 2: Table Of Contents
GBA A 0201 1 E ABLE OF CONTENTS Table of contents ............................... 2 Preface ................................4 Conventions ............................... 5 Pictograms – General safety notes ....................5 Pictograms – Warning notes ......................7 Pictograms – Important notes ......................8 Product information ..........................9 Information regarding compliance with standards, laws and directives ......... - Page 3 Execution ............................18 Dimensioned drawings ........................18 Circuit diagrams ..........................19 8.3.1 Circuit diagram plate warmer 2009, 2011, 2012 ............... 19 Spare parts list ..........................20 Disposal and Environmental Notes ......................21 Disposal of packing material ......................21 Disposal of the appliance ....................... 21 Warranty and service .........................
-
Page 4: Preface
REFACE Congratulations! In purchasing this new SCHOLL appliance you have chosen a product which meets highest technical stand- ards while providing outstanding convenience in practical use. This appliance has been designed with minimal energy consumption in mind. Used responsibly, it will serve you well in an ecologically sound manner. -
Page 5: Conventions
GBA A 0201 1 E ONVENTIONS – G ICTOGRAMS ENERAL SAFETY NOTES Be sure to observe these Instructions for Use as well as the safety notes to prevent injuries or damage to health or property. Do not alter or modify this appliance. Never use a defective appliance. - Page 6 GBA A 0201 1 E Protect this appliance from moisture (water spray, rain). Any penetration of water into the unit will increase the risk of an electrical shock. Do not touch the surfaces of the appliance. The surfaces of this appliance may get hot.
-
Page 7: Pictograms - Warning Notes
GBA A 0201 1 E – W ICTOGRAMS ARNING NOTES Cleaning must only be performed by qualified persons who have read and under- stood these Instructions for Use and are familiar with applicable hygiene rules. En- sure that care is exercised during cleaning of the unit. For light cleaning, wipe down the surface with a cloth or soft brush/sponge soaked in warm water which contains a small amount of dishwashing detergent. -
Page 8: Pictograms - Important Notes
GBA A 0201 1 E – I ICTOGRAMS MPORTANT NOTES DANGER indicates an immediately threatening hazard. Failure to observe this warning notice will result in severe physical injury or death. WARNING indicates a potentially dangerous situation. Failure to observe this warning notice may result in severe physical injury or death. -
Page 9: Product Information
GBA A 0201 1 E RODUCT INFORMATION The plate warmers are used for heating up and keeping plates warm. NFORMATION REGARDING COMPLIANCE WITH STANDARDS LAWS AND DIRECTIVES This appliance conforms to the following: Standards, laws, directives 2014/35/EU Low Voltage Directive 2014/30/EU EMC Directive AFETY... -
Page 10: Packing, Transport, Intermediate Storage, Scope Of Delivery
GBA A 0201 1 E ACKING TRANSPORT INTERMEDIATE STORAGE SCOPE OF DELIVERY ACKING The type of packing employed will depend, to a large extent, on the adopted shipping mode and route. Except where otherwise agreed by contract, packing will conform to the "HPE Packing Guideline" defined by the German Federal Association of the Wooden Materials, Pallets and Export Packing Industry and by the German Engineering Federation. -
Page 11: Installation And Electrical Installation
GBA A 0201 1 E NSTALLATION AND ELECTRICAL INSTALLATION NSTALLATION Before the installation of the appliance, observe the following: Inspect the unit for any defect or damage sustained in transit. Practice: Place the unit at a suitable location. ... -
Page 12: Operation
GBA A 0201 1 E PERATION The plate warmer has a digital temperature controller. The temperature controller switches the plate warmer on and off and sets the temperature PERATION TEMPERATURE CONTROLLER The plate warmer has a digital temperature controller and can be adjusted at temperatures of 30-85°C. Key UP Pressing this key you can increase the parameter or parameter value or scroll the parameter list. -
Page 13: Status Messages Temperature Controller
GBA A 0201 1 E 5.1.1 S TATUS MESSAGES TEMPERATURE CONTROLLER Message Cause Error elimination “AUS” or “OFF” Standby modus, no regulation Switch on with standby key Sensor error, Check sensor short-circuit at sensor Sensor error, Check sensor open-circuit at sensor Buzzer Temperature alarm or sensor error The buzzer function can be switched off... -
Page 14: Maintenance
GBA A 0201 1 E AINTENANCE AINTENANCE AND REPAIR Maintenance and repairs on the appliance must only be carried out by an author- ized professional observing applicable safety regulations. Improperly executed work will put your safety at risk! Before any cleaning, maintenance or repair work is carried out, the appliance must be disconnected from the mains and de-energized. - Page 15 GBA A 0201 1 E Cleaning must only be performed by qualified persons who have read and under- stood these Instructions for Use and are familiar with applicable hygiene rules. En- sure that care is exercised during cleaning of the unit. For light cleaning, wipe down the surface with a cloth or soft brush/sponge soaked in warm water containing a small amount of dishwashing detergent.
-
Page 16: Troubleshooting
GBA A 0201 1 E ROUBLESHOOTING Repairs must be carried out by an authorized specialist in compliance with applica- ble safety codes and regulations. Improperly executed work will put your safety at risk! Note that some work must only be carried out by an electrical specialist. According to DIN EN 60204-1: 2011-01, specialists are „persons who by reason of their relevant training and experience are capable of recognizing risks and avoiding potential hazards."... -
Page 17: Possible Malfunctions
GBA A 0201 1 E OSSIBLE MALFUNCTIONS Malfunction Cause Remedy Appliance does not heat Defective plug/electrical cord DANGER! Hazardous electrical voltage. Pull out the mains plug and bar product from further use. To be remedied by an electrical specialist. Appliance does not heat Heating faulty Exchange heating. -
Page 18: Technical Data
GBA A 0201 1 E ECHNICAL DATA XECUTION Chrome nickel steel 18/10 Model 2009: 1 folding door, left-hinged Model 2011: 2 folding doors Model 2012: 2 folding doors 1 adjustable intermediate shelf optionally available: 1 additional intermediate shelf ... -
Page 19: Circuit Diagrams
GBA A 0201 1 E IRCUIT DIAGRAMS Circuit diagrams are available upon request. 8.3.1 C 2009, 2011, 2012 IRCUIT DIAGRAM PLATE WARMER Model-No. Art.-No. 2009 A 0201 2011 A 0302 2012 A 0402 Key: Temperature controller Temperature sensor Heating Page 19 of 23... -
Page 20: Spare Parts List
GBA A 0201 1 E PARE PARTS LIST Maintenance and repairs on the appliance must only be carried out by an author- ized professional observing applicable safety regulations. Improperly executed work will put your safety at risk! Work at the electrical installation must only be performed by qualified electricians! Component Art. -
Page 21: Disposal And Environmental Notes
GBA A 0201 1 E ISPOSAL AND NVIRONMENTAL OTES The appliance has been packed before shipping to protect it against damage in transit. After unpacking, please dispose of packing materials in an environmentally sound manner. All packing materials are eco-compatible, 100% recyclable and marked with a sym- bol to that effect. -
Page 22: Warranty And Service
GBA A 0201 1 E ARRANTY AND SERVICE 10.1 W ARRANTY CONDITIONS The manufacturer accepts no liability or warranty in the following cases: failure to observe notes and instructions given in the Instructions for Use; use of the product in a manner not conforming to its intended use; ... -
Page 23: Service Address
7:00 a.m. till 4:00 p.m. Fridays from 7:00 a.m. till 12:15 p.m. Outside these office hours please communicate your requests per e-mail or telefax. Scholl Apparatebau GmbH & Co. KG Zinhainer Weg 4 D-56470 Bad Marienberg/Germany Phone 0049 (0)2661/9868-10...
